POSMarket SKU: Z18207

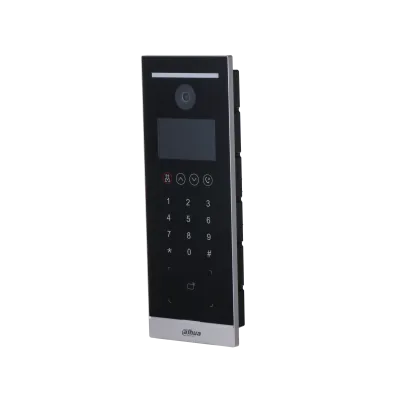

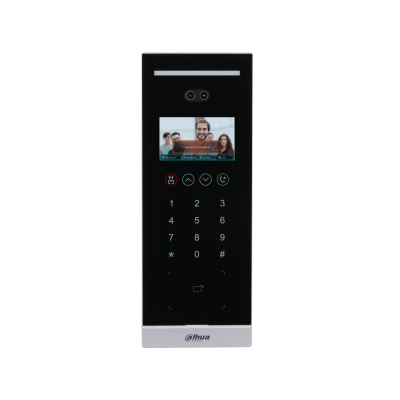

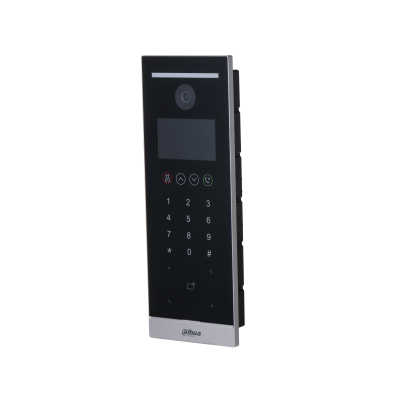

Face Recognition Door Station intercom device
| VTO6531H | |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Network Protocol | SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| ROM | 4GB |
| RAM | 1GB |
| Basic | |
| Display Screen | 4.3 inch IPS screen |
| Resolution | 800×480 |
| Camera | 1/2.7″ 2MP CMOS high definition, low illumination, white illuminator and IR illuminator |
| Field of View | Horizontal: 87.42°; vertical: 46.48 °; diagonal: 104.13° |
| Focal Length | 4.0 mm |
| Aperture | F1.6 |
| WDR | 120dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264 |
| Video Resolution | Main Stream: 720p, sub stream: 1080P |
| Frame Rate | Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps) |
| Video Bit Rate | 256Kbps–2048Kbps |
| Light Compensation | Auto white light Auto IR light |
| Day/Night | ICR auto switch |
| Audio Compression | G.711u |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Full duplex communication |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card/Remote/Password/Face unlock |
| Card Reading Type | IC card |
| Motion Detection | Video motion detection |
| Auto Snapshot | Yes |
| Leave Videos or Text Messages | Yes |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 1cm–5cm |
| Issue Card Locally | Yes |
| Face Recognition Height Range | 1.1m–2.4m is recommended |
| Face Recognition Distance | 0.3m–2cm |
| Face Recognition Configuration | Recognition threshold Facial profile angle |
| Face Verification Accuracy | 99.5% |
| Face Recognition Time | 0.2s |
| Casing Material | PC+ABS |
| Capacity | |
| Card | 10,000 |
| Face Image | 10,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 input port, 1 output port |
| Electric lock | 1 |
| Alarm Input | 2 (Digital quantity) |
| Alarm Output | 2 (Digital quantity) |
| Power Output | 1 12V/100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally open by default |
| Network | 1 RJ-45 10Mbps/100Mbps self-adaptive |
| Alarm | |
| Tamper | Yes |
| General | |
| Unlock Password Mode | User password/public password/duress password |
| Color | Silver |
| Power Supply Mode | DC 12V2A |
| Power Supply | Optional |
| Installation | Surface mount and Flush mount |
| Certification | CE/FCC |
| Accessory | Optional |
| Product Dimensions | 388.5mm×145.5mm×43.5mm (15.30″×5.73″×1.71″) |
| Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 10RH%–90RH% (non-condensing) |
| Operating Altitude | 86kPa–106kPa |
| Power Consumption | ≤5W (standby), ≤18W (working) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.29 kg (2.84 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DHI-VTO6531H | Face Recognition Door Station | $476.44 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DHIVTO6531H Datasheet.pdf | 795KB | Download |
|
Door Station Installation Guide.pdf | 1MB | Download |
|
Digital Door Station Quick Start Guide.pdf | 3MB | Download |
Axis A8105-E
Access Control > Intercoms

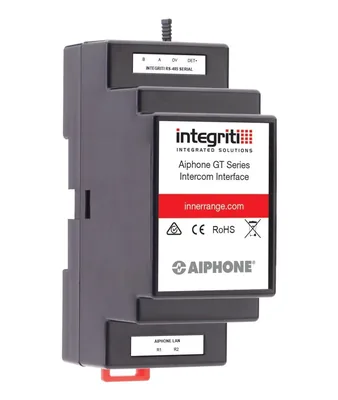

Integriti 994210
Access Control > Intercoms

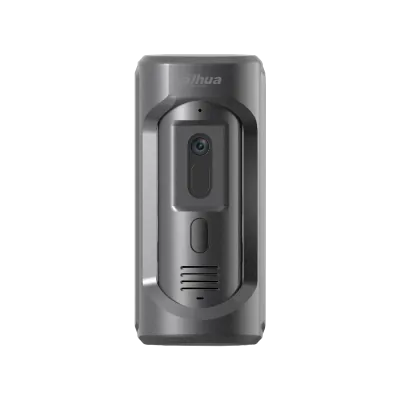

Dahua VTO2101E-P-S1
