Bosch DS160

$179.03 (incl. GST)

POSMarket SKU: Z18082

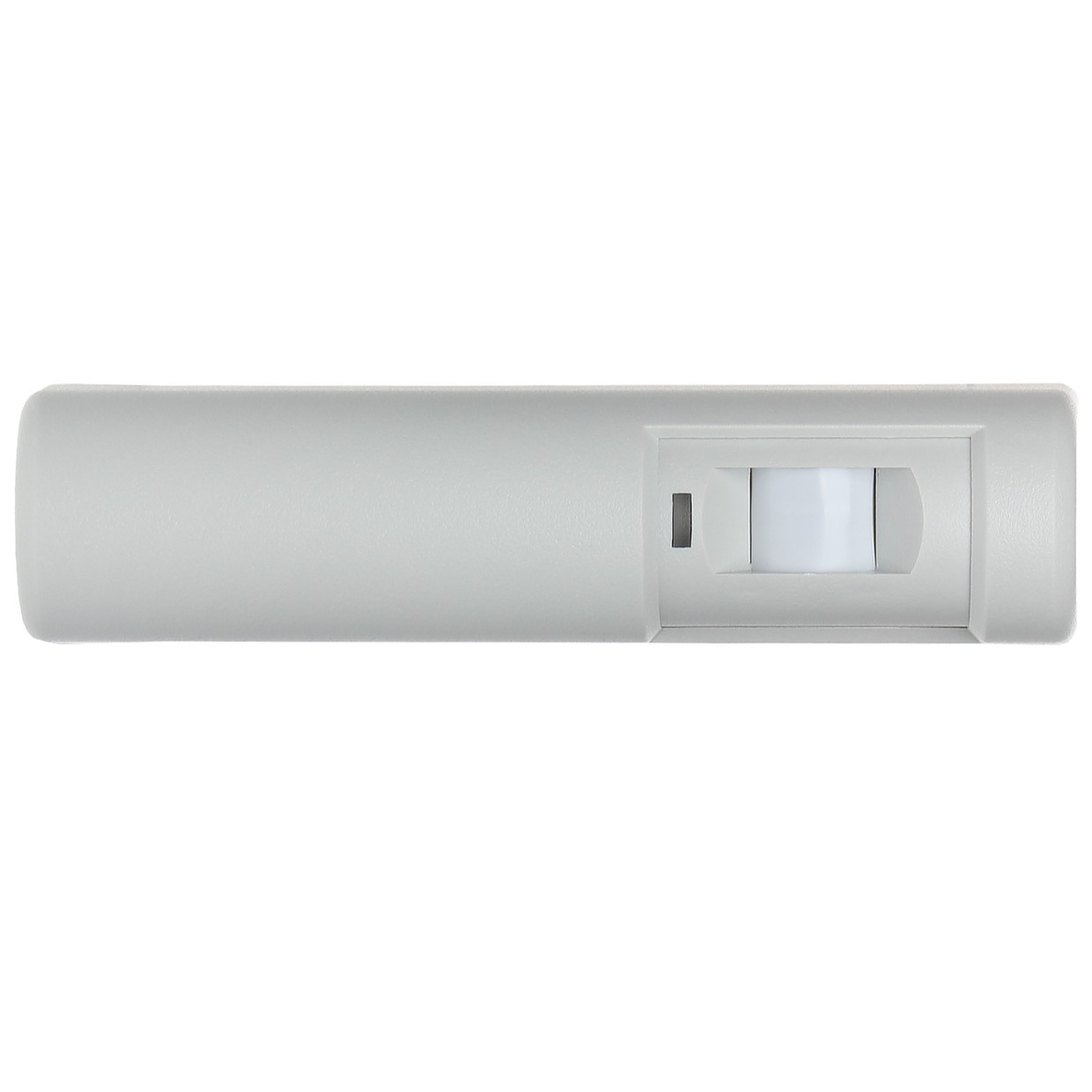

DS160: High Security Request to Exit Detector, Light Grey

High Performance Requesttoexit Detectors Series

Product Rating
Product Overview
The DS160 Series consists of the DS160 Detector (light gray) and the DS161 Detector (black) specifically designed for Request-to-exit (REX) applications. With features such as timers, door monitor with sounder alert, and pointable coverage, the DS160 and DS161 have the flexibility to meet the most stringent REX requirements. The exclusive Sequential Logic Input (SLI) provides added security that is not offered in any other REX device.

Features
  • Single or double door use
  • Wall or ceiling mountable
  • Internal vertical pointability
  • Wrap-around coverage pattern
  • Door monitor with sounder alert
  • Sequential Logic Input (SLI)
  • Up to 64 second adjustable latch time
Product Specifications
Environmental
Operating Temperature -29°C to +49°C (-20°F to +120°F)
For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m
Complies with Environmental Class II (EN50130-5)
Mechanical
Dimensions 4.5 cm x 17.1cm x 4.4 cm (1.80 in. x 6.75 in. x 1.75 in.)
Material High impact ABS plastic enclosure
Modes
Power Loss Default Programmable fail-safe or fail-secure modes.
Timer Programmable reset accumulative or non-reset counting mode.
Electrical
Current Draw 8 mA nominal standby current, 39 mA at 12 VDC in alarm
Voltage 12 VAC or VDC to 30 VAC or VDC
Alarm Output Two Form C relay contacts each rated 1 A at 30 VAC or VDC for resistive loads
Indicators 1 activation LED
Relay Latch Time Adjustable from 0.5 sec to 64 sec.
ModelDescriptionPriceStock
DS160 High Security Request to Exit Detector, Light Grey $179.03
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS160 Datasheet.pdf 637KB Download
