Concept 995083M

$373.45 (incl. GST)

POSMarket SKU: Z16487

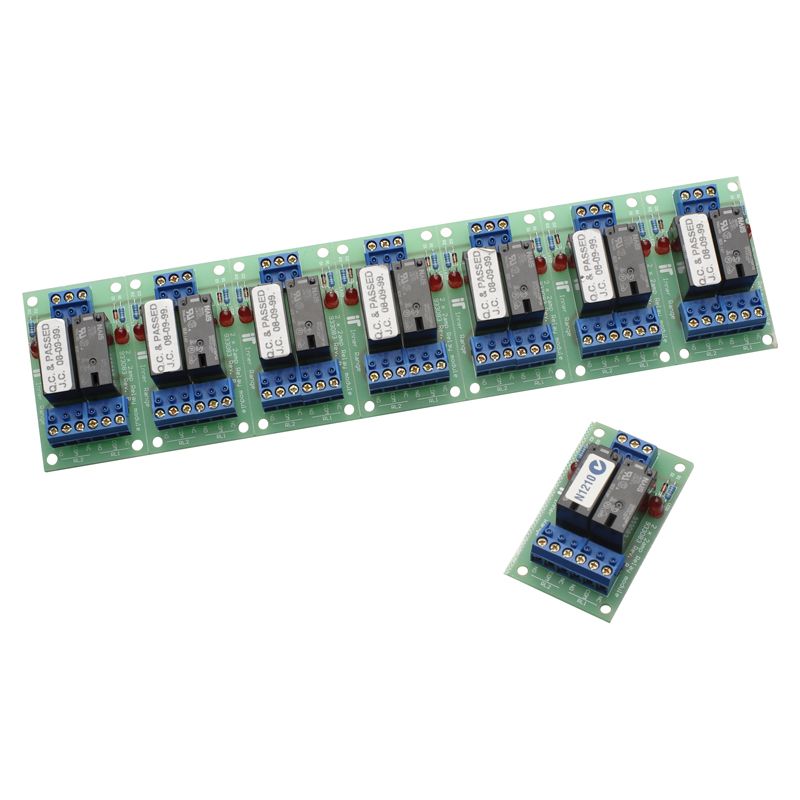

995083M: Dual 10 Amp Passive Relay Board, Connected strip of 8

Passive Relay Cards

Product Rating
Product Overview
The 2 x 10Amp x 8 Relay Board provides low voltage, high current relay outputs, offering a general purpose switching interface. The Relay Board is supplied as a strip of 8 Boards with a common DC Supply connection that can be used complete with all 16 Relays or broken down to the required size. The relays can be switched by any Open collector Auxiliary output capable of switching up to 50mA.

Features
  • 8 Relay outputs
  • Compatible with Concept 3000/4000 Type 0,1, 2 & 2.5 Controllers
  • Compatible with all Universal Expanders
  • Up to four relay cards can be connected to one Universal Expander
  • Options for traditional or “1to1” Aux - Relay Mapping
Need help finding the right part or accessories for your Security access control? Ask us, our expert team has specialised training & experience to help find the right solution for your business. Call 1300 737 998
Product Specifications
Passive Relay Cards
Physical
PCB Dimensions 995083M - 70(W) x 40(L) Single / 70(W) x 320(L)
Strip of 8 (mm)
995085 - 38(W) x 48(L) x 20(H) (mm)
Installation environment 0º to 40ºCelsius 15% to 85%
Relative humidity (non-condensing)
Electrical
Power Supply Input 11V to 14V DC
Current Consumption 995083M - 45mA per relay
995085 - 15mA per relay
Outputs
Contact Rating 995083M - Max. switched current: 10 Amps @ 30VDC (Resistive load)
995085 - Max. switched current: 1 Amp @ 24VDC (Resistive load)
ModelDescriptionPriceStock
995083M Dual 10 Amp Passive Relay Board, Connected strip of 8 $373.45
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Catalogue.pdf 7MB Download
PDF Document 995083M Installation Guide.pdf 27KB Download
