HealthSafe BVBFBAU

from $369.88 (incl. GST)

POSMarket SKU: Z16651

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

DC-powered BluFi with Battery including charger

Product Rating
Product Overview

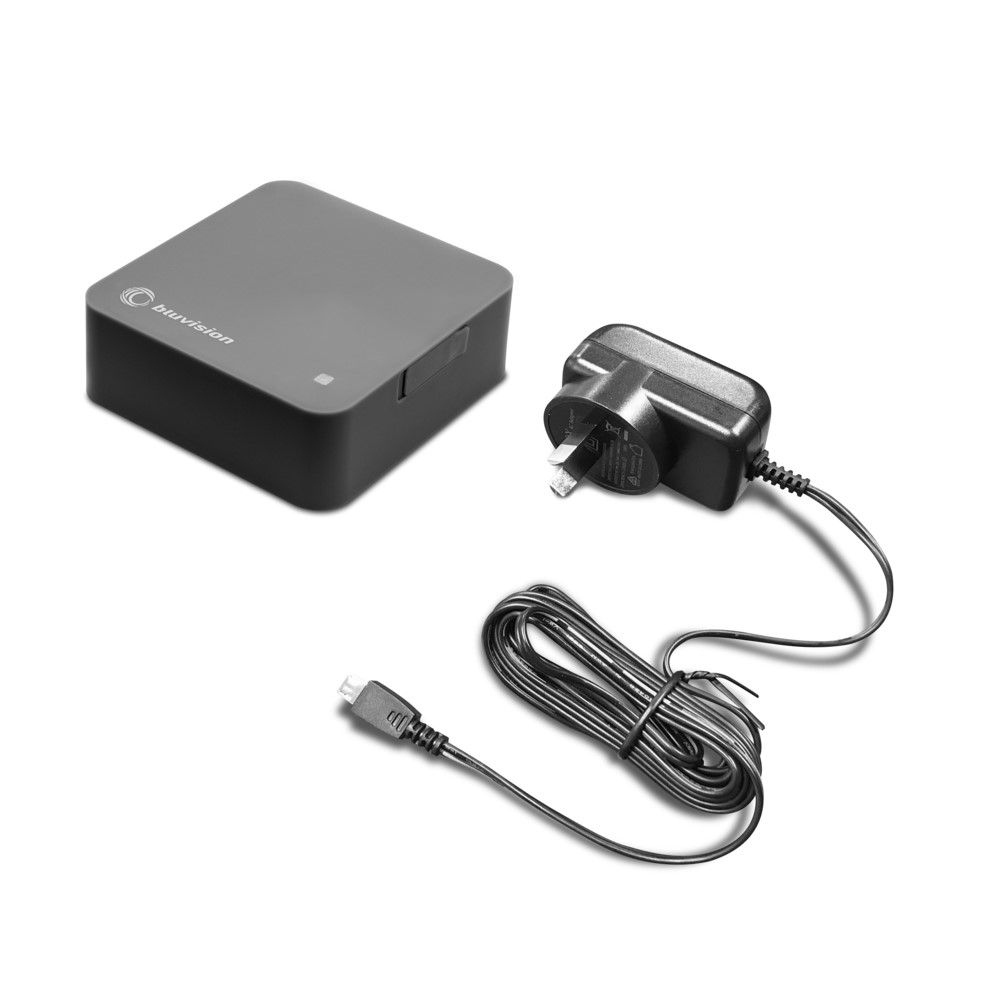

The HealthSafe BluFi-DC00 HID BluVision BluFi, DC powered, Bluetooth Low-Energy (BLE) to WiFi gateway that relays signals between BEEKs Beacons and HealthSafe''s SecurePass Visitor Management Solution. BluFi enable BEEKs beacons to be centrally managed through the cloud, to transfer new messages, firmware updates, sensor data and battery status checks remotely. Their unique design allows BluFi devices and BEEKs beacons to broadcast reliably even in densely populated WiFi environments.

The BluFi DC is battery powered and can be installed in any location making it ideal for temporary setups or a power connection can be done via a USB or directly wired. Optional outdoor housing with solar panel available.

BluFi DC Plenum is a flame resistant, low-voltage DC powered version without battery. Both BluFi DC types are designed to be installed with an optional mounting kit on walls, ceilings or in the plenum. DC power connection can be done via USB or direct wires.

Features
  • Real time location services
  • Eddystone, iBeacon and sBeacon supported
  • Central provisioning or monitoring via BluFi and Bluzone possible
  • Software configurable
  • Battery backed for temporary installations
BluFi devices make it easy and cost efficient to cover an area with BLE to internet connectivity to take advantage of centralized management, real-time condition monitoring or location services with a fraction of the effort required by alternative technologies.
Product Specifications
BluFi-DC00
Base Model Number BVBFBAU(AU)
Electronic
AC Input N/A
AC Plugs / Charge Plug Micro USB or PoE with external adapter. USB charger provided according to P/N
Bluetooth Type Bluetooth Low Energy 4.1
Bluetooth Sensitivity -98dBm
WiFi Type 802.11 b/g/n
WiFi Sensitivity -97.5dBm @ 1DSSS
-88.5dBm @ 11 CCK
WiFi Frequency 2.4 Ghz with coexistence built-in with Bluetooth
Processor Type ARM Cortex M4 and ARM Cortex M3
Memory 256KB Flash (100KB free for custom applications)
Power Consumption 200mA when TX; 20mA on sleep
Length x Width 3.4 x 3.2 x 1.2 in (86.1 x 82.2 x 31.8 mm)
Housing Material Polycarbonate and ABS
Color Gray
Weight 9.3 oz (264 g)
Battery
Type 5V / 10.5Ah - Lithium Ion Rechargeable
Life up to 24h
Cloud
Type Bluzone Cloud - Cloud realtime managed
Data Output to Cloud 0.1 to 1Mbit Up data
Chemical and Mechanical resistance
Water IP67,68° F (20°C), 3.3 ft (1 m) x 1 h
Thermal
Storage -4° to +158° F (-20° to +70°C)
Operating Temperature -4° to +158° F (-20° to +70° C)
Other
Standards FCC/CE; BLE; Wifi 2.4 GHz
Options Outdoor housing with Solar Panel
Box Size 1 pcs.
Warranty 1 year
ModelDescriptionPriceStock
BVBFBAU HID BluVision BluFi DC Powered with Provisioning $508.75
Call
Add to Cart

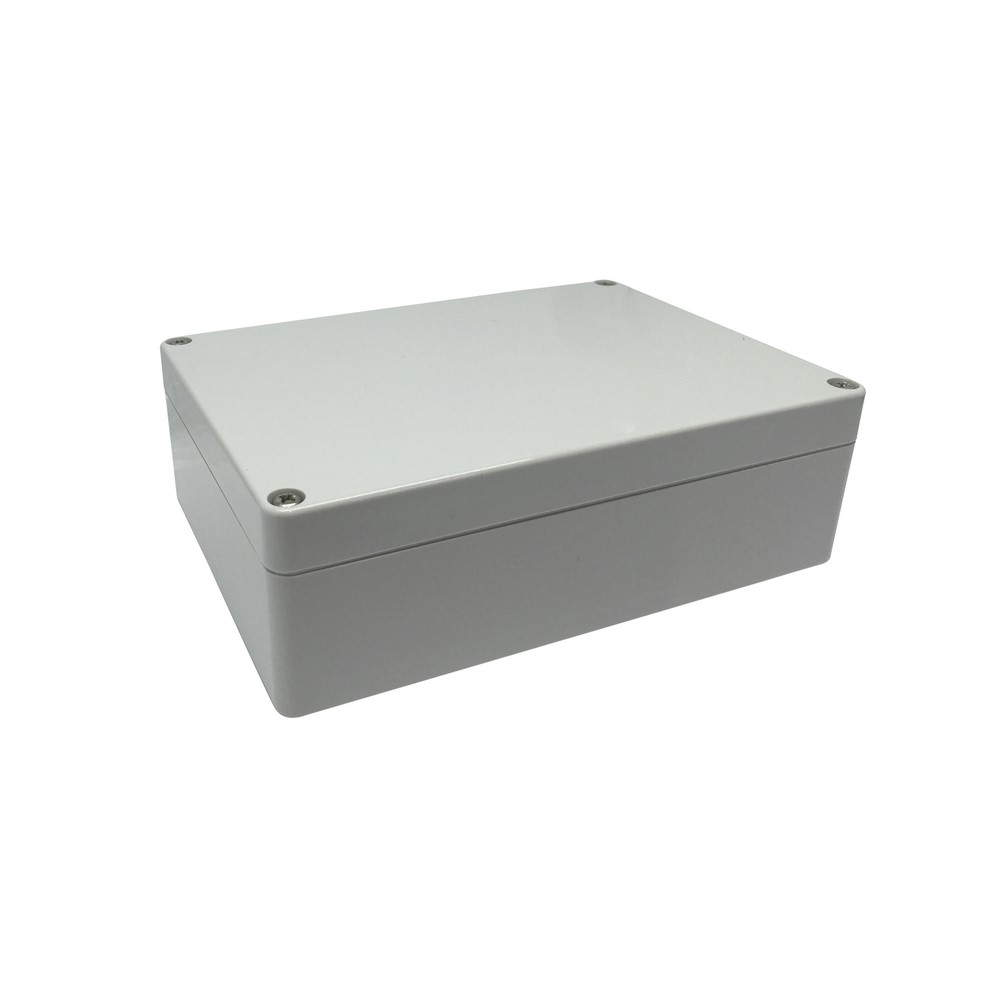

BV-CASE-EXT HID BluVision Exterior Case to suit HS-BV-BLUFI-DC $369.88
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document HID BluVision BluFi DC Datasheet.pdf 463KB Download
PDF Document BluFi BLE WiFi Brochure.pdf 443KB Download
PDF Document HID BluFiDC00 Install Guide.pdf 7MB Download
