LOX Locking DB1260

from $281.05 (incl. GST)

POSMarket SKU: Z17169

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Standard Electromechanical Drop Bolt

Product Rating
Product Overview

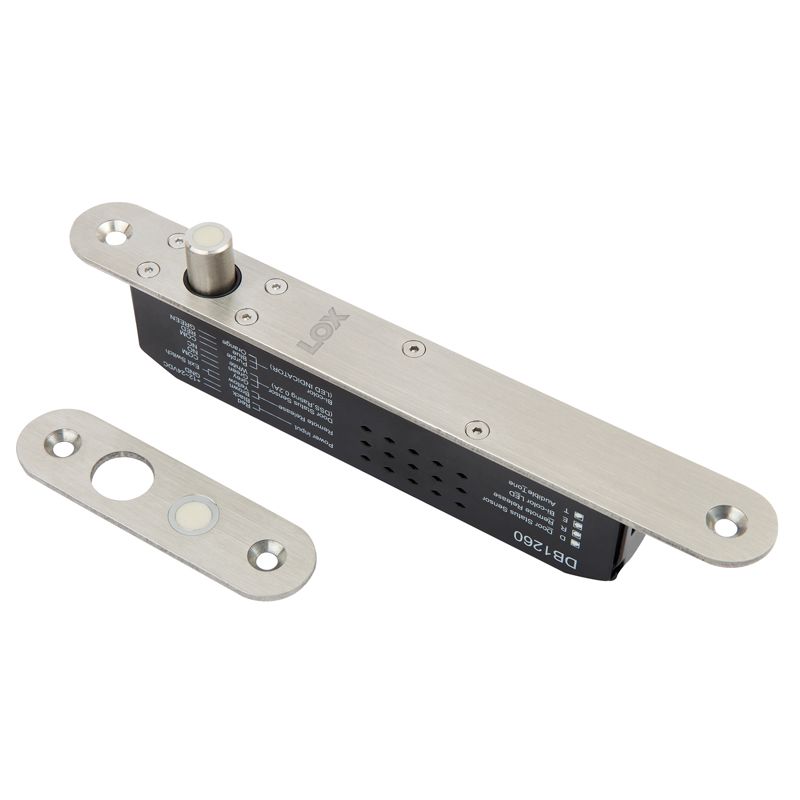

The LOX DB1260 Electric Drop Bolt has been designed to be used on double action (swing through) doors or as an additional locking device in conjunction with an Electric Strike in single door applications.

The DB1260 has a 25mm wide face plate and is therefore applicable on narrow style frame installations. It is available in either "Power to Lock" (Fail Safe) or "Power to Open" (Fail Secure). The DB1260 product range provides several glass-door mounting accessories. We do not recommend using this product on Emergency Egress Door.

Features
  • Internal control circuits protect drop bolt pin
  • from damage
  • Power to Lock or Power to Open version available
  • (to be specified)
  • Auto lock function
  • Built-in varistor (MOV) for surge protection
  • Time delay setting at 0/3/6/10 secs
  • 1 year warranty
Need help finding the right part or accessories for your Security access and control? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998
Product Specifications
Mortise Mount Electric Drop Bolt, narrow style power to lock (Fail Safe) Part / Model Number
DB1260PTL
Mortise Mount Electric Drop Bolt, narrow style power to open (Fail Secure) Part / Model Number
DB1260PTO
General
Holding Strength up to 300KG
Cycles tested to 400.000 cycles
Voltage/ Current
Dual Volatage 12/24VDC
12VDC = 530mA
24VDC = 260mA
Approvals up to 4 hour fire rated to A.S Standard, CE & C-TICK
DSS monitoring door status sensor (Reed switch)
Environmental
Operational temperature range -20°C to 60°C
ModelDescriptionPriceStock
DB1260PTL Drop Bolt, 300kg, Monitored DSS, PTL, Mortice Mount, 12V DC $281.05
Call
 Add to Cart
DB1260PTO Drop Bolt, 300kg, Monitored DSS, PTO, Mortice Mount, 12V D $281.05
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DB1260 Datasheet.pdf 608KB Download
PDF Document DB1260 Manual.pdf 1MB Download
