POSMarket SKU: Z18069
This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

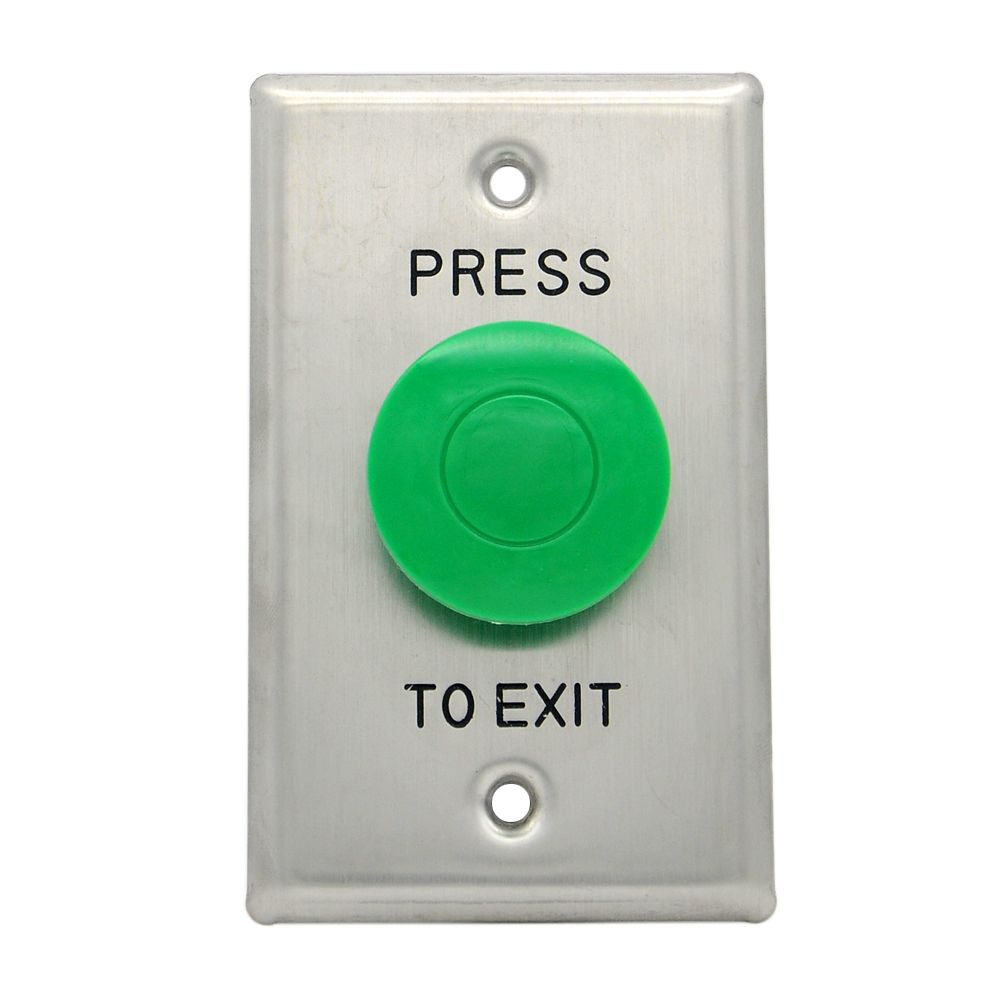

Mechanical momentary push to exit green mushroom button
| Mechanical momentary push to exit green mushroom button | |
| Current (max) | 10A (12 or 24VDC) |
| Current (min) | 5mA |
| Resistance | <=50 mΩ |
| Insulation resistance | >100 MΩ |
| Contact | isolated NC and NO |
| Dimensions | 70 x 115 x 53mm |
| Mushroom head diameter | 40mm |
| Plate | GPO size, stainless steel |
| Wording | PRESS TO EXIT or customisable upon request |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 1102 | Exit Button, Illuminated, DPDT, Std Plate, IP65, Fly Leads | $59.68 | Add to Cart | |

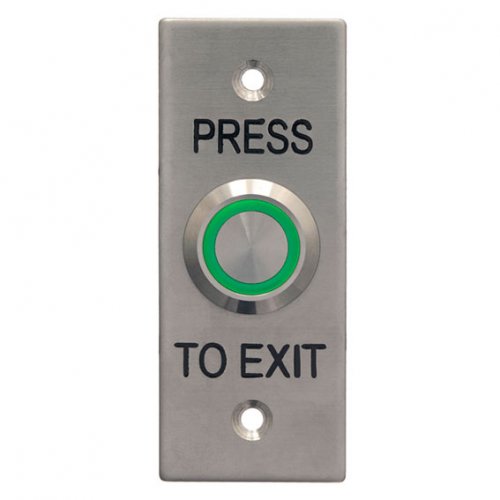

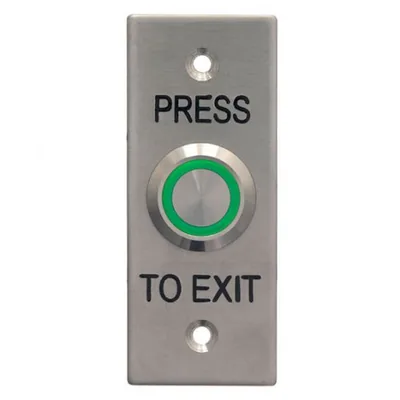

| 1103 | Exit Button, Illuminated, IP65, DPDT, Architrave Plate, Fly Leads | $59.68 | Add to Cart | |
| 1104BLK | REX Mushroom, Black Standard Stainless Plate NO / NC contacts | $44.28 | Add to Cart | |
| 1107 | Exit button, SPDT, Illuminated, green, architrave plate, fly leads | $37.54 | Add to Cart | |
| 1104 | Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary | $31.76 | Add to Cart | |
| 1108 | Exit button, flush mount, illuminated, green, architrave plate, fly leads | $29.84 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
CSD1104 Datasheet.pdf | 369KB | Download |
