Concept 995050AU

from $505.31 (incl. GST)

POSMarket SKU: Z16409

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

LAN Power Supply

Product Rating
Product Overview
The LAN Power Supply is a dual 2A supervised power supply producing 4A nominally split evenly between system power and dedicated battery charging. Up to three additional LAN Power Supplies can be slaved to one LAN Power Supply. Each slave can be configured differently to tailor power output to system requirements. Ganged LAN Power Supplies come into their own in installations where express charging of large back-up battery banks is needed.

The LAN Power Supply connects to the Concept system LAN, communicating status of the supply and is applicable where battery backed 12V supplies are required to power other unpowered Inner Range modules, detectors, readers and auxiliary devices such as strobes, sounders, locks, etc.

Features
  • Dual 2A power supply (2A system power + 2A battery charging)
  • Up to 4 units can be linked in a master / slave layout toprovide 14A dedicated for charging or detector power.
  • Slaves can be configured as:
    • Split (2A power / 2A charging)
    • Charger only
    • Power only
    • Spare
  • Reports status of fault, tamper plus input and output conditions to Control Module via Concept LAN
  • Contains 2 general purpose zone inputs
  • Additional switched 12V output auxiliary with current monitoring for use with satellite sirens
  • 12V auxiliary can be used as 12V power source for strobes,
  • 12V lamps when current monitoring switched off
    • LAN Power Supply
  • Dual 2A power supply (2A system power + 2A battery charging)
  • Up to 4 units can be linked in a master / slave layout to provide up to 14A dedicated to charging or detector power
  • Reports status of fault, tamper plus input and output conditions to Control Module via Concept LAN
  • Contains 2 general purpose zone inputs
  • 240V AC @ 500mA mains input
  • 16-18V AC input to PCB
Product Specifications
LAN Power Supply
Physical
Cabinet Dimensions 325(L) x 250(W) x 112(D) (mm)
PCB Dimensions 200(L) x 95(W) x 40(D) (mm)
Installation Environment 0° – 40°C @ 15% to 85% Relative humidity (non-condensing)
Weight 8kg (including mains transformer, battery and cover)
Cabinet Battery Bracket To suit 12V, 7AH Sealed Lead Acid Battery
Electrical PCB versions; Transformer Versions
Mains Input Voltage N/A; 240VAC 50Hz
Mains Input Current N/A; 500mA
Input Voltage to PCB 16-18VAC; 16-18VAC
Current Consumption
Total Current Limit 4A;4A
Available current for battery charging 2A*; 2A*
Available Current (for detectors, auxiliaries, relays, etc). 2A*; 2A*
*Slaved LAN Power Supply units can be configured to deliver 4A of battery charging current but no detector power or vice-versa.
Power Supply Output
Output Voltage 13.75VDC +/-2% up to 4A
Maximum Output Current 4A (combined current from DET+, LAN+, BAT+ and auxiliaries)
Output Ripple 100mV RMS maximum @ Iout=2A
Switching Frequency ~50kHz
Load Regulation +/-100mV @ Iout=0.1A to 4A
Conversion Efficiency ~80%
Battery
Battery Capacity (per 2A supply) 12V 7AH Sealed Lead Acid Battery (no slaves connected)
Battery Input Fuse 5A
Output Protection
DET+ Fuse 5A
LAN+ Fuse 5A
AUX2 Fuse 5A
ModelDescriptionPriceStock

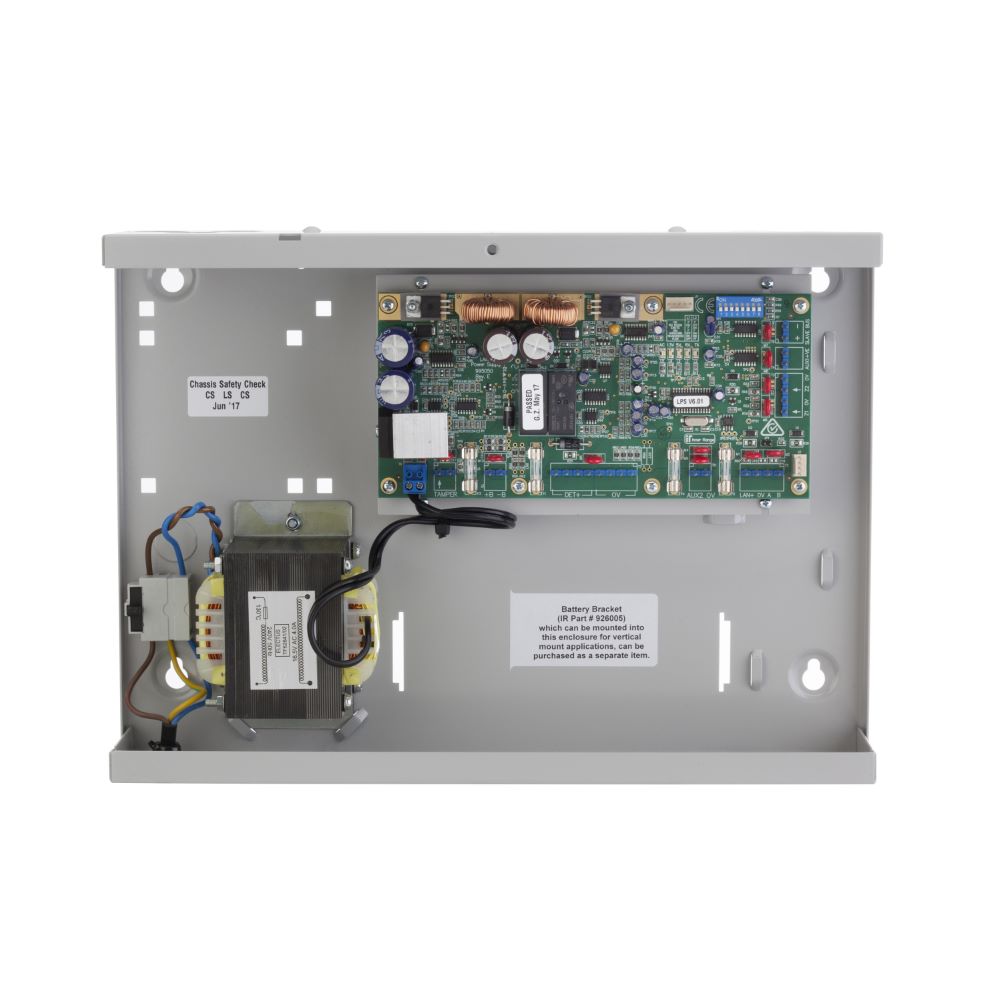

995050AU LAN Power Supply in Small Metal Enclosure $590.01
Call
 Add to Cart

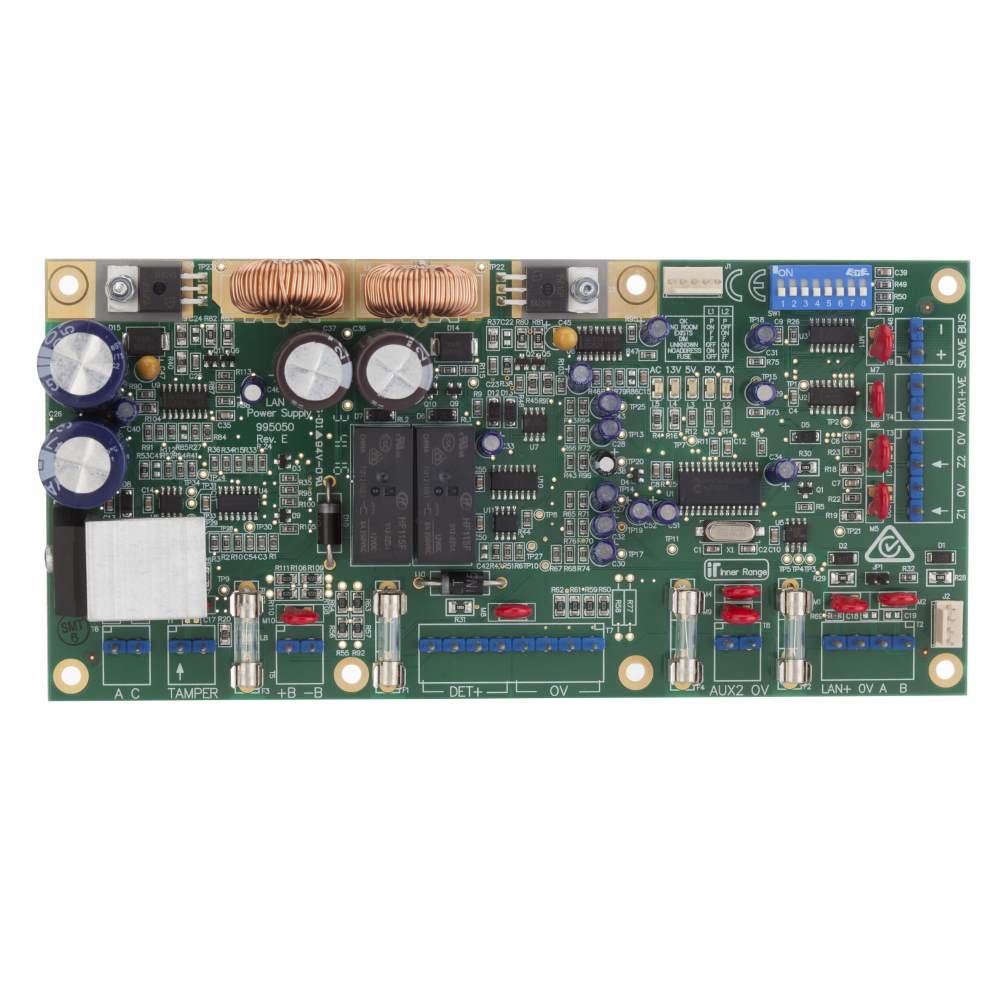

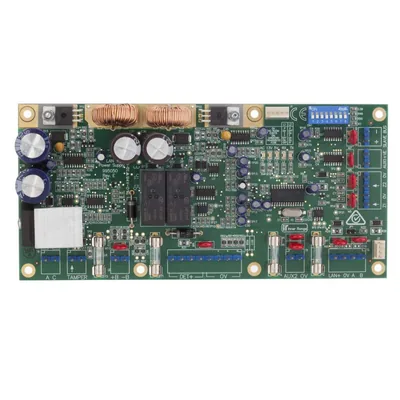

995050PCB LAN Power Supply PCB and Accessories Kit $505.31
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 995050 Datasheet.pdf 257KB Download
