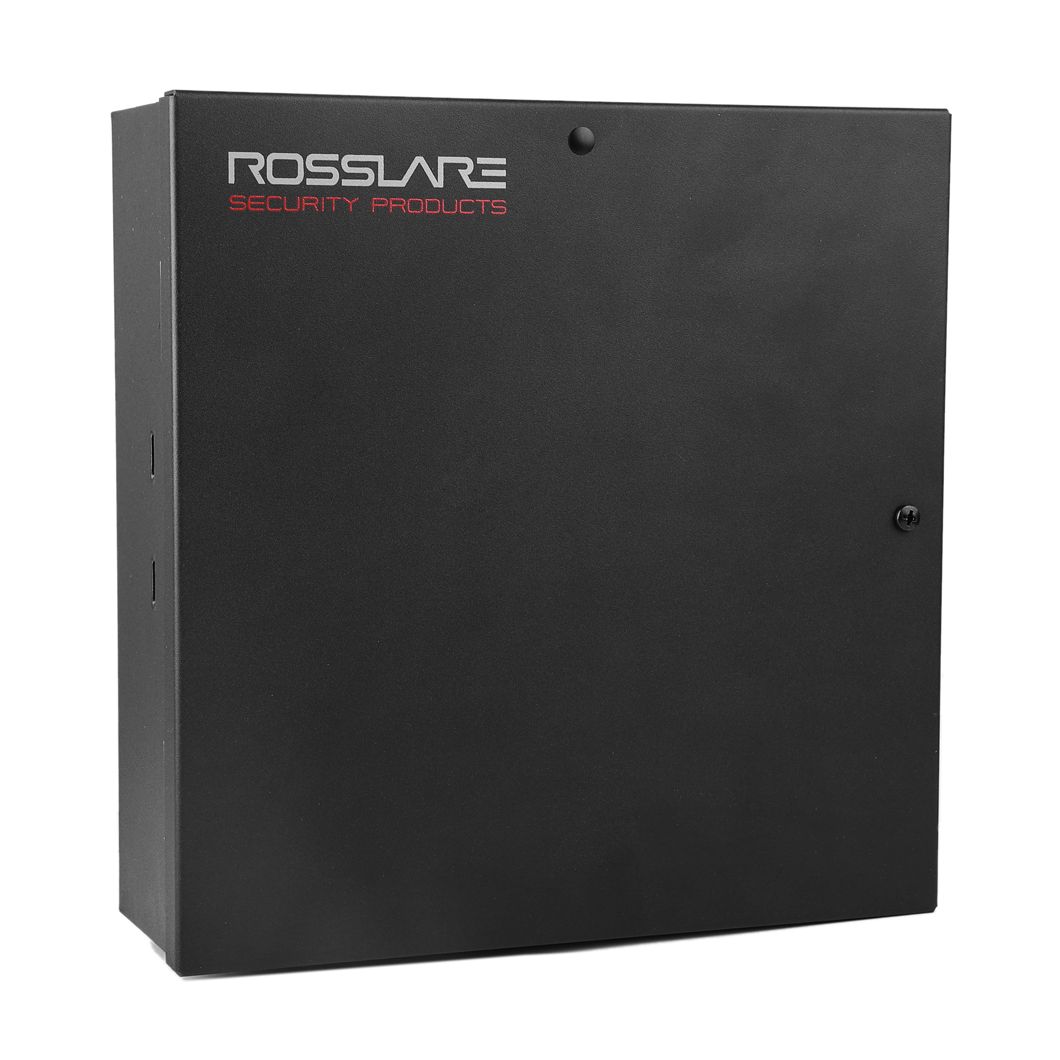

Rosslare PS-C25TB

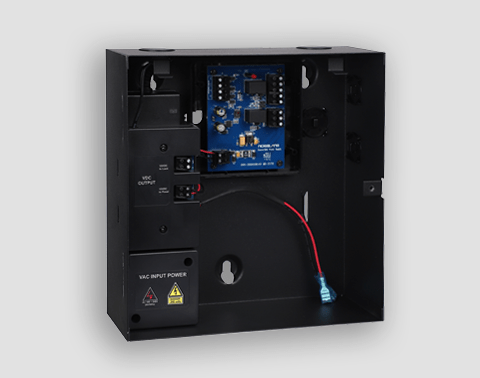

The PS-C25TB is a Power Management Enclosure for use with Rosslare's Secure Stand-Alone Controller Unit. It is a combination of the ME-0515M Multipurpose Power Management Enclosure and the MD-25TB Secure Relay I/O Module preassembled for installation convenience. The secure relay provides power to the Controller Unit. The Controller Unit communicates with the secure module through a Rosslare proprietary protocol, providing instructions to activate the lock/auxiliary relays and a built-in sounder (with bell and siren tones).

The secure module also communicates the REX input status to the Controller Unit. A red LED indicates the secure module power status. The secure module includes removable terminal blocks for ease of wiring and installation.

The enclosure features a switch-mode power supply (SMPS) that outputs power to the PM-05 power management module. The PM-05 power management module has two independent power channels with an isolated PTC (self-resetting fuse). One channel powers the MD-25TB while the other channel may be used to power a lock. Battery backup is available. When AC power fails, the PM-05 instantaneously (UPS) switches power over to a stand-by sealed lead acid (SLA) battery (not included) charged by a built-in battery charger. A low battery cutoff prevents batteries from deep discharge.

Features

• Compatible with Rosslare AYC readers and keypads
• 2x relay outputs (1x for a door, 1x for an auxiliary)
• Includes ME-0515M power supply and MD-25TB secure I/O module
• Enclosure to fit standard 12V 7Ah lead acid batteries
• Preventative deep discharge circuitry
• C14 inlet plug
• C13 AC cable
• Enclosure lock
