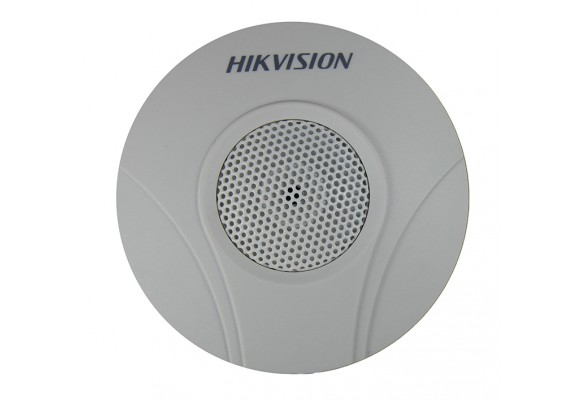

Model | DS-2FP2020 |
Parameters | HI-FI Microphone for CCTV |
Pickup range | 70 sq.m |
Audio transmission distance | 3000m |
Sensitivity | -34dB |
Frequency response | 20 Hz to 20 kHz |
Directivity characteristics | Omnidirectional |
SNR 60dB | 60 dB (1 m 40 dB audio tone SPL), 40 dB (10 m 40 dB audio tone SPL), 1 kHz at 1 Pa |
Dynamic Range | 70dB(1KHz at Max dB SPL) |
Maximum sound pressure | 100dB SPL (1 kHz, THD 1%) |
Output impedance | 600 ohm unbalanced |
Output signal amplitude | 2.5Vpp/-25dB |
Microphones | Capacitor microphone diaphragm |
The signal processing circuit | ANC ambient noise cancellation technology |
Protective Circui | t 30KV Air contact ESD, lightning protection, reverse polarity protection; |
Drive Capability | Built-in pre-amplifier circuit can directly drive headphones; |
Model | Description | Price | Stock | |
---|---|---|---|---|
DS-2FP2020 | Hikvision Hi-Fi Microphone for CCTV | $61.22 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
DS2FP2020 Datasheet.pdf | 201KB | Download |
