SEE Security CMH01
POSMarket SKU: Z15874
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Corner mount high security enclosures.
Product Overview

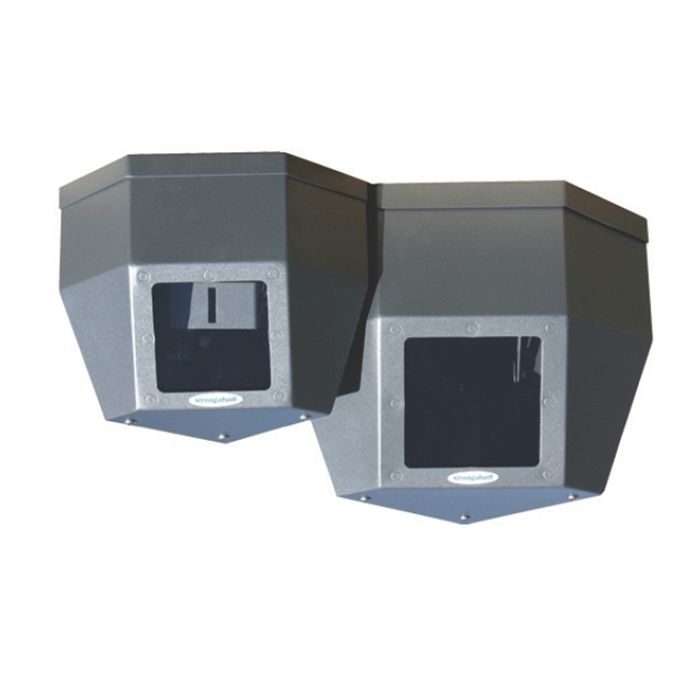

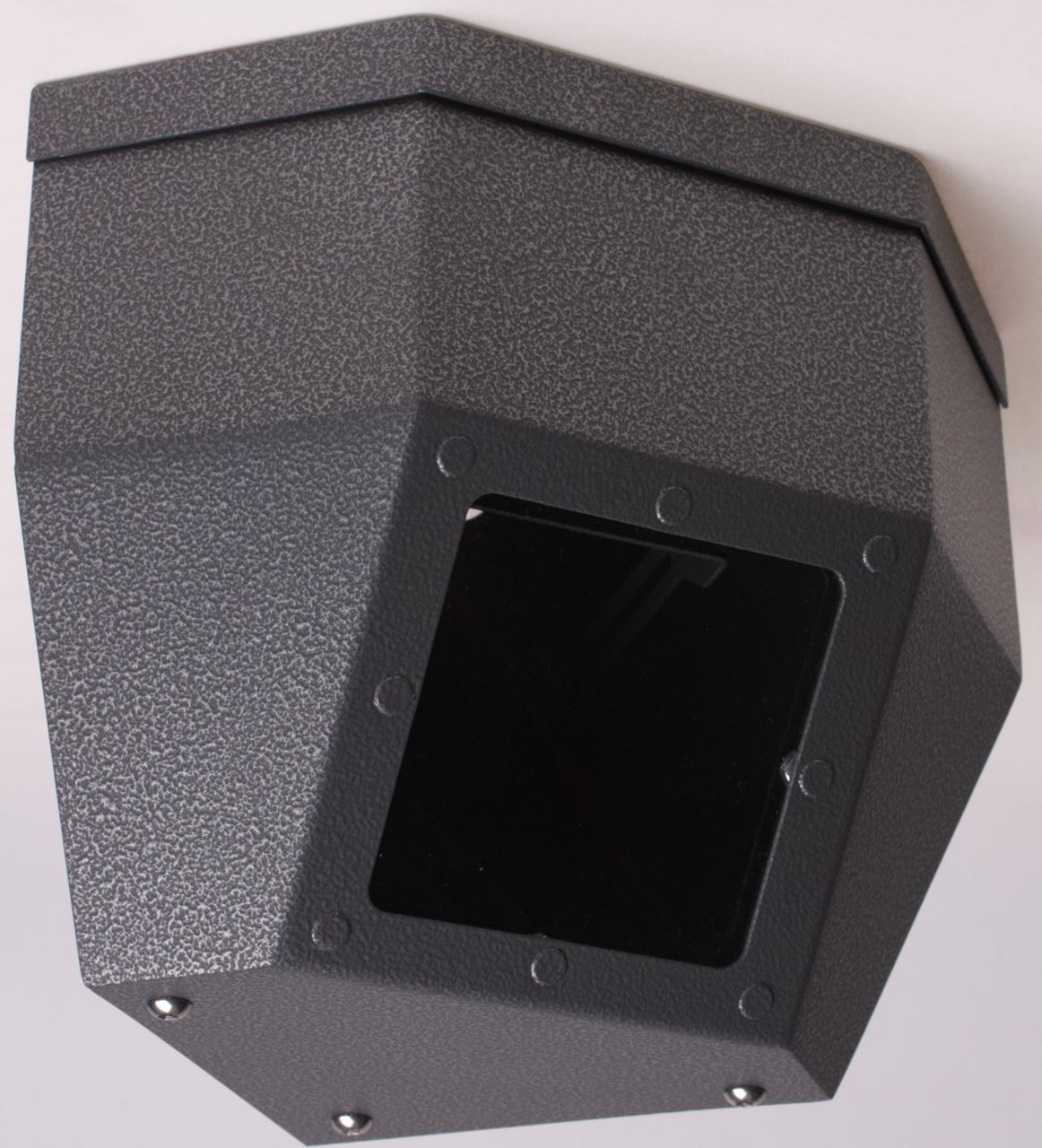

CMH01 & CMH02 enclosures are compact body corner mount enclosures taking up less space than triangular housings that enclose similar sized cameras. The CMH02WM (wall mount) model has been designed for this range to meet the demand for similar enclosures that mount to walls up against the ceiling. The CMH02SS is a polished stainless steel version of the standard enclosure, often selected for use in elevators and applications where the finish suits the environment. The CMH01 is sized for compact cameras eg: Watec and Elmo whereas the CMH02 is designed to suit standard and larger camera and lens combinations such as Panasonic, Sony and Ikegami.
Options
All housings are supplied with adjustable camera mounts. Tamper switches are available for all models as an optional extra.
Applications
Correctional services housings designed for indoor and outdoor yards.
Product Specifications
| CMH01 | |
| Construction | 1.6mm zinc anneal |
| Finish | Graphite ripple polyester powder coat |
| Lens | 6.0mm polycarbonate lens |
| Access | 3xM6 post cap security screws |
| Weight | 2.85kg |
| CMH02 | |
| Construction | 1.6mm zinc anneal |
| Finish | Graphite ripple polyester powder coat |
| Lens | 6.0mm polycarbonate lens |
| Cable Entry | 4x20mm entries, two at the rear and 1 either side |
| Access | 3xM6 post cap security screws |
| Maximum Camera Size | 190mm dependant on view required |
| Weight | 4.5kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| CMH02 | Compact Corner Mount High Security Housing, Max Camera Size 190mm | $620.24 | Add to Cart | |
| CMH01 | Compact Corner Mount High Security Housing, Max Camera Size 150mm | $530.15 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
CMH Series Data Sheet.pdf | 366KB | Download |
