Axis T90D25

$1,090.65 (incl. GST)

POSMarket SKU: Z15164

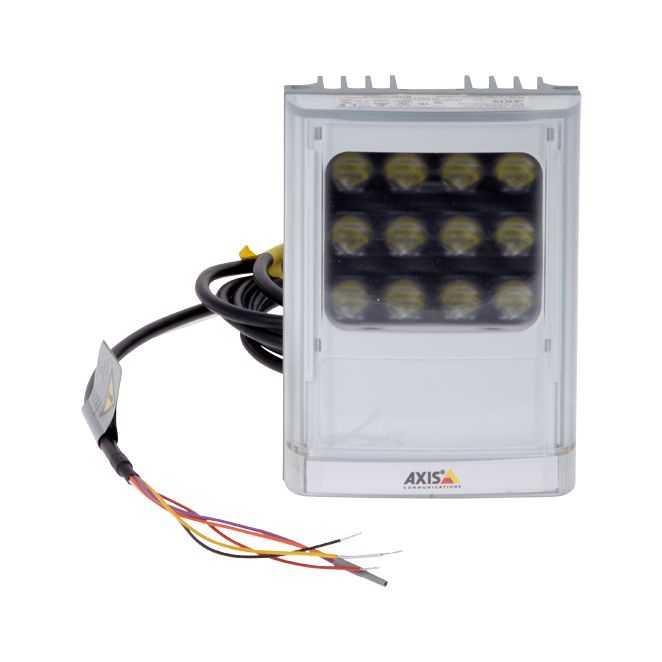

01215-001: T90D25 W-LED Illuminator AC/DC to suit Network Cameras, Interchangeable Lenses

Axis' W-LED Illuminator AC/DC that offers high-performance with ease of installation

Product Rating
Product Overview
Based on the latest LED technology, the Axis T90D25 W-LED Illuminato/ AXIS-01215-001 delivers more light where it is needed. It generates longer white LED illumination distance, minimises light wastage, and prevents overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be modified to match your network camera's field of view. This illuminator enhances potential energy savings thanks to integrated green features, such as power adjust and telemetry control.

The Axis T90D25 W-LED Illuminator enhances potential energy savings thanks to integrated green features, such as power adjust and telemetry control. The illuminator can easily be installed on different mounts, for walls or poles.

FEATURES
  • Low power consumption
  • > Flexible angle of illumination
  • > Easy setup by remote control
  • > Choice of AC/DC or PoE power input
  • > Various mounting options
Product Specifications
T90D25 White LED Illuminator (AC/DC Power)
Compatibility Axis Network Cameras
Type 6000 K
Luminous Power: 1863 Lumens
IR Range With Standard Lens 10 x 10°:361' / 110 m
With Diverging Lens 35 x 10°: 213' / 65 m
With Diverging Lens 60 x 25°: 115' / 35 m
With Diverging Lens 80 x 30°: 82' / 25 m
With Optional Diverging Lens 120 x 50°: 59' / 18 m
Angle Without Diverging Lenses: 10°
With Diverging Lenses: 35, 60, 80, and 120°
Control Technology Through Integrated Push Buttons or Remote Control
Power Level, Photocell Sensitivity, Telemetry Link for Remote Activation, and Timer
Power Power Input: 12 to 24 VAC/VDC
AC Frequency: 50 to 60 Hz
Maximum Light: 24 W
Standby Mode: 0.3 W
Casing Aluminum and Polycarbonate
Mounting Options Wall, Ceiling, Pole, and Fixed Box Camera Housing
Operating Temperature -28 to 122°F / -50 to 50°C
Storage Temperature -28 to 158°F / -50 to 70°C
Operating Humidity 10 to 100% RH
Dimensions 4.0 x 5.0 x 2.5" / 100 x 135 x 66 mm
Cable Length: 8.2' / 2.5 m
Weight 2.11 lb / 950 g
ModelDescriptionPriceStock
01215-001 T90D25 W-LED Illuminator AC/DC to suit Network Cameras, Interchangeable Lenses $1,090.65
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document T90D25 Data Sheet.pdf 740KB Download
PDF Document T90D Series user manual.pdf 226KB Download
