Hikvision DS-1100KI

$2,231.46 (incl. GST)

POSMarket SKU: Z14439

DS-1100KI: Hikvision Security Keyboard Joystick, 7" touch screen, controls PTZ, DVRs, NVRs

Security Keyboard Joystick Network Keyboard

Product Rating
Product Overview
The Hikvision's DS-1100KI Network Keyboard is compatible with Hikvision NVRs, DVRs, video encoders and IP cameras. It is capable of the switching and controlling of the video outputted from the video matrix system and the multi-channel video decoder, as well as PTZ control of the connected camera over network.

Features
  • 7" TFT touch screen at 800 480 resolution;
  • 4-axis joystick;
  • Live view and playback of video on screen at up to 1080P resolution;
  • Compatible with NVR/DVR/DVS, matrix, network camera/dome, video wall controller, etc.
  • Macro command operation;
  • Display of decoded video on monitor or video wall;
  • Shortcut keys for dome control, setting and calling of preset, patrol and pattern;
  • Shortcut keys for playback operation;
  • Shortcut keys for input group and output group;
  • Shortcut keys for wiper and light control operation;
  • 1-channel video decoding for local live view;
  • Video capture and recording to local U-flash disk;
  • Support 3 operators, and each user is allowed to operate 1280 devices;
  • Support configuration by WEB server;
  • Support configuration by the Keyboard Configuration Tool;
  • Configuration and control of the MVC system;
  • Support control of the analog matrix with the protocol of ZT-1.0, ZT-2.0, EXTRON or CREATOR;
  • Control of up to 255 analog domes by RS-485 connection;
  • Accessible by the platform software.
Product Specifications
Model DS-1100KI
Control Mode IP-based
TFT LCD Panel 7" TFT LCD monitor with touch panel
Resolution: 800 x 480
Joystick 4-axis joystick
Audio
Input / Output
Line In 1-ch 3.5 mm connector (2.0 Vp-p, 1 kΩ)
Audio Out 1-ch, 3.5 mm connector (Linear, 560 Ω)

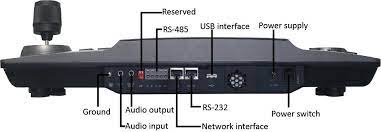

External Interface
Network Interface 1 10M/100M/1000M Ethernet interface
RS-232 Interface 1 RS-232 interface
RS-485 Interface 1 RS-485 interface
USB Interface 1, USB2.0 (for data storage and device upgrade)
General
Power Supply 12 VDC
Power Consumption ≤ 15W
Working Temperature -10°C to +55°C (14 ºF to 131º F)
Working Humidity 10% to 90%
Dimensions 435× 193 × 110 mm (17.1" × 7.6" × 4.3")
Weight 2 Kg (4.4 lb)
ModelDescriptionPriceStock
DS-1100KI Hikvision Security Keyboard Joystick, 7" touch screen, controls PTZ, DVRs, NVRs $2,231.46
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS1100KI Datsheet.pdf 571KB Download
PDF Document DS1100KI Quick Start Guide.PDF 2MB Download
PDF Document DS1100KI User Manual.pdf 3MB Download
