Honeywell EXTERNAL REWINDER 4IN 220V DMXREW1 EU

$1,132.18 (incl. GST)

POSMarket SKU: Z20085

DPO78-2394-02: DMXREW1 DPO78-2394-01 External Rewinder (For use with any Label Printer). Rewinds labels up to 4.5 inches wide. Includes power supply part# DPO50-2051-01

Honeywell DMXREW1 DPO78-2394-01 External Rewinder (For use with any Label Printer). Rewinds labels up to 4.5 inches wide. Includes power supply part# DPO50-2051-01.

Product Rating
Product Overview

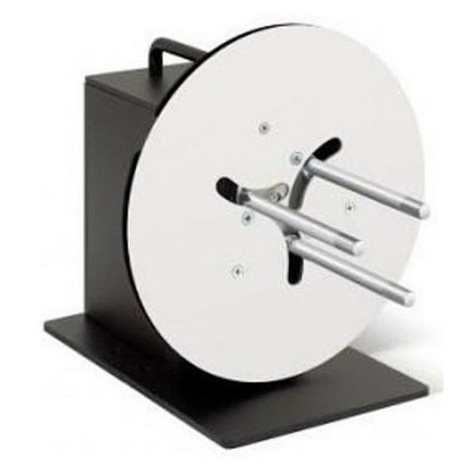

Honeywell DMXREW1 DPO78-2394-01 Label Rewinder/ Unwinder. Supports up to 4.5'' Label Width.

The Honeywell DPO78-2394-01 External Rewinder is capable of rewinding or dispensing label rolls up to 4 inches wide, up to 8 inches in diameter at speeds up to 10 ips (inches per second). The DMXREW1 has a precision-crafted Adjustable Core Holder that adjusts in seconds to accept any core diameter from 1 inch to 4 inches (25 to 102mm). You can also do coreless rewinding with the DMXREW1.

The Honeywell DMXREW1 uses Constant Adjustable Torque technology to achieve impressive, reliable performance at an unprecedented low price. A special motor, designed specifically for the DMXREW1, offers bi-directional operation and trouble-free performance. A switch conveniently controls the amount of rewind force. No awkward tensioning arms, troublesome belts, or clutches are used and no speed adjustments are required. Your DMXREW1 automatically adjusts to any printer speed up to 10 ips and even automatically allows label back-feeding if your printer requires it.

The Honeywell DMXREW1 has an inner label flange to keep the edge of the label web aligned as the labels are being rewound.

Rugged steel construction allows your DMXREW1 to simply be set in place near your label printer. Special anti-slip feet prevent the unit from moving.
Product Specifications
MANUFACTURERHONEYWELL
MODELDMXREW1
DESCRIPTIONREW1 for 1" to 4" cores (25 to 100 mm)
LABEL WIDTHUp to 4.5-inches (113 mm). Maximum Label
Roll Weight8.5 lbs. (3.9 kg)
ROLL DIAMETER8'' (200mm)
MAX SPEED15 ips (380mm/sec.)
LABEL ROLL DIAMETERUp to 8-inches (200 mm)
CORE DIAMETERUse any cardboard core from 1- to 4-inches (25 to102mm) in diameter
SPEEDUp to 15 ips (380 mm/sec). Switch adjustable rewind force. No speed adjustments are required
START/STOPConvenient ON-OFF switch
DIRECTIONBi-directional
POWER REQUIREMENTS120vac 60Hz. UL / CSA or 220vac 50 Hz. CE Listed Power Supplies
DIMENSIONS9H x 6W x 11D'' (229 x 152 x 279 mm).
Weight13 lbs. (5.9 kg)
WARRANTY1 Year
ModelDescriptionPriceStock
DPO78-2394-02 DMXREW1 DPO78-2394-01 External Rewinder (For use with any Label Printer). Rewinds labels up to 4.5 inches wide. Includes power supply part# DPO50-2051-01 $1,132.18
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DMXREW1 Rewinder Spec Sheet 16KB Download
PDF Document DMXREW1 DMXREW2 Brochure 923KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Contact our Team
Warehouse Locations
Warehouse Locations
NSW
  • Huntingwood 2148
  • Rosehill 2142
  • Rydalmere 2116

QLD
  • Acacia Ridge 4110
  • Tingalpa 4173

VIC
  • Box Hill 3128

WA
  • Burswood 6100

Related Products

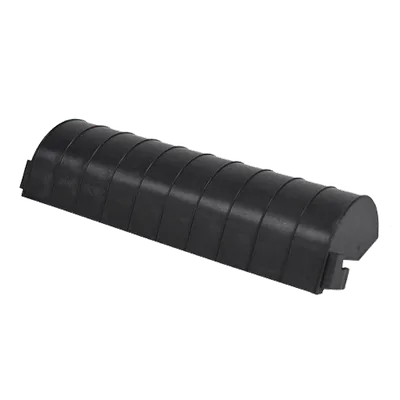

Citizen JN24214-03F Citizen JN24214-03F

Accessories > Label Printer

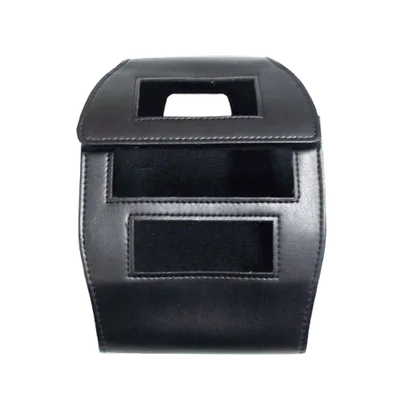

Citizen SC30-01 Citizen SC30-01

Accessories > Label Printer

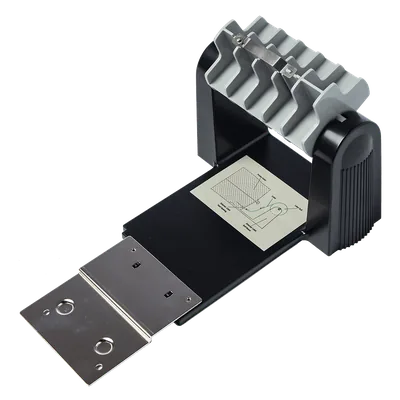

Brother PA-RH-001 Brother PA-RH-001
