POSMarket SKU: Z15573
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

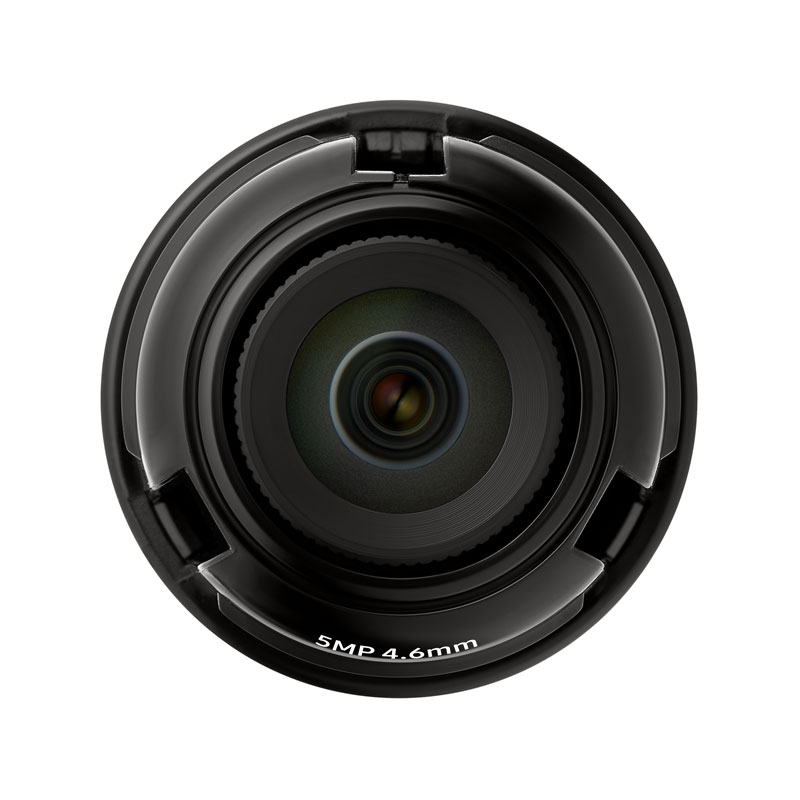

5MP Sensor Module & Fixed Lens for PNM-9000VQ
| SLA-5M3700Q | SLA-5M4600Q | SLA-5M7000Q | |
| Video | |||
| Sensor | 1/1.8" 5 MP Progressive Scan CMOS | 1/1.8" 5 MP Progressive Scan CMOS | 1/1.8" 5 MP Progressive Scan CMOS |
| Total Pixels | 3096 x 2094) | 3096 x 2094 | 3096 x 2094 |
| Effective Pixels | 2616 x 1976 | 2616 x 1976 | 2616 x 1976 |
| Minimum Illumination | At f/2.0, 1/30 Sec, 30 IRE: Color: 0.055 Lux B&W: 0.055 Lux | At f/2.0, 1/30 Sec, 30 IRE: Color: 0.16 Lux B&W: 0.16 Lux | At f/2.0, 1/30 Sec, 30 IRE: Color: 0.16 Lux B&W: 0.16 Lux |
| S/N Ratio | 50 dB | 50 dB | 50 dB |
| Wide Dynamic Range | 120 dB | 120 dB | 120 dB |
| Day & Night | Electrical | Electrical | Electrical |
| Lens | |||
| Focal Length | 3.7mm, Fixed | 4.6mm, Fixed | 7mm, Fixed |
| Maximum Aperture | f/1.6 | f/1.6 | f/1.6 |
| Field of View (H x V) | 97.5 x 71.9° | 77.9 x 57.9° | 50.7 x 37.8° |
| Adjustment Mechanism | |||
| Horizontal | -90 to 90° | -90 to 90° | -90 to 90° |
| Vertical | 59 to 66° | 50 to 80° | 40 to 89° |
| Rotate | -180 to 180° | -180 to 180° | -180 to 180° |
| Physical | |||
| Housing Material | Plastic | Plastic | Plastic |
| Dimensions | 1.39 x 1.41" / 35.5 x 35.9 mm | 1.39 x 1.41" / 35.5 x 35.9 mm | 1.39 x 1.41" / 35.5 x 35.9 mm |
| Weight | 0.08 lb / 35 g | 0.08 lb / 35 g | 0.08 lb / 35 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SLA-5M3700Q | Wisenet 1/1.8" Fixed Focal Megapixel Lens to suit PNM-9000VQ, F1.6, 3.7mm | $159.39 | Add to Cart | |
| SLA-5M4600Q | Wisenet 1/1.8" Fixed Focal Megapixel Lens to suit PNM-9000VQ, F1.6, 4.6mm | $159.39 | Add to Cart | |
| SLA-5M7000Q | Wisenet 1/1.8" Fixed Focal Megapixel Lens to suit PNM-9000VQ, F1.6, 7mm | $159.39 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
SLAxMxx00Q Datasheet.pdf | 316KB | Download |
|
SLAxMxx00Q Installation Guide.pdf | 794KB | Download |
