POSMarket SKU: Z15544
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

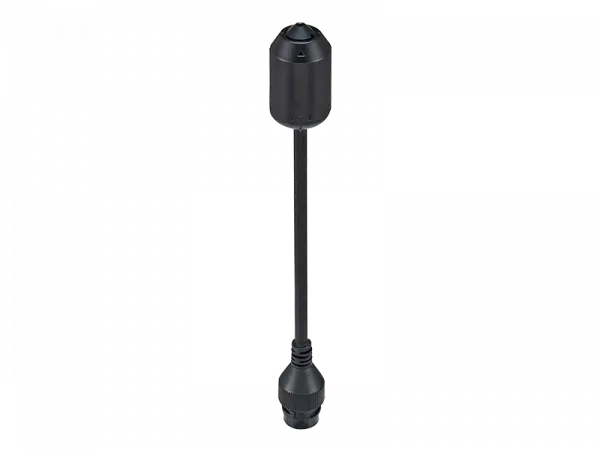

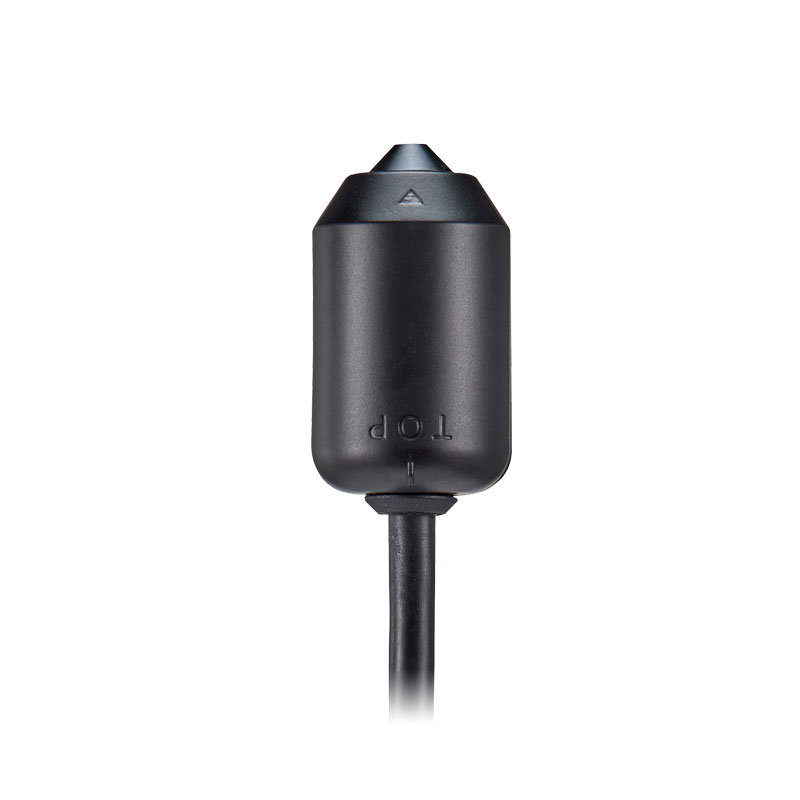

2MP Indoor Straight Pinhole Lens Module
| SLA-T4680 | |
| Video | |
| Sensor | 1/2.8" 2 MP Progressive Scan CMOS |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
| Minimum Illumination | At f/2.5: Color: 0.06 Lux B&W:0.06 Lux |
| S/N Ratio | 50 dB |
| Wide Dynamic Range | 120 dB |
| Day & Night | Electrical |
| Lens | |
| Focal Length | 4.6mm |
| Maximum Aperture | f/2.5 |
| Field of View (H x V) | 73 x 39° |
| Minimum Object Distance | 0.98' / 0.3 m |
| Lens Type | Pinhole |
| Connection Interface | RJ12 |
| Environmental | |
| Operating Temperature | 14 to 131°F / 10 to 55° |
| Storage Temperature | -58 to 140°/ -50 to 60° |
| Relative Humidity, Operating/Non-Operating | Less than 90% |
| Physical | |
| Housing Material | Plastic |
| Dimensions | Lens: 0.94 x 1.65" / 24 x 42 mm Cable: 314. 96" / 8 m |
| Weight | 0.68 lb / 310 g |
| SLA-T4680V | |
| Video | |
| Sensor | 1/2.8" 2 MP Progressive Scan CMOS |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
| Minimum Illumination | At f/2.5: Color: 0.06 Lux B&W:0.06 Lux |
| S/N Ratio | 50 dB |
| Wide Dynamic Range | 120 dB |
| Day & Night | Electrical |
| Lens | |
| Focal Length | 4.6mm |
| Maximum Aperture | f/2.5 |
| Field of View (H x V) | 73 x 39° |
| Minimum Object Distance | 0.98' / 0.3 m |
| Lens Type | Pinhole |
| Connection Interface | RJ12 |
| Environmental | |
| Operating Temperature | 14 to 131°F / 10 to 55° |
| Storage Temperature | -58 to 140°/ -50 to 60° |
| Relative Humidity, Operating/Non-Operating | Less than 90% |
| Physical | |
| Housing Material | Metal/Plastic |
| Dimensions | Lens: 1.18 x 0.80 x 1.77" / 30.0 x 20.2 x 45.0 mm Cable: 314. 96" / 8 m |
| Weight | 0.71 lb / 321 g |
| SLA-T1080F | |
| Video | |
| Sensor | 1/2.8" 2 MP Progressive Scan CMOS |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
| Minimum Illumination | At f/1.6: Color: 0.03 Lux |
| S/N Ratio | 50 dB |
| Wide Dynamic Range | 120 dB |
| Day & Night | Electrical |
| Lens | |
| Focal Length | 1.6mm |
| Maximum Aperture | f/1.6 |
| Field of View (H x V) | 187 x 113.9° |
| Minimum Object Distance | 0.98' / 0.3 m |
| Lens Type | Fixed Focal, Fisheye |
| Connection Interface | RJ12 |
| Environmental | |
| Operating Temperature | 14 to 131°F / 10 to 55° |
| Storage Temperature | -58 to 140° / -50 to 60° |
| Relative Humidity, Operating/Non-Operating | Less than 90% |
| Physical | |
| Housing Material | Metal/Plastic |
| Dimensions | Lens: 1.38 x 2.71" / 35.0 x 68.9 mm Cable: 314. 96" / 8 m |
| Weight | 0.71 lb / 321 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SLA-T1080F | Wisenet 2MP Indoor Fisheye Straight Lens Module to suit XNB-6001, 1.6mm | $325.71 | Add to Cart | |
| SLA-T4680 | Wisenet 2MP Indoor Straight Pinhole Lens Module to suit XNB-6001, 4.6mm | $189.42 | Add to Cart | |
| SLA-T4680V | Wisenet 2MP Right-Angle Pinhole Lens Module to suit XNB-6001, 4.6mm | $189.42 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
SLATxx80x Datasheet.pdf | 557KB | Download |
|
SLATxx80x Installation Guide.pdf | 4MB | Download |
