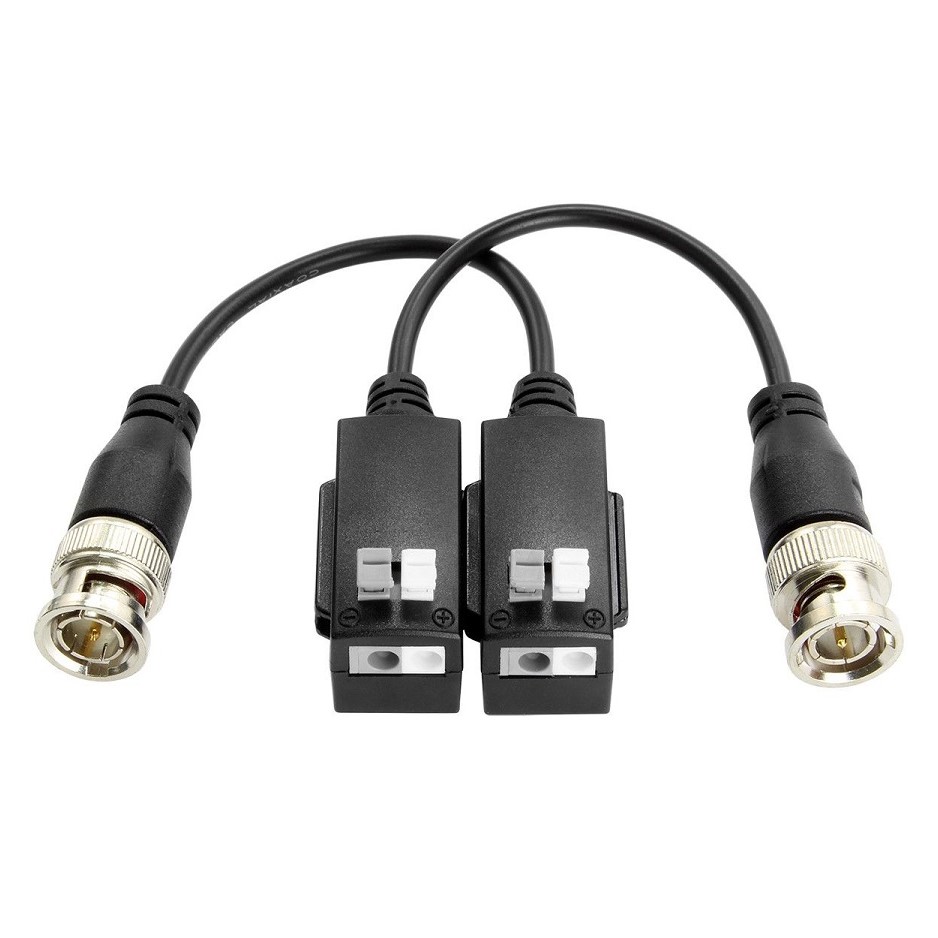

Hikvision HIK-1H18SE
POSMarket SKU: Z15560
Hikvision TVI/CVI/AHD Balun with tail, Coax over UTP, 5MP max at 200m, Pair Supplied
Product Overview
Features
- Transmits TVI signal via UTP cable
- No power required, and only simplified project wiring needed
- Plug and play, real-time transmission of high quality,
- stable CCTV HD video signal
- Compatible with HDTVI/HDCVI/AHD
- Transmission distance (over Cat 5E/6): HDTVI/HDCVI/AHD 720P/300m (max)
- 1080p/250m (max)
- 3 MP/4 MP/5 MP: 200m (max)
Product Specifications
| Manufacturer | Hangzhou Hikvision Digital Technology Co., Ltd. |
| Brand | Hikvision |
| Packaged Quantity | 1 |
| Type | Accessories |
| Accessory Type | Media Coverters |
| Transmission Signal | 1 channel |
| Transmission Distance | HDTVI/HDCVI/AHD 720P/300m(max); 1080P/250m(max) 3MP/4MP/5MP:200m(max) |
| Category Type | UTP CAT 5E/6 |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | Push-terminal |
| Compatible Format | HDTVI/HDCVI/AHD |
| Resolution | 720P/1080P/3MP/4MP/5MP |
| Ant-Interference | ＞60db |
| ESD | 1a contact discharge electricity level3; 1b air discharge electricity level3 Per:IEC61000-4-2 |
| UTP Cable Connector | 2KV(different-code),2KV(common-code) Per:IEC61000-4-5 |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Shell | ABS |
| Color | Black |
| Dimensions(L×W×H) | 39×19×17mm (1.535×0.748×0.669 inch) |
| Weight | 38.6g |
| MTBF | ＞10000 h |
| Operating Temperature | -10~55 C |
| Storage Temperature | -20~70 C |
| Humidity | 0-95%（non-condensing) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| HIK-1H18SE | Hikvision TVI/CVI/AHD Balun with tail, Coax over UTP, 5MP max at 200m, Pair Supplied | $5.78 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
DS-1H18S-E STR101P-HD-K2 Datasheet 20171017 | 744KB | Download |
