Planet PLA-VF-402-KIT

$1,000.23 (incl. GST)

POSMarket SKU: Z15657

PLA-VF-402-KIT: 4ch Video over Fibre Converter Kit, up to 20km, AHD, CVI, TVI, CVBS, Tx & Rx

The VF-402-KIT is the perfect choice to extend the range and signal conversion by the transmission of video and data over a single fiber-optic cable.

Product Rating
Product Overview
4-Channel Video over Fiber Bundle Kit
Ideal For Analog Surveillance Systems
Analog camera deployment and high quality videos have never been simpler with the Video over Fiber media converter kit from Planet technology. The VF-402-KIT is the perfect choice to extend the range and signal conversion by the transmission of video and data over a single fiber-optic cable. The unit features intelligent encoding and decoding technology. This quality unit also comes in a compact box and permits videos to be delivered up to 20km.

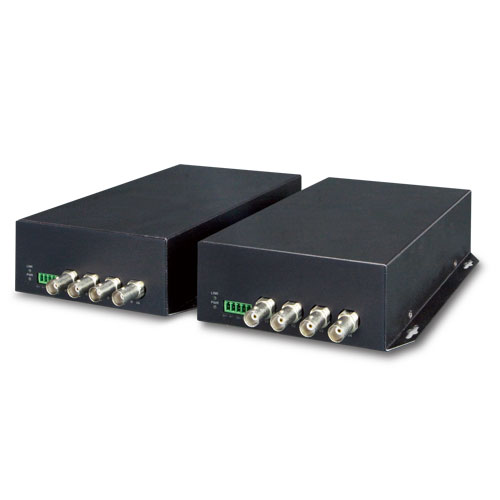

The VF-402-KIT includes a Video Transmitter and a Video Receiver:

  • VF-402-T: 4-Channel Video over Fiber Transmitter
  • VF-402-R: 4-Channel Video over Fiber Receiver


This kit is a fiber-optic transmission system that lowers the cost for dependable transmission of 4 channels of uncompressed digital video and 1 reverse RS-485 async-data over one fiber cable. The VF-402-KIT does not require adjustment but showcases high video quality and transmission. The unit can be operated simply by Intelligent Transportation Systems (ITS), Traffic Surveillance, security monitoring, automation control, intelligent residential districts and etc.

Industrial Level Monitoring Systems
The VF-402-KIT operates effectively under a range of temperatures from -25 to 75°C. The unit does not distort the transmission of high quality video and clear graphics in long distance. This unit features international uncompressed full digital error correction and gigabit fiber optical transmission technology. This unit supports hot plug and can be utilized independently or on a rack mount. The unit does not require field adjustment and operates efficiently.
Product Specifications
ManufacturerPlanet Technology USA
BrandPlanet
Packaged Quantity1 Set
TypeAccessories
Accessory TypeMedia Coverters
Video Channel4 channel bi-direction
Video ConnectorBNC
Video Input / Output Impedance75ohm / unbalanced interface
Video Input / Output Voltage1.0 Vpp / Typical peak-peak value
Video Bandwidth5Hz to 6.5MHz
Video Digital Bit Width8/10 bit
Differential Gain(DG)<1.3% (Typical Value)
Differential Phase(DP)<1.3 Deg (Typical Value)
SNR Weighted>63dB (Typical Value)
Data Channel4 channels
Physical ProtocolRS-485
Operation ModeSimplex
Data Connector4 Pin terminal block with screw clamps
Data RateDC-150 Kbps
Data DistanceRS-485: 0-20KM
BPS0-115.2Kbps
Bit Error Rate (BER)< 10-9
Optical ConnectorFC
Fiber TypeSingle-mode, single fiber
Distance20km for single mode
Optical WavelengthVF-402-T:TX: 1310nm, RX: 1550nm
VF-402-R:TX: 1550nm, RX: 1310nm
Transmitter Couple PowerMax.: 4dBM, Min.: -4dBM
Receive Sensitivity-26dBm
Link budgetFrom 22dB to 30dB at 1310nm or 1550nm
Cable9/125μm single-mode cable
Dimensions (W x D x H)110 x 174 x 47 mm
Weight560g
Power RequirementsDC 5V / 2A, AC 90~264V, 50~60HZ
Chassis Current Consumption0.75Amp for 4 channel video and 1 channel data
MechanicalMetalRegulation C
OperatingTemperature: -25 ~ 75 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
ModelDescriptionPriceStock
PLA-VF-402-KIT 4ch Video over Fibre Converter Kit, up to 20km, AHD, CVI, TVI, CVBS, Tx & Rx $1,000.23
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document VF-402-KIT Datasheet 2MB Download
PDF Document VF-402-KIT User Manual 3MB Download
