Product Overview
Features
- Available with mushroom or panhead actuator
- Switching current 5 mA to 2 A DC
- Switching voltage max. 12VDC (60 V on request)
- High contact stability thanks to AuAg crosspoint contacts
- Mechanical life up to 15 x 106 actuations
- Auxiliary actuator on request
- Degree of protection IP40
Product Specifications
| Technical specifications | |
| Series | DR |
| Contact configuration | S.P.D.T. |
| Contact gap | < 3 mm |
| Switching voltage (max.) | 12 V DC, to 60 V on request |
| Switching current | 0.005 to 2 A DC |
| Operating voltage Max. | 75 cN without auxiliary actuator |
| Total travel Approx. | 2.0 mm |
| Mechanical life Min. | 1 x 106 operations |
| Electrical life (max. load) | Min. 100,000 operations |
| Ambient temperature | – 40 to + 85°C/105°C |
| Materials | |
| Base | PBT/PES |
| Cover | PBT |
| Actuator | PES/POM |
| Auxiliary actuator | Stainless steel |
| Terminals | CuZn silver-plated |
| Contacts | AuAg (Crosspoint) |
| Degree of protection Switch interior | IP40 |
| Electrical rating | |
| Model | Code |
| 0.005 – 2 A DC, 12 V | 1 |
| Actuator type | |
| Model | Code |
| Mushroom | P |
| Panhead | R |
| Terminal type | |
| Terminal type | Code |
| Solder terminal 2.5 x 0.5 mm, w/o location pins | AN |
| Solder terminal 2.5 x 0.5 mm, RH side location pins | AR |
| Solder terminal, straight, 2.5 x 0.5 mm, LH side location pins | AL |
| PCB terminal, straight, 0.6 x 0.5 mm, w/o location pins | BN |
| PCB terminal, straight, 0.6 x 0.5 mm, RH side location pins | BR |
| PCB terminal, straight, 0.6 x 0.5 mm, LH side location pins | BL |
| PCB terminal RH side, 0.6 x 0.5 mm, RH side location pins | CR |
| PCB terminal LH side, 0.6 x 0.5 mm, LH side location pins | DL |
| Auxiliary actuator | |
| Model | Code |
| Without auxiliary actuator | A0 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

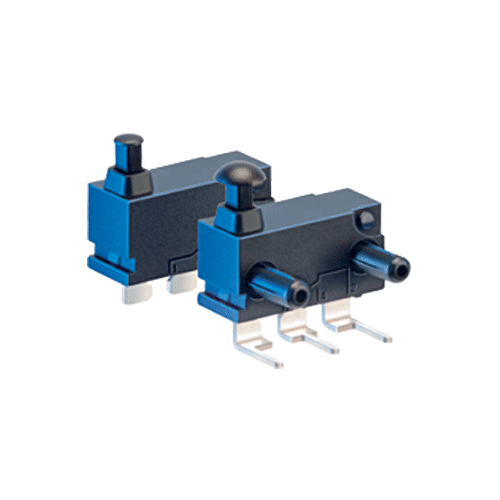

| DR1P-CRA0-02 50 | DR-series, 2A 12V SPDT PCB R Mhead | $2.57 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
![]() |
DR subminiature Datasheet.pdf | 80KB | Download |
