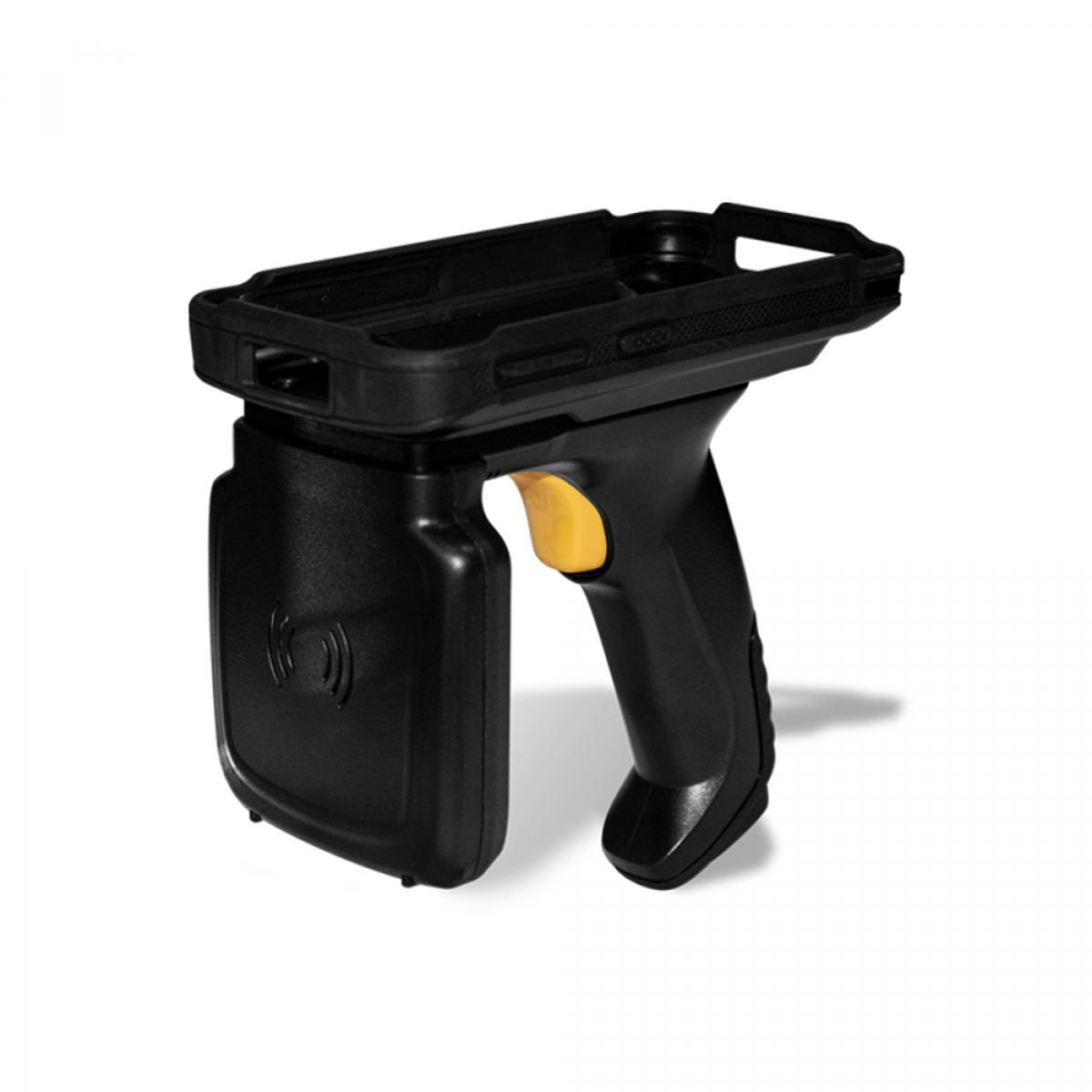

Newland UR90 UHF Pistol Grip
POSMarket SKU: Z20475
Combining a high-performance UHF RFID chip reader with ingenious software, the UR90 can read over 150 tags per second with a long read range of up to 6m, while the rugged IP65 housing protects against dust and water ingress to enable use within a range of applications in logistics, manufacturing and warehousing environments.
Product Overview
- Host terminal: MT90
- Standards supported: EPC Class 1 Gen 2
- User input trigger on pistol grip
- Frequency range: 865-867MHz
- Other frequency band support (customizable upon request)
- IP65 durability rating
- 330g
Product Specifications
| Dimensions | 160(W) x 82(D) x 165(H)mm |
| Weight | 330g |
| Notification | Speaker, vibration |
| Battery | 4500mAh |
| User Input | Trigger on pistol grip |
| Read Range | >12M (indoor); 6M (outdoor open space) (@Alien 9662) |
| Read Rate | =150 tags/sec |
| UHF Module | SLR1200, based on Impinj Indy R2000 |
| Antenna | Cicularly polarized antenna (3dB) |
| Frequency Range | ETSI (Europe): 865-867MHz |
| Standards Supported | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Static Discharge | ±15kV (air discharge), ±8kV (direct discharge) |
| Drop | 1.2m |
| Sealing | IP65 |
| Host Terminal | MT90 |
| Host Connection | 8-pin connector |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLA369-40060 | UHF RFID HANDHELD READER 902~928MHZ (SLED ONLY EXCLUSIVE OF MT90) | $1,265.55 | Add to Cart |
Product Accessories
Product Downloads
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
