POSMarket SKU: Z13901

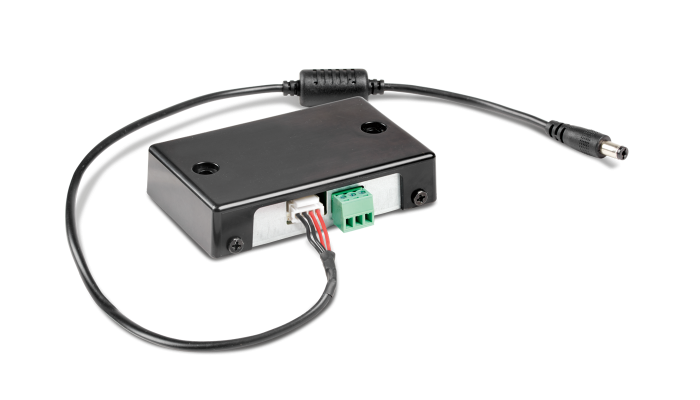

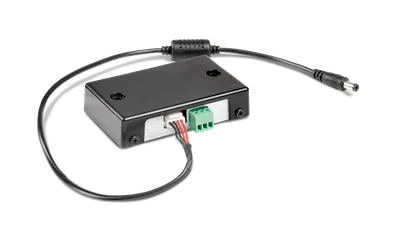

The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection.
| Part Number(s) | E239980 |
| Enclosure Color | Black |
| Input Connector Type | Terminal Block |
| Output Cable | Coaxial power jack (2.1mm (+0.0 -0.1mm) pin outer diameter, 5.5mm (+/- 0.05mm)barrel inner diameter, 9.5mm (+/- 0.3mm) Barrel depth, 400mm (+/- 20mm) Cable length) |
| Input Voltage | 24VDC +/- 5% |
| Input Current | Maximum 1.9A |
| Output Voltage | 12VDC +/- 5% |
| Output Current | Maximum 3.5A |
| Dimensions | 3.57" x 2.25" x 0.80" / 90.71 mm x 57.06 mm x 20.40 mm |
| Shipping Box Dimensions | 6.06" x 4.53" x 3.35" / 154 mm x 115 mm x 85 mm |
| Weight (Unpackaged) | 0.24 lbs / 0.11 Kg |
| Weight (Packaged) | 0.51 lbs / 0.23 Kg |
| Operating Temperature | 0deg C to 50deg C / 32deg F to 122deg F |
| Storage Temperature | -20deg C to 70deg C / -4deg F to 158deg F |
| Humidity | Operating: 20% - 80%
Storage: 10% - 95% |
| Regulatory approvals and declarations | FCC CE RCM VCCI |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E239980 | 24V DC Converter Kit | $115.50 | Add to Cart |
