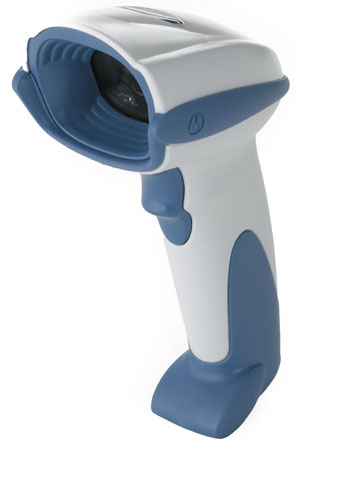

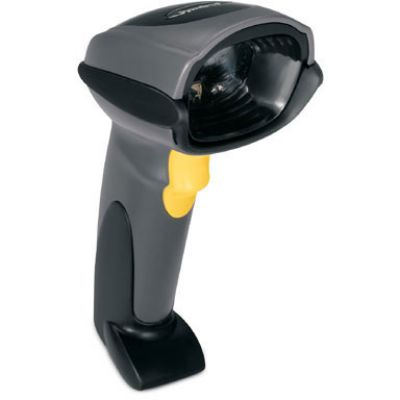

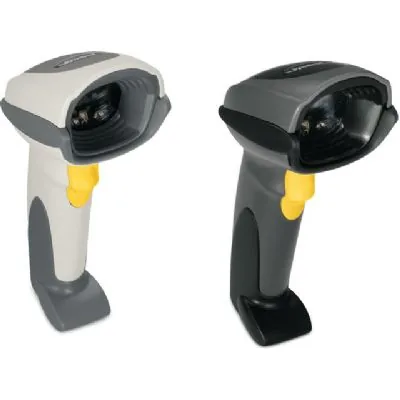

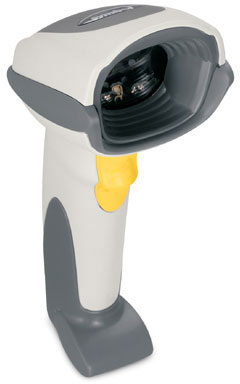

Symbol DS6700 : DS6707 & DS6708
POSMarket SKU: Z4023
This model is available in 7 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
bOmnidirectional scanning wide working rangebbrThe Symbol DS6700 Series DS6707 DS6708 general purpose barcode scanner combines the functionality of a barcode scanner digital camera and document scanner in a single cost-effective device. From point-and-shoot simplicity to accurate barcode scanning to capturing full-size documents the DS6700 Series DS6707 DS6708 is the right tool for the job. Text enhancement technology makes the scanner able to handle even the finest-grain text. Omnidirectional scanning and a wide working range means that even novice users can begin scanning with minimal training.
Product Overview
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Product Specifications
Symbol DS6700 Series: DS6707 & DS6708 Details
Imaging characteristics
Image resolution (pixels)
1.3 Megapixel: 1280 pixels H x 1024 pixels V
Graphics formats supported
Bitmap, JPEG, TIFF
Notices and disclaimers
See footnote1
Performance characteristics
Depth of field
SR - Standard range: 34° V x 43° H / DC - Document capture: 35° V x 44° H
Pitch3
SR - Standard range: ±65°DC - Document capture: ±65°
Decode capability
1-D/2-D/PDF417
Scan pattern
Omnidirectional
Roll (tilt)2
SR - Standard range: 360°DC - Document capture: 360°
Skew (yaw)4
SR - Standard range: ±60°DC - Document capture: ±60°
Interfaces supported
IBM, Keyboard wedge, RS-232, Interfaces vary per model; see datasheet for details
Technology
Imager
Physical characteristics
Dimensions
6.55 in. H x 4.72 in. L x 2.82 in. W16.6 cm H x 11.9 cm L x 7.1 cm W
Voltage and current4
5 +/-10%VDC @ 350 mA
Handheld
Yes
Weight
6.4 oz. (182 gm)
Color
Twilight black, Cash register white
Corded
Yes
Regulatory specifications
Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
EMI/RFI
IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B
Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10
Environmental
RoHS Directive 2002/95/EEC
User environment
Operating temperature
32° to 122° F / 0° to 50° C
Drop specifications
Withstands multiple 6 ft. (1.8m) drops to concrete
Environmental sealing
IP41
Storage temperature
-40° to 158° F / -40° to 70° C
Ambient lighting tolerance
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
