POSMarket SKU: Z14459

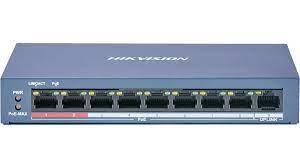

8 Port Unmanaged PoE Switch
| Model | DS-3E0109P-E/M(B) |
| Network parameters | |
| Port number | 8 x 100M PoE ports, 1 x 100M Ethernet port. |
| Port type | RJ45 port, Full duplex, MDI/MDI-X adaptive |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Processing type | Store-and-forward switching |
| Ports with high priority | 1 to 2 ports |
| Ports for longdistance transmission | 1 to 8 ports |
| MAC address | table 2 K |
| Exchange capacity | 1.8 Gbps |
| Packet forwarding rate | 1.339 Mpps |
| Internal cache | 1 Mbits |
| PoE power supply | |
| Power supply | standard IEEE 802.3af, IEEE 802.3at |
| Power supply | cable core |
| Supports | 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| PoE port | 1 to 8 |
| Max. port power | 30 W |
| Max. machine power | 60 W |
| Mechanical structure | |
| Shell | Metal material, fan-free design |
| Weight | 0.35 kg (0.77 lb) |
| Dimensions | 170 mm x 27.6 mm x 93.1 mm |
| Environment | |
| Operating temperature | 0 ËšC to 40 ËšC (32 ËšF to 104 ËšF) |
| Storage temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Relative humidity | 5% to 95% (no condensation) |
| Power supply specification | 48 VDC, 1.35 A |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-3E0109P-E/M(B) | Hikvision 8 Port Unmanaged PoE Switch, 8*100M, 1*100m Combo Port 802.3af/at | $145.53 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DS3E0109PEMB Datasheet.pdf | 727KB | Download |
|
DS3E0109PEMB Quick Start Guide.pdf | 1MB | Download |
Hikvision DS-3E0318P-E/MB
Accessories > Switches and outlets
Hikvision DS-3D2228P
Accessories > Switches and outlets

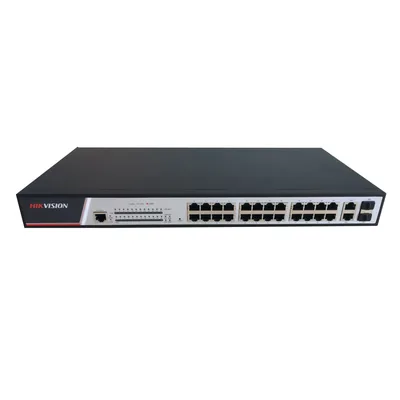

Hikvision DS-3E2326P
