ION F16

from $1,072.50 (incl. GST)

POSMarket SKU: Z7213

This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

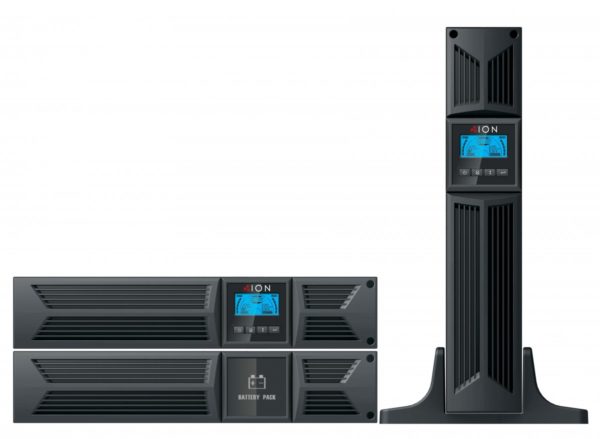

The ION F16 RackTower UPS provides line-interactive backup high power factor power and scalable runtimes for servers storage systems VoIP gear and network equipment. With an intuitive LCD display outlet groups and high efficiency the F16 is the affordable way for businesses to flexibly integrate reliable power backup and protect vital IT and Telecom equipment. Available in 1000VA900W 1500VA1350W 2000VA1800W 3000VA2700W versions

Product Rating
Product Overview
  • 3 year advanced replacement warranty
  • Rotate-able LCD display
  • Optional additional battery modules extending run time
  • 0.9 power factor
  • Pure Sine Wave output
  • Easy battery replacement
  • Power management software
  • Optional SNMP and relay card
  • Optional Wi-Fi communication module
  • Self-monitoring and fault diagnosis
  • Grouped programmable outlets
  • Flexible rack/tower footprint
Product Specifications
Nominal Output VoltageVariable 220 240VAC
Voltage RegulationLess than 5%
Frequency50Hz 5Hz
Frequency (BAT Mode)50Hz 0.1Hz
TopologyLine Interactive
Waveform TypePure Sine Wave
Transfer Time2-4ms typical
Nominal Input VoltageVariable 161 276VAC
Input Frequency Range50Hz 5Hz
Line Mode 110% 10%, Fault after 3 Minutes; 150% 10%, Fault after 200ms
Battery Mode 110 % 10%, Fault after 30 Seconds; 120 % 10 %, Fault after 100ms
Line Mode> 96% at Full Load and Battery Fully Charged
Battery Mode> 86% at Full Load
Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time3-6 hour(s)
Expected Battery Life (years)3- 5 years
Extendable Run TimeYes
Interface Port(s)RS232 / USB / EPO
Communications Card SlotOptional SNMP /AS400 Card
Control panelLoad / Battery / Input / Output / Operating Mode Information
Audible AlarmYes
Operating Relative Humidity0 95 %
Operating Elevation0-3000meters
Storage Temperature-15 45 °C
Storage Relative Humidity0 95 %
Storage Elevation0-15000 meters
ApprovalsCE
Standard warranty3 Year Advance Replacement
ModelDescriptionPriceStock
F16-3000 F16 3000VA / 2700W Line Interactive, Pure Sinewave UPS $1,951.13
Call
 Add to Cart
F16-2000 F16 2000VA / 1800W Line Interactive, Pure Sinewave UPS $1,505.63
Call
 Add to Cart
F16-1500 F16 1500VA / 1350W Line Interactive, Pure Sinewave UPS $1,340.63
Call
 Add to Cart
F16-1000 F16 1000VA / 900W Line Interactive, Pure Sinewave UPS $1,072.50
Call
 Add to Cart
ModelDescriptionPrices From
ION F-MBP16 ION 16 Amp Maintenance Bypass Switch $577.50 View Product
ION Platinum Warranty for F16-1000 Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F16-1000 UPS takes the warranty to a total of 4 years warranty from purchase. $266.06 View Product
ION Platinum Warranty for F16-1500 Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F16-1500 UPS takes the warranty to a total of 4 years warranty from purchase. $334.13 View Product
ION Platinum Warranty for F16-2000 Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F16-2000 UPS takes the warranty to a total of 4 years warranty from purchase. $373.31 View Product
ION Platinum Warranty for F16-3000 Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F16-3000 UPS takes the warranty to a total of 4 years warranty from purchase. $488.81 View Product
ION Platinum Warranty for F-SWIFI Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F-SWIFI takes the warranty to a total of 4 years warranty from purchase. $74.25 View Product
ION ION Basic Power Distribution Unit 16A ION have a large range of Power Distribution Units (PDUs) from basic, metered and switched by outlet that have been designed to meet the needs of the modern IT and commercial industries. $383.63 View Product
ION Basic Power Distribution Unit 16A 20X C13 4X C19 ION have a large range of Power Distribution Units (PDUs) from basic, metered and switched by outlet that have been designed to meet the needs of the modern IT and commercial industries. $484.69 View Product
ION C14 IEC Adaptor Cable ION Output Connection Leads: IEC Adaptor - C14 (Black stubby 150mm) $12.38 View Product
ION Input Connection Leads; IEC Mains Cord ION Input Connection Leads: IEC Mains Cord - Female IEC to Male AUS 15 Amp (3m) $66.00 View Product
ION IEC Mains Cord - Female IEC to Male AUS IEC Mains Cord - Female IEC to Male AUS 10 Amp (2m) 10Amp Australian 3 Pin Male to IEC C19 $66.00 View Product
ION F16-AS400 Relay Card ION F16 Relay AS400 relay card $CALL
ION F-16 Extended Battery Module Extended Battery Module Rack / Tower 2RU Compatible with F-16 1000VA, F16-1500VA, F18-1000VA $1,115.81 View Product
ION Environmental Monitoring Probe ION environmental probe (F-EMP ) is a connective device that enables you to connect temperature and humidity readings in the environment and monitor the environmental data remotely. $247.50 View Product
ION F-MBP32 The ION F-MBP32 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 6kVA where uptime is essential. $CALL
ION F-MBP63 Maintenance Bypass Switch The ION F-MBP63 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 10kVA where uptime is essential. $2,145.00 View Product
ION Sealed Lead Battery 12V 5Ah ION Sealed Lead Battery 12V 5Ah $36.30 View Product
ION Sealed Lead Battery 12V 7.2Ah ION Sealed Lead Battery 12V 7.2Ah $49.50 View Product
ION Sealed Lead Battery 12V 9Ah ION Sealed Lead Battery 12V 9Ah $62.70 View Product
ION Server Rack Enclosure 45U ION Server Rack Enclosure, 45U, 600mm Wide, 1000mm Deep, Castors, Assembled $3,665.06 View Product
ION Network Rack Enclosure, 47U ION Network Rack Enclosure, 47U, 800mm Wide, 1000mm Deep, Castors, Assembled $4,184.81 View Product
ION Card F15R F16 F18 SNMP Web Adaptor F15R/F16/F18 SNMP/Web Adaptor Card $594.00 View Product
ION ION EXT WARRANTY PLATINUM F16-AS400 +2YR Platinum Warranty uplift 5 year advance replacement warranty must be purchased with F16-AS400 takes the warranty to a total of 5 years warranty from purchase. $92.81 View Product
ION CARD F16 RELAY AS400 ION F16 Relay AS400 relay card $152.63 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ION F16 Brochure 3MB Download
