POSMarket SKU: Z7214
This model is available in 9 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

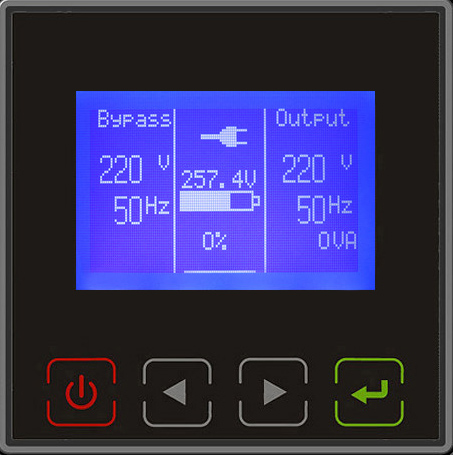

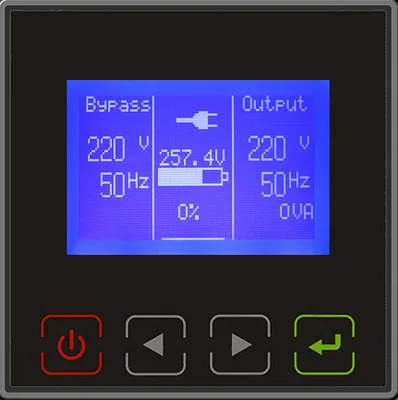

The ION F18 RackTower UPS delivers online power quality and scalable battery runtimes for rack servers voice and data networks storage systems and other IT equipment. With an efficiency rating of 95-97 the F18 UPS cuts energy costs while packing 1kVA-10kVA of power into only 2-3RU of rack space. The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss corruption and downtime.
Nominal Output Voltage | 230V |
Voltage Regulation | Less than 5% |
Frequency | 47 53 Hz for 50 Hz nominal, 57 63 Hz for 60 Hz nominal |
Topology | Double Conversion Online |
Waveform type | Pure Sine Wave |
Bypass | Internal Bypass (Automatic and Manual) |
Nominal Input Voltage | 230V |
Input frequency Range | 50/60 Hz +/- 3 Hz (auto sensing) |
Line Mode | 12s at 102%-130% Load; 1.5s at 130%-150% Load |
Battery Mode | 110 % 10%, Fault after 30 Seconds; 120 % 10 %, Fault after 100ms |
Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 3-6 hour(s) |
Expected Battery Life (years) | 3-5 years |
Extendable Run Time | Yes |
Interface Port(s) | RS232 / USB / EPO |
Communications Card Slot | Optional SNMP /AS400 Card |
Control panel | Load / Battery / Input / Output / Operating Mode Information |
Audible Alarm | Yes |
Operating Environment | 0 - 40 degree C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000meters |
Storage Temperature | -15 - 45 degree C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-15000meters |
Model | Description | Price | Stock | |
---|---|---|---|---|
F18-10000 | F18 10000VA / 9000 Online Double Conversion UPS | $10,397.06 | Add to Cart | |
F18-SC10 | F18 10000VA / 9000 Online SUPER CHARGER UPS, NO BATTERIES (Requires a min of one (1) FEBM-240) | $10,397.06 | Add to Cart | |
F18-6000 | F18 6000VA / 5400 Online Double Conversion UPS | $5,977.13 | Add to Cart | |
F18-SC6 | F18 6000VA / 5400 Online SUPER CHARGER UPS, NO BATTERIES (Requires a min of one (1) FEBM-180) | $5,977.13 | Add to Cart | |
FEBM-240 | ION EXTENDED BATTERY F18 10000 & SC UNITS | $3,042.19 | Add to Cart | |
F18-SC3 | F18 3000VA / 2700 Online SUPER CHARGER UPS, NO BATTERIES (Requires a min of one (1) FEBM-720) | $2,695.69 | Add to Cart | |
F18-3000 | F18 3000VA / 2700W Online Double Conversion UPS | $2,695.69 | Add to Cart | |
F18-2000 | F18 2000VA / 1800W Online Double Conversion UPS | $2,062.50 | Add to Cart | |
F18-1000 | F18 1000VA / 900W Online Double Conversion UPS | $1,235.44 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
ION F-MBP16 | ION 16 Amp Maintenance Bypass Switch | $577.50 | View Product |
ION Platinum Warranty for F18-1000 | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F18-1000 UPS takes the warranty to a total of 4 years warranty from purchase. | $305.25 | View Product |
ION Platinum Warranty for F18-10000 | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F18-10000 UPS takes the warranty to a total of 4 years warranty from purchase. | $2,600.81 | View Product |
ION Platinum Warranty for F18-3000 | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F18-3000 UPS takes the warranty to a total of 4 years warranty from purchase. | $676.50 | View Product |
ION Platinum Warranty for F18-6000 | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F18-6000 UPS takes the warranty to a total of 4 years warranty from purchase. | $1,495.31 | View Product |
ION Platinum Warranty for FEBM-240 | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with FEBM-240 EBMtakes the warranty to a total of 4 years warranty from purchase. | $1,866.56 | View Product |
ION Platinum Warranty for F-SWIFI | Platinum Warranty uplift 4 year advance replacement warranty must be purchased with F-SWIFI takes the warranty to a total of 4 years warranty from purchase. | $74.25 | View Product |
ION ION Basic Power Distribution Unit 16A | ION have a large range of Power Distribution Units (PDUs) from basic, metered and switched by outlet that have been designed to meet the needs of the modern IT and commercial industries. | $383.63 | View Product |
ION Basic Power Distribution Unit 16A 20X C13 4X C19 | ION have a large range of Power Distribution Units (PDUs) from basic, metered and switched by outlet that have been designed to meet the needs of the modern IT and commercial industries. | $484.69 | View Product |
ION C14 IEC Adaptor Cable | ION Output Connection Leads: IEC Adaptor - C14 (Black stubby 150mm) | $12.38 | View Product |
ION Input Connection Leads; IEC Mains Cord | ION Input Connection Leads: IEC Mains Cord - Female IEC to Male AUS 15 Amp (3m) | $66.00 | View Product |
ION IEC Mains Cord - Female IEC to Male AUS | IEC Mains Cord - Female IEC to Male AUS 10 Amp (2m) 10Amp Australian 3 Pin Male to IEC C19 | $66.00 | View Product |
ION F18-AS400 Relay Card | ION F18-AS400 Relay Card | $179.44 | View Product |
ION ION F18L Rack Kit | ION F18L rack kit compatible with the 1kVA, 2kVA, 2kVAXLI, 3kVA UPS and EBM. | $206.25 | View Product |
ION F18 Extended Battery Module | ION Extended Battery Module Compatible with F18 6000 & SC Units - 3yr Advanced Replacement Warranty | $1,192.13 | View Product |
ION F-16 Extended Battery Module | Extended Battery Module Rack / Tower 2RU Compatible with F-16 1000VA, F16-1500VA, F18-1000VA | $1,115.81 | View Product |
ION Environmental Monitoring Probe | ION environmental probe (F-EMP ) is a connective device that enables you to connect temperature and humidity readings in the environment and monitor the environmental data remotely. | $247.50 | View Product |
ION F-MBP32 | The ION F-MBP32 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 6kVA where uptime is essential. | $CALL | |
ION F-MBP63 Maintenance Bypass Switch | The ION F-MBP63 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 10kVA where uptime is essential. | $2,145.00 | View Product |
ION Sealed Lead Battery 12V 5Ah | ION Sealed Lead Battery 12V 5Ah | $36.30 | View Product |
ION Sealed Lead Battery 12V 7.2Ah | ION Sealed Lead Battery 12V 7.2Ah | $49.50 | View Product |
ION Sealed Lead Battery 12V 9Ah | ION Sealed Lead Battery 12V 9Ah | $62.70 | View Product |
ION Server Rack Enclosure 45U | ION Server Rack Enclosure, 45U, 600mm Wide, 1000mm Deep, Castors, Assembled | $3,665.06 | View Product |
ION Network Rack Enclosure, 47U | ION Network Rack Enclosure, 47U, 800mm Wide, 1000mm Deep, Castors, Assembled | $4,184.81 | View Product |
ION Card F15R F16 F18 SNMP Web Adaptor | F15R/F16/F18 SNMP/Web Adaptor Card | $594.00 | View Product |
Filename | Size | ||
---|---|---|---|
ION F18 1kVA-3kVA Brochure | 843KB | Download | |
ION F18 6kVA-10kVA Brochure | 800KB | Download |
