Opticon OPL9723
POSMarket SKU: Z2133
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

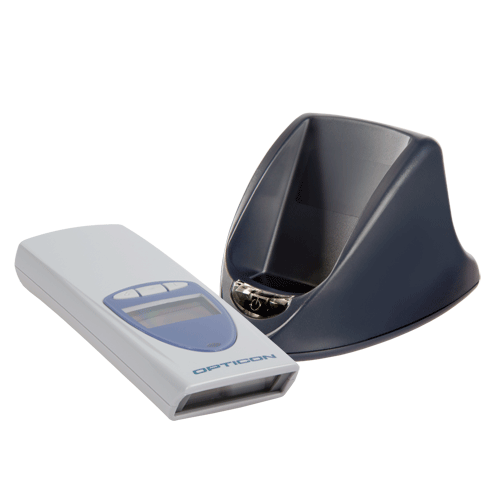

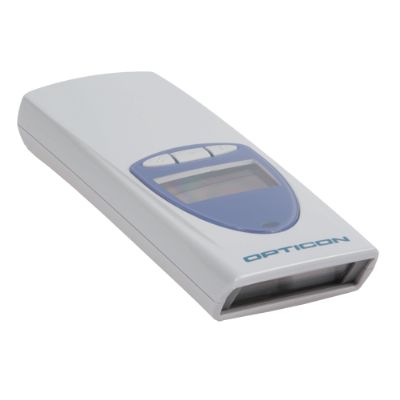

The OPL-9723 is a small and lightweight batch data collector. With a 1D Laser scanner that scans at an impressive 100 scans/second, this device is perfect for inventory, retail stocktaking or logistics applications.
Product Overview

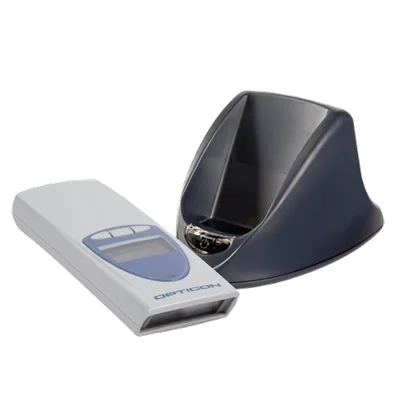

The OPL9723 stores data onboard for later transfer via IrDA through a charging cradle (sold separately.) The charging cradle is available with a serial, modem or GSM interface. OPL9723 product highlights include:
- Laser barcode scanner - featuring 100 scans/second
- Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
- Compact size and weight - scanner measures 1.7" x 4.9" x 7.5"
- Batch scanner - stores data for later transfer via IrDA to a charging cradle (sold separately)
- LCD screen displays up to 10 lines of information
- 3-key keypad for user navigation through applications
- Survives drops of 5 feet onto concrete
- Rugged IP54 rating - sealed against dust and moisture.
- One year warranty
Product Specifications
| Operation | CPU: 16-bit O/S: Proprietary Software: Programmable in C-language. Ansi-C Cross compiler obtainable. Software development kit free downloadable RTC: Supports year, month, day, hour, minute, second (leap year supported) |
| Memory | FlashROM: 512 kB RAM: 512 kB |
| Display | Type: Graphic LCD Size: 112 x 64 pixels Mode: Landscape / 180ยบ rotation Font size: 6x6 / 6x12 / 8x8 / 8x16 dots |
| Operating indicators | Visual: 1 LED (red/green/orange) Non-visual: Buzzer |
| Operating keys | 2 function keys 1 scan key |
| Communication | IrDA: Ver. 1.2, baudrate 2400 bps - 115.2 kbps |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| OPL9723-128KIT | OPL9723 Kit. Includes OPL9723 Scanner, Cradle, Power supply, USB cable and Case | $268.13 | Add to Cart | |
| 10906 | OPL9723 Data collector with 128K Memory | $351.38 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Opticon 6VDC1000 7 (FSR-06) | Plug Pack 6V Reg. | $32.84 | View Product |
| Opticon Designated Cradles | USBRS232 CommCharging Cradle for OPL9728 with RS232 Cable | $188.10 | View Product |
| Goodson USB Cable | USB Cable A to A; USB 2.0 A to B Cable | $6.90 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
OPL9723 Brochure | 194KB | Download |
