Zebra RFD8500i

$CALL

POSMarket SKU: Z4326

RFD8500-1000100-EU: RFD8500. UHF Bluetooth RFID Sled Reader, Gun FF, 869MHz EU Band, 4410mAh battery

Add the power of enterprise-class UHF RFID reading to Zebras TC55 touch mobile computer - simply easily and cost-effectively. The RFD8500i utilizes NFCBluetooth for proximity pairing to quickly and securely connect to the TC55 via an enhanced adapter. When it comes to performance the RFD8500iTC55 combination is unparalleled - workers can capture tags and barcodes faster and with ease improving productivity operational efficiency and customer service.

Product Rating
Product Overview

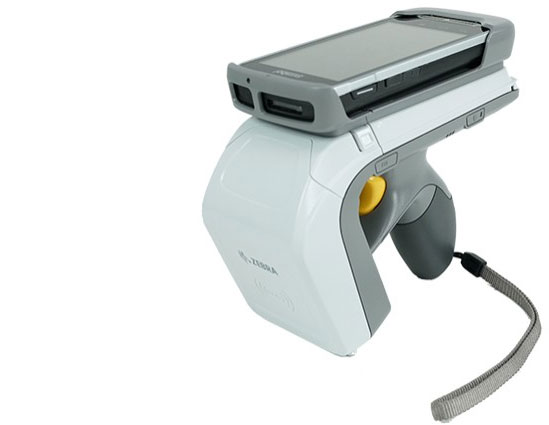

RFD8500 is a high performance multi-operating system Bluetooth RFID sled. With the RFD8500, you can easily enable compatible Zebra and third-party mobile devices, tablets and smartphones with enterprise-class UHF RFID & 1D/2D bar code scanning capabilities. Zebra€™s RFD8500 sled is available in two options €“ RFID only & RFID with Imager.

MULTI-OS, MULTI-PLATFORM AND EASY TO DEPLOY
Leverage your mobile computing strategy and add world-class data collection capability in an economical way. And, it's easy to deploy. Just twist to lock onto or remove the RFD8500 from any Zebra or third-party mobile computer via a Quad Lock or slide-on/slide-off Zebra custom-tailored adaptor.

FLEXIBLE CONNECTIVITY OPTIONS: BLUETOOTH® OR BATCH MODE
Enable a real-time wireless connection to your mobile or backend systems via Bluetooth 2.1 or later. If a wireless connection is not available, batch mode enables the collection of up to 500 bar codes and/or 42,000 RFID tags.

HIGH-PERFORMANCE BATTERY AND TAG CAPTURE
With AutoMac and our patent-pending breakthrough antenna design, you get maximum read/write speeds and coverage required to maximise workforce efficiency. And, our unique power-optimising algorithm delivers the superior battery cycle times that ensure full-shift power, even with intensive usage.
Product Specifications
Physical Characteristics
(Dimensions)5.1 in. H x 3.1 in. W x 7.3 in. L
13 cm H x 8 cm W x 18.5 cm L
(Weight)Imager Version: 15.3 oz./~435 grams;
Non-Imager version:15.3 oz./~430 grams
(Power)PowerPrecision Li-Ion battery, 4410 mAh
(Configurations)RFID-only or RFID with SE4710 Imager
(Notification)LED and audible tone
(User Input)Trigger, 3 push button switch
RFID Performance
(Standards Supported)EPC Class 1 Gen 2; EPC Gen2 V2
(RFID Engine)Zebra Proprietary Radio Technology
(Fastest Read Rate)900+ tags/sec
(Nominal Read Range)20+ ft./6+ m
(Frequency Range/RF Output)US: 4.5 €“ 34.5 dBm
EU: 4.5 €“ 34.5 dBm JP (LBT): 4.5 €“ 33 dBm JP: 4.5 €“ 27.5 dBm
(Batch Mode Memory)Store 40,000+ RFID Tags, 500 barcode
User Environment
(Drop Specification)Multiple 4 ft./1.2 m drops to concrete (0° to 40° C)
(Tumble Specification)1000 drops (500 tumbles, 1.6 ft./0.5 m) at room temperature
(Operating Temp.)-10°C to 40°C/14°F to 104°F
(Storage Temp.)-40°C to 70°C/-40°F to 158°F
(Charging Temp.)0°C to 40°C/14°F to 104°F
(Humidity)5-85% non-condensing
(Electrostatic Discharge)+/-15kV air discharge
+/-8kV direct discharge +/-8kVdc indirect discharge
(Sealing)IP52
Communication
(Bluetooth)Bluetooth Version 2.1
SPP profile HID Profile Apple iAP2/MFi
(Bluetooth Class)2
(Bluetooth Pairing)Secure Simple Pairing €˜just works€™ method
(Compatible Host Devices (Bluetooth))Devices with Android 4.4 or iOS 8 OS
Accessories

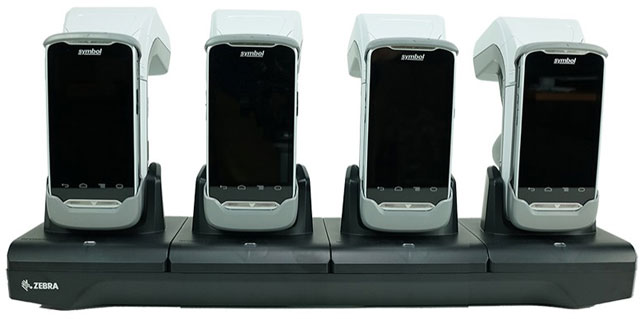

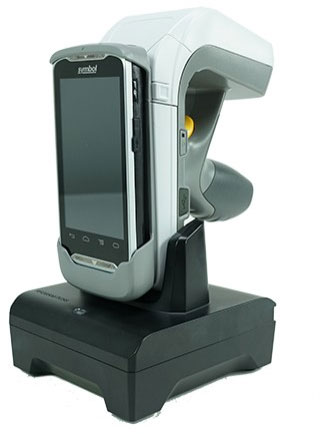

(External Interface)MicroUSB Connector and Charging Cradle-based charging
(Other Accessories)Adapter mounts for Enterprise Zebra Mobile Computers; Quad lock adapter for variety of smart phones
Regulatory
(EMI/EMC)FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 301 489-17; EN 55022 Class B; EN55024; EN 55032 Class B
(Electrical Safety)UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1
(RF Exposure)EU: EN 50364, EN 62479; USA: FCC Part 2
ModelDescriptionPriceStock
RFD8500-1000100-EU RFD8500. UHF Bluetooth RFID Sled Reader, Gun FF, 869MHz EU Band, 4410mAh battery $CALL
