POSMarket SKU: Z1861
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

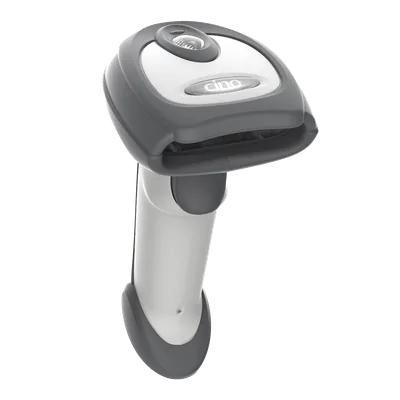

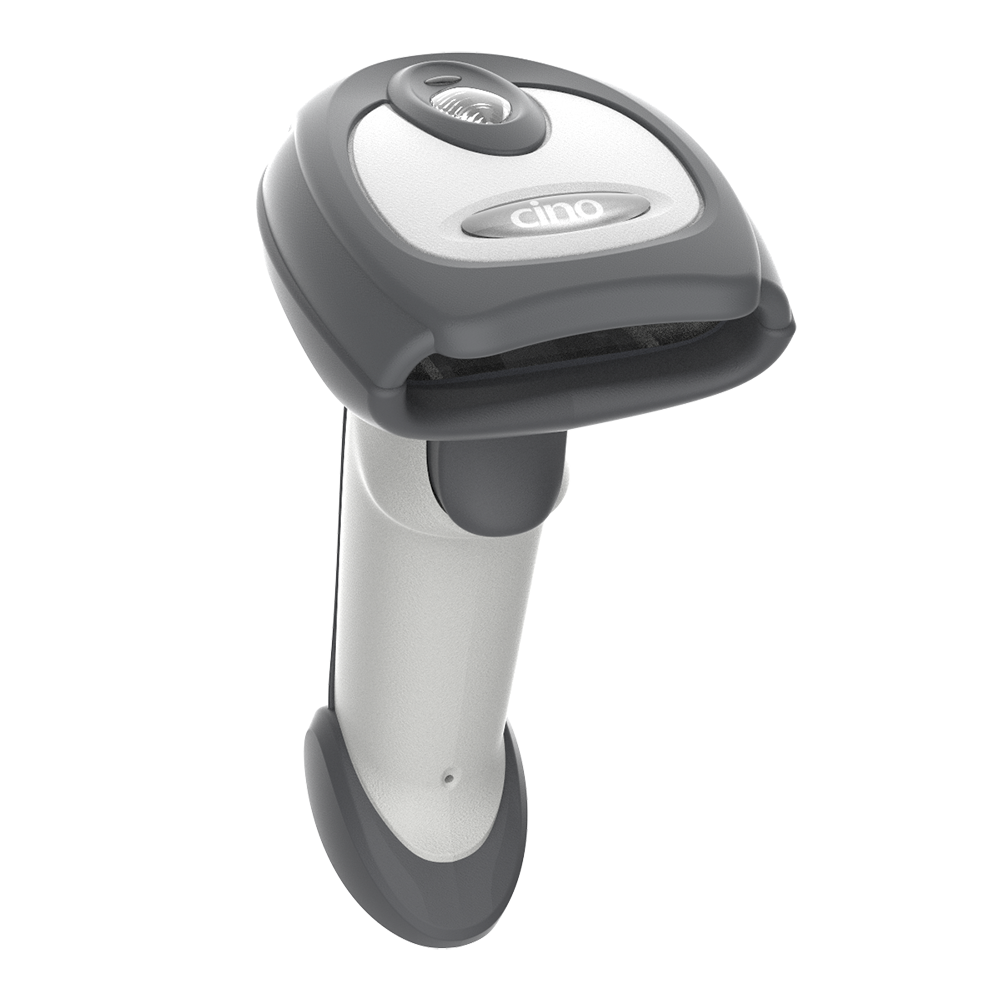

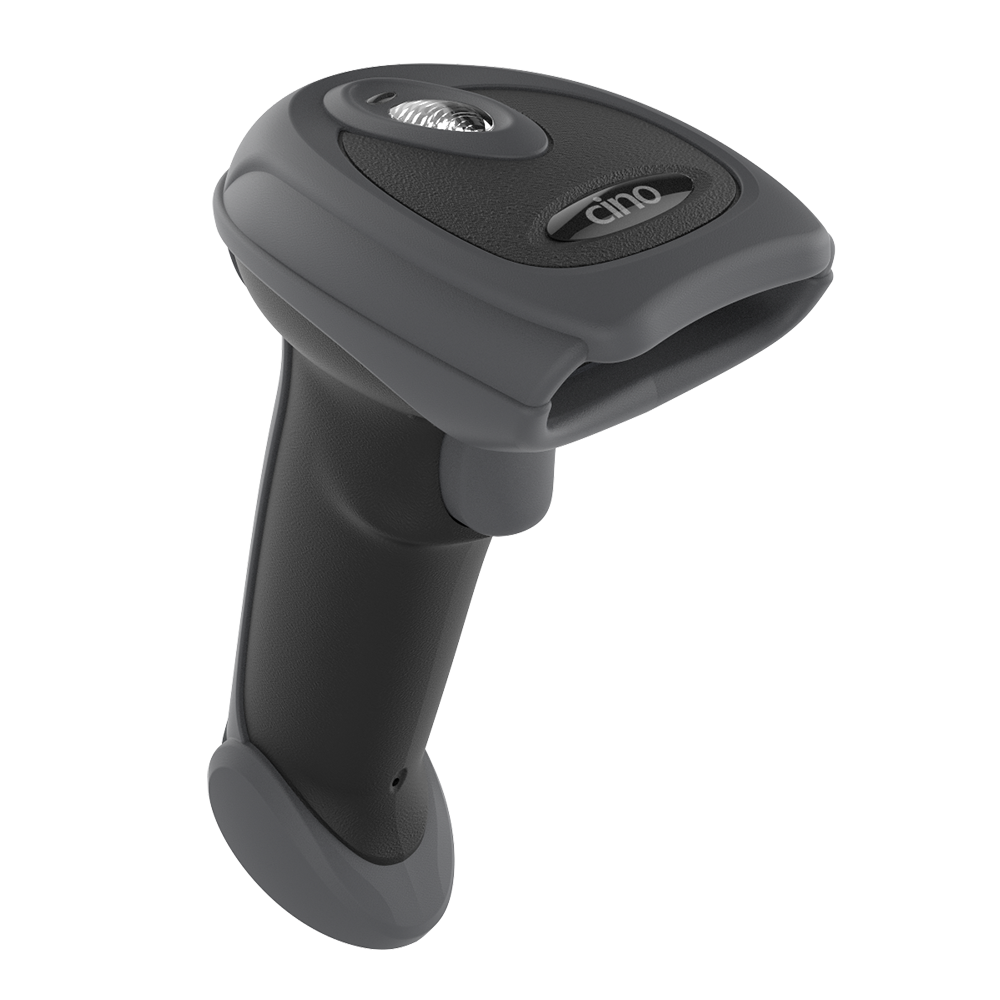

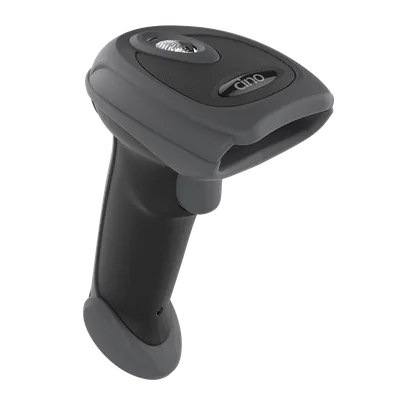

Premium linear handheld imager for enterprise applications. A durable enclosure protects the F780 against inadvertent drops from a height of 2 meters.
Scan Engine | High Performance Linear Imaging Engine |
Light Source | 630 nm visible red LED |
Scan Pattern | Single Line |
Scan Rate | Dynamic scanning rate up to 500 scans/sec |
Contrast Ratio | 20% minimum reflective difference |
Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
Depth of field | More then 60 cm on 100% UPC/EAN symbols More then 86 cm on 20 mil code 39 |
Pitch Angle | +/- 65 deg. |
Skew Angle | +/- 65 deg. |
Ambient Light Immunity | 0~100000 Lux |
Symbologies supported | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard and Industrial 2 of 5, Interleaved and Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
Programming Method | Bar code command Windows Utility - Fuzzyscan Powertool Condensed Data Wizard via bar code command Full featured Data Wizard via Fuzzyscan Powertool |
Indicators/Controls | 3 LED's for Power, good read, and Status Indicators Programmable Beeper Optional Vibrator (Special Order with MOQ) |
Operating Modes | Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation. |
Communication Type | Corded |
Interfaces | PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation |
Supply Voltage | 5VDC 10% |
Power Consumption | Operating : Typical 180 mA @5VDC Standby : Typical 80 mA @5VDC |
Drop Specification | Withstands 50 drops at 1.8 m to concrete Withstands 10 drops at 2 m to concrete |
Environmental Sealing | IP41 |
ESD Protection | Functional after 15kV discharge |
Operating Environment | -10 to 50 C RH 5% ~ 95% non condensing |
Storage Environment | -40 ~ 70 C RH 5% ~ 95% non condensing |
EMC/Safety Standards | FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI) LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam) |
External Dimensions (WxDxH) | 70.5 x 97.8 x 156.2mm |
Weight | 157g (excluding the cable) |
Model | Description | Price | Stock | |
---|---|---|---|---|
GPHS78001000K01 | F-780 Scanner, USB interface | $171.88 | Add to Cart | |
GPHS78001001K33 | F-780 Scanner, Serial (RS232) interface | $171.88 | Add to Cart | |
GPHS78001000K07 | F-780 Scanner, Serial (RS232) interface and Smart stand | $207.63 | Add to Cart | |
GPHS78001000K05 | F-780 Scanner, USB interface and Smart stand | $207.63 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Cino AMCBA105700DAR0 | Serial Cable DB9F for Cino FBC4360760. Requires Power Supply | $36.30 | View Product |
Cino AMCBA105600DAR0 | PS2 Cable for Cino Scanners - F560 F790WD FBC460 FBC780 FBC780BT FBC790BT | $36.30 | View Product |
Cino AMCBA105500DAR0 | USB Cable for Cino scanners - F560 F790WD FBC460 FBC780 FBC780BT FBC790BT | $33.00 | View Product |
Cino GWAC0US0040DBR0 Universal Stand for F780 | Universal AutoSense Handsfree Stand for Cino F560 F790 FBC760 FBC780 scanners. Black | $47.69 | View Product |
Cino RBATL10153R72R0 | Spare Rechargable Battery for F780BT | $72.60 | View Product |
Zebra DC Line Cord for Data Capture System Products | DC Line Cord allowing connection of PWR-BGA12V50W0WW Level VI power supply to all Data Capture System Products except DS36XX/LI36XX. | $11.39 | View Product |
Goodson Plug Pack | Optional PSU - Power Supply Unit (Plug pack) | $32.84 | View Product |
Filename | Size | ||
---|---|---|---|
FuzzyScan Family Quick Start Guide | 2MB | Download | |
F-780 Brochure | 269KB | Download |
