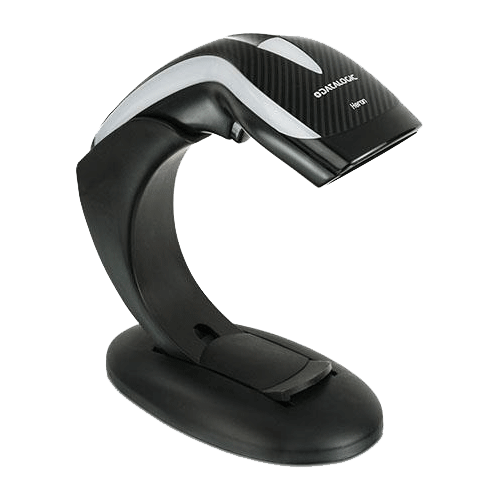

Datalogic HD-3130
POSMarket SKU: Z1863
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The Heron HD-3100 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. The stylish silhouette of the new imager enriched with multiple colour changing lights innovative and modern design material together with the audio speaker amplifies the customers brand experience at the point-of-sale.
Product Overview
- Handheld Linear Imager Scanner
- Innovative and unique design raises the bar for cutting-edge POS checkout experience

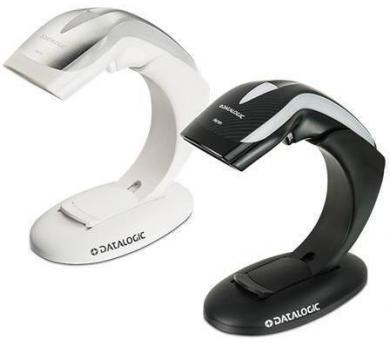

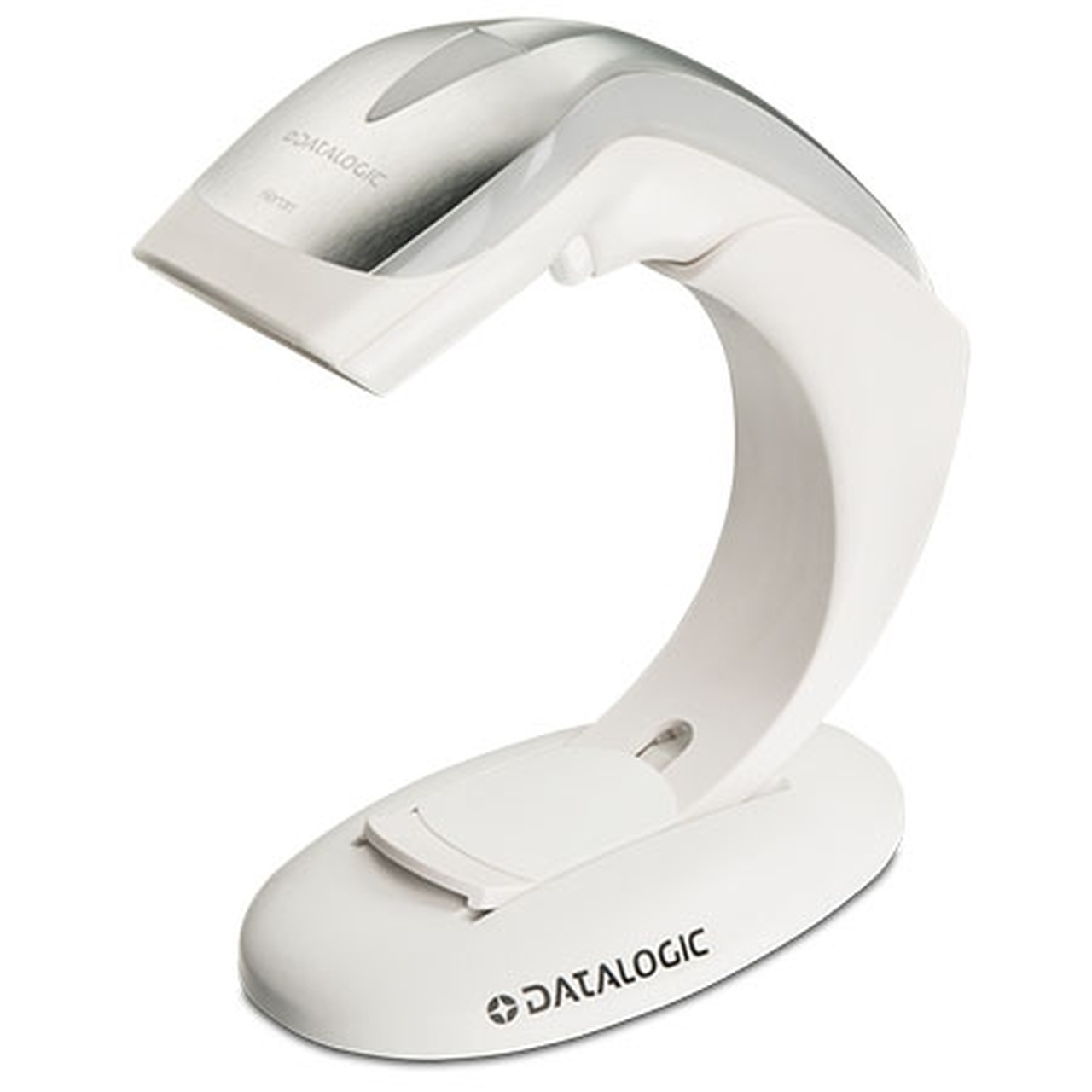

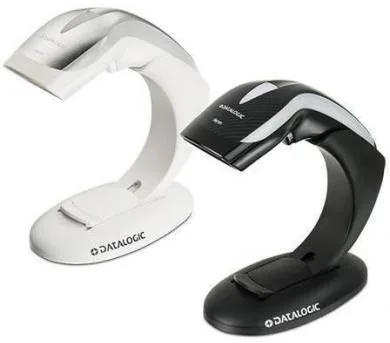

- In-mold decorated top cover - Choice of Carbon-Fibre or Silver designs
- Multiple changing colour LED's on sides and top
- Polyphonic speaker for a wide variety of choices for audio feedback
- Easily customized with logo, top cover, and visual/audio feedback
- Datalogic patented 'Green Spot' technology for aiming and good-read feedback
- Automatic switching between handheld and hands-free operation
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
| Scan Engine | CCD Solid State |
| Light Source | Visible Red LED 617 nm |
| Scan Pattern | Single Line |
| Scan Rate | Up to 270 Reads/sec |
| Contrast Ratio | 15% minimum reflective difference |
| Resolution | Minimum 0.100mm/4 mils |
| Depth of field | 5 mils: 5.0 to 15.0 cm 10 mils: 2.0 to 35.0 cm 13 mils: 2.0 to 40.0 cm 20 mils: 2.0 to 60.0 cm (CODE 39, PCS 90%) Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | N/A |
| Pitch Angle | N/A |
| Skew Angle | N/A |
| Ambient Light Immunity | 0 - 100000 Lux |
| Symbologies supported | Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omni-directional |
| Programming Method | Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port ALADDIN: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Scanner Indicators: Good Read LED Side and upper illumination ''Green spot'' on the code Adjustable Tone & Volume beeper |
| Operating Modes | Trigger, Auto-trigger |
| Communication Type | Corded |
| Interfaces | USB, RS232, Keyboard Wedge Multi Interface |
| Supply Voltage | 5 VDC +/- 5% |
| Power Consumption | Operating (Maximum): <500 mA @ 5 VDC Operating (Typical): <300 mA @ 5 VDC |
| Drop Specification | Withstands repeated drops from 1.5 m onto concrete |
| Environmental Sealing | IP40 |
| ESD Protection | Functional after 16kV Air discharge |
| Operating Environment | 0 to 50 degree C RH 5% - 90% non condensing |
| Storage Environment | -20 - 70 degree C RH 5% - 90% non condensing |
| EMC/Safety Standards | EU RoHS, China RoHS Complient IEC 62471 Exempt Class |
| External Dimensions (WxDxH) | Scanner: 68 x 153 x 152mm |
| Weight | 150g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 90A051230 | Cable RS232 Straight Power P9 and RPE | $24.54 | Add to Cart | |
| 90G001095 | RS232 Coiled Cable - DB9 Female Plug | $34.53 | Add to Cart | |

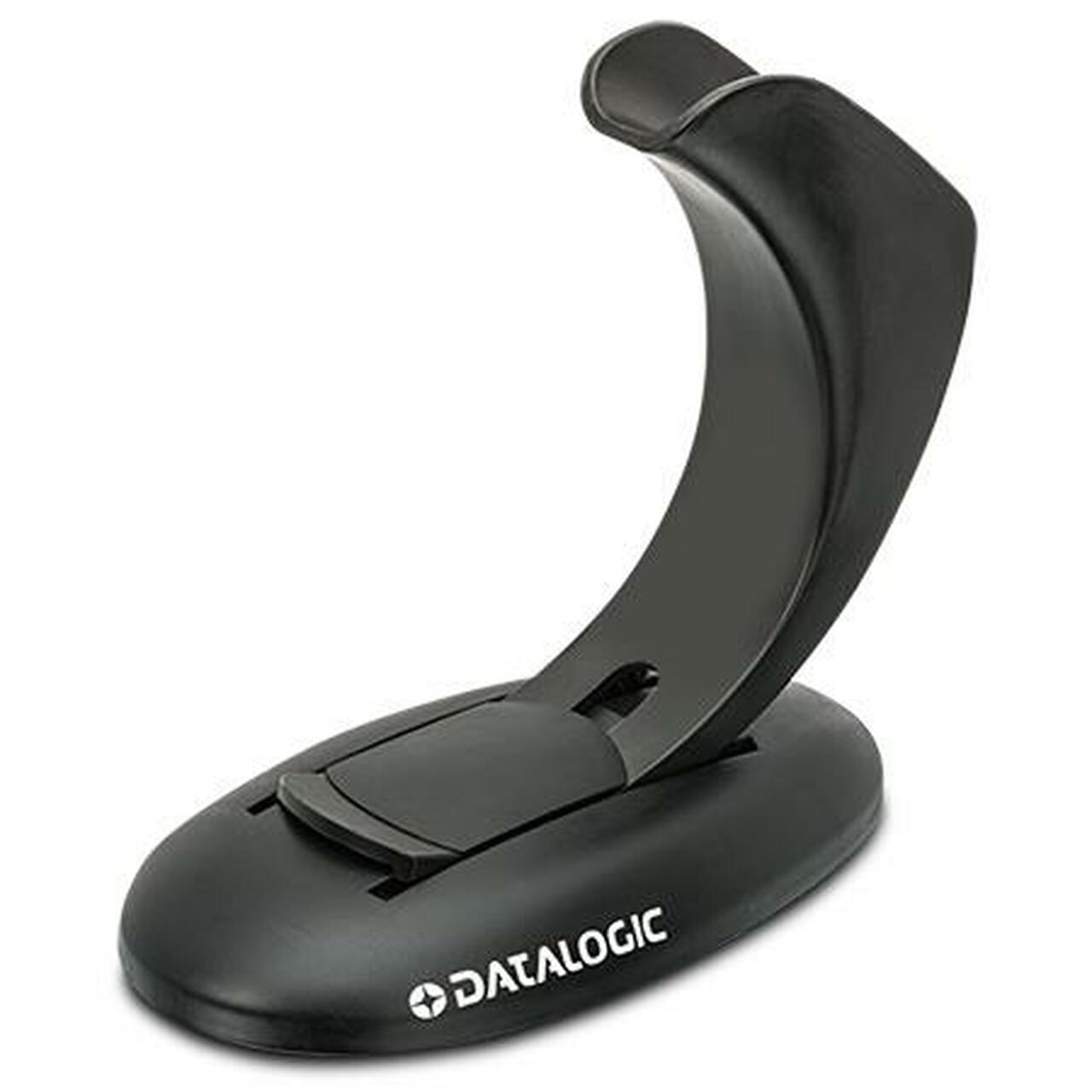

| HD3130-BK | Heron HD3130 Scanner with Stand. No interface cable (order separately) | $CALL | ||
| HD3130-BKK1B | Heron HD3130 Scanner USB interface cable and Stand | $CALL |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
dl hd3100 brochure | 98KB | Download |
|
dlhd3130 product reference guide | 10MB | Download |
|
dlhd3130 quick reference guide | 1MB | Download |
