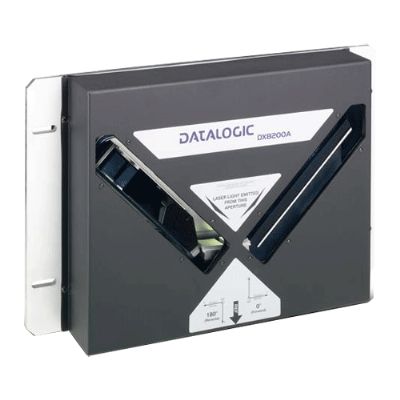

Datalogic DX8200A

$13,530.00 (incl. GST)

POSMarket SKU: Z1882

936201005: DX8200A High Resolution VDC Industrial Scanner, Ethernet interface

Fixed Industrial Laser Barcode Scanner

Product Rating
Product Overview
The new Datalogic DX8200A is a high-performance X-pattern laser scanner capable of omnidirectional bar code reading that provides an economical and easily installed single scanner solution for Transportation and Logistics needs. The X-pattern design allows a single DX8200A do the work of two DS8100A's for many applications. Setup is thus quicker and simpler thanks to the precalibration built into the DX8200A. Connectivity to the most popular networks is assured with Profibus and Devicenet available in addition to Ethernet communications.

Features
  • Omni-directional reading
  • ACR-4 code reconstruction algorithm
  • ASTRA technology for the electronic focusing system
  • PACKTRACK to minimize the gap required between objects and increase system productivity
  • GENIUS multi-language SW for easy scanner configuration/setup
  • Built-in Ethernet TCP/IP, Profibus, and Devicenet connectivity
  • Remote diagnostic monitoring and control by Datalogic WebSentinel
Applications

  • Postal/courier parcel sorting and tracking
  • Automated warehousing identification systems
  • Airport baggage sorting systems
  • Cargo applications
  • Loading/unloading systems
Product Specifications
TypePower adapter
Power Consumption Operational30 Watt
Connectivity TechnologyWired
TTL DecodingDecoded
BarcodesCode 128, Code 2 of 5, Code 39, Code 93, EAN/JAN, UCC/EAN-128, UPC
Interface TypeSerial RS-232/485
Light Source Wave Length 650 nm
BarcodesCode 128, Code 2 of 5, Code 39, Code 93, EAN/JAN, UCC/EAN-128, UPC
Decode CapabilityEAN/JAN, Code 93, Code 39, UCC/EAN-128, Code 128, Code 2 of 5, UPC
Scan Speed1000 scan / sec
Scan Element TypeVisible laser diode
TTL DecodingDecoded
TechnologyLCD Passive matrix
Character Resolution2 lines x 20 characters
Humidity Range Operating0 - 90%
Min Operating Temperature32 Degrees Fahrenheit
Max Operating Temperature122 Degrees Fahrenheit
TypeBarcode scanner
Form FactorIntegrated
Scan Element TypeVisible laser diode
Scan Speed1000 scan/sec
BrandDatalogic
ModelDX8200A-3120
Packaged Quantity1
CompatibilityPC
Width18.5 in
Depth11.8 in
Height5.8 in
Weight24.25 lbs
Total Qty1
Connector TypeDB-25
Weight24.25 lbs
ModelDescriptionPriceStock
936201005 DX8200A High Resolution VDC Industrial Scanner, Ethernet interface $13,530.00
Call
 Add to Cart
ModelDescriptionPrices From
Datalogic CAB-F02 for DX8200A 6K8K FBUS Cable to CBX, 2 metre for Datalogic DX8200A $80.07 View Product
Datalogic TPA000290 DX8200 frame Mounting Frame for Datalogic DX8200 $3,281.69 View Product
Zebra DC Line Cord for Data Capture System Products DC Line Cord allowing connection of PWR-BGA12V50W0WW Level VI power supply to all Data Capture System Products except DS36XX/LI36XX. $11.39 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DX8200A Datasheet 199KB Download
