Datalogic PM9500

from $1,246.03 (incl. GST)

POSMarket SKU: Z1885

This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Handheld Mobile 2D Imager Barcode Scanner

Product Rating
Product Overview

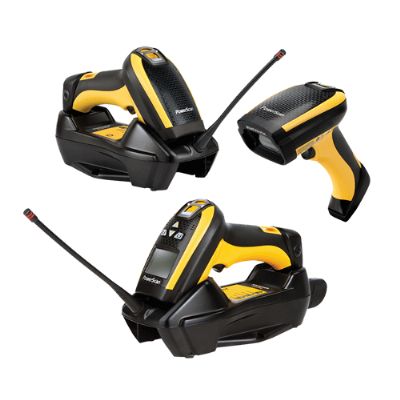

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range.

The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

Long lasting battery life guarantees more than one shift of intensive scanning.

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

Features
  • High-performance Liquid Lens increases the depth-of-field for reading wide and high density codes
  • Snappy omnidirectional reading
  • Soft white light illumination
  • Available with optional display and 4 or 16-key keyboards
  • Industrial Cordless 2D Area Imager Scanner
  • Point-to-point and multi-point transmission
  • Networking and seamless roaming
  • High speed 433 MHz radio communications
  • Datalogics Motionix motion-sensing technology
  • Datalogics 3GL (3 Green Lights) technology and loud beeper for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Product Specifications
Scan EngineArea Imager
Light SourceAiming: 630 - 670 VFD (Visible Laser Diode)
Illumination: LED Array
Scan PatternPM9530; 864 x 544 Pixels
PM9530HP; 1280 x 1024 Pixels
Scan Rate
Motion ToleranceN/A
Image CaptureGraphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture AreaN/A
Contrast Ratio15% Minimum reflective difference
ResolutionPM9530; 1D 4 mil, 2D 7.5 mil
PM9530HP; 1D 2.5 mil, 2D 4 mil
Depth of fieldPM9530;
4 mils - 6.0 to 17.0 cm
40 mils - 4.0 to 85 cm
Data Matrix: 10 mil - 4.0 to 18.0 cm
PDF417: 10 mil - 2.0 to 25.0 cm

PM9530HP
2.5 mils - 2.0 to 6.0 cm
40 mils - 3.0 to 110 cm
Data Matrix: 10 mil - 2.0 to 20.0 cm
PDF417: 10 mil - 2.0 to 30.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle360 Degrees
Pitch Angle+/- 40 Degrees
Skew Angle+/- 40 Degrees
Ambient Light Immunity0 to100,000 Lux
Symbologies supported1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming MethodManual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin: Windows configuration program
Driver availableJavaPOS, OPOS Utilities
Indicators/ControlsPM8500: No Display, 1 x Scan Key
PM8500-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM8500-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic's 3GL (Three Green Lights) technology and loud beeper for good read feedback
Datalogic Green Spot on the Code
Dual good read LED's
Communication TypeDatalogic Star Cordless System
Communication Technology433.92 Mhz Radio
Effective radiated power: < 10mW
Range (open Air): up to 50 m
Seamless roaming
Two way communications
Point to Point or Multi-point configuration
up to 32 Scanners to a base
Interfacesto base:
BC9030: RS232, KBW, USB, Wand Multi Interface
BC9160: RS232, KBW, USB, Wand, RS485 Multi Interface
BC9180: Industrial Ethernet
Supply VoltageBattery: 2150 mAh Li-ion rechargeable
Charge time with external power supply: 4 Hours
Charge time with Host power: 10 Hours
Reads per full charge: 30,000+
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power ConsumptionExternal Power Supply: 800 mA @ 10 VDC (Charging), 150 mA Typical Operation
POT: Max. 500mA
Drop SpecificationDesigned to withstand 50 x 2M drops to concrete
Environmental SealingIP65
ESD Protection+/- 20 kV air discharge
Operating Environment-20 Degrees ~ 50 Degrees Celsius, Relative Humidity up tp 95% none condensing
Battery Charging: 0 to 45 Degrees Celsius
Storage Environment-40 Degrees ~ 70 Degrees Celsius, Relative Humidity up tp 95% none condensing
EMC/Safety StandardsChina RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED
External Dimensions (WxDxH)PM9500: 74 x 110 x 212 mm
Cradle: 95 x 240 x 108 mm
WeightPM9500: 380 g
PM9500-D: 410 g
PM9500-DK: 414 g
Cradle: 380 g
ModelDescriptionPriceStock
DLPM9500RKIT-U PM-9500 SR Serial Kit - Includes Standard Range Scanner with Removable battery, Cradle, Power supply and Serial Cable $1,246.03
Call
Add to Cart
BU10384 PM-9500 SR USB Kit - Includes Standard Range Scanner with Removable battery, Cradle, Power supply and USB Cable $1,246.03
Call
Add to Cart
PM9500-433RB PM-9500 SR Scanner Only, Standard Range Scanner, 433Mhz, with Removable battery $CALL
Call
PM9500-HP433RB PM-9500 HP Scanner only, with High performance Imager, 433Mhz, removable battery $CALL
Call
PM9500-DKHP433RB PM-9500 HP Scanner only, with high performance liquid lens, Display, 16 key Keypad, Removable battery $CALL
Call
PM9500-DHP433RB PM-9500 HP Scanner only, with High performance liquid lens, Display, 4 key keypad, removable battery $CALL
Call
ModelDescriptionPrices From
Datalogic 5.2V Power Supply 5.2V 650 mA Power Supply for Gryphon Magellan and Quickscan scanners $52.75 View Product
Datalogic PC-P080 PowerScan 8xxx Protective Case amp Belt Holster $57.30 View Product
Datalogic Take-Up Reel PowerScan Industrial Take up Reel $80.96 View Product
Datalogic CAB-433 Female DB9 RS-232 9pin straight cable power inlet. $41.87 View Product
Datalogic CAB-524, USB A coiled POT USB type A, coiled power over terminal cable for Datalogic PBT8300 PD7100 PD8300 PD8500 PD9500 PM8300 PM9500. $47.31 View Product
Datalogic PC-P090 Case/ Belt Holster PowerScan 9xxx series Protective Case/ Belt Holster $35.42 View Product
Datalogic HLS-P080 Universal Holster Powerscan universal holster for use with PBT9100 PBT9300 PBT9500 PD9130 PD9330 PD9500 PM9100 PM9300 PM9500 $74.64 View Product
Zebra DC Line Cord for Data Capture System Products DC Line Cord allowing connection of PWR-BGA12V50W0WW Level VI power supply to all Data Capture System Products except DS36XX/LI36XX. $11.39 View Product
Datalogic Ease Of Care Pm/Bt95 Base 5Day Rnw Ease Of Care Pm/Bt95 Base 5Day Rnw $16.45 View Product
Datalogic Ease Of Care Pm/Bt95 Base 5Day 5yr Ease Of Care Pm/Bt95 Base 5Day 5yr $31.63 View Product
Datalogic Ease Of Care Pm/Bt95 Base 5Day 3Yr Ease Of Care Pm/Bt95 Base 5Day 3Yr $16.45 View Product
Datalogic Ease Of Care Comp Pm/Bt95 Base 2Day Rnw Ease Of Care Comp Pm/Bt95 Base 2Day Rnw $20.24 View Product
Datalogic Ease Of Care Comp Pm/Bt95xx Base 2d/3y Ease Of Care Comp Pm/Bt95xx Base 2d/3y $25.30 View Product
Datalogic Multi Battery 4-Bay Pm9500 Pm9501 Multi Battery 4-Bay Pm9500/Pm9501 $366.85 View Product
Datalogic Powerscan Base Dual Charge 433 Ethernet Powerscan Base /Dual Charge 433/Eth $556.60 View Product
Datalogic Powerscan Base Charge/Comms 433MHz Powerscan Base/Charge 433MHz PM9500/PM9501 $411.13 View Product
Datalogic CAB-434 CAB434 RS232 PWR 9P Fem Coil $46.81 View Product
Datalogic CAB433 RS232 9PIN Fem STR CAB433 RS232 9PIN Fem STR $43.01 View Product
Datalogic Ease Of Care PM BT95XX SR 5-Day 3YR Ease Of Care PM/BT95XX SR 5-Day/3YR $56.93 View Product
Datalogic PM9500 PM9501 Battery Desk Dock Desk dock battery for the Datalogic PM9500 and PM9501. $297.28 View Product
Datalogic Power supply 12v Power supply 12v DC for Datalogic with power cord $39.85 View Product
Datalogic EASE OF CARE COMP PM/BT91XX 2 DAY/3YR Datalogic Ease of Care, PM/BT91XX, 2 DAYS, 3 YEARS, COMPREHENSIVE $104.36 View Product
Datalogic CAB-479, DB9 POT coiled RS232 9P Female coiled, 7.6m cable for Datalogic Scanner $100.95 View Product
Datalogic CAB-438, USB A straight USB A Straight cable for PBT7100 PBT8300 PBT9300 PD7100 PD8300 PD8500 PD9500 PM8300 PM9300 PM9500 $39.09 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document PowerScan PM9500 datasheet 151KB Download
PDF Document PowerScan PM9500m Quick Reference Guide 1MB Download
PDF Document Power Scan 9500 Product Reference Guide 10MB Download
