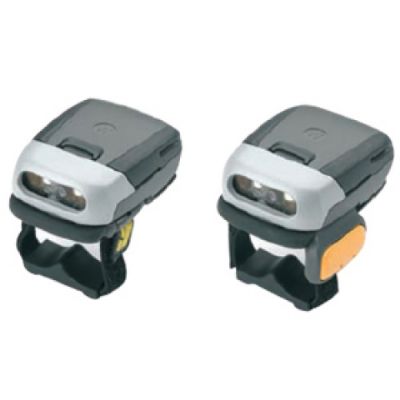

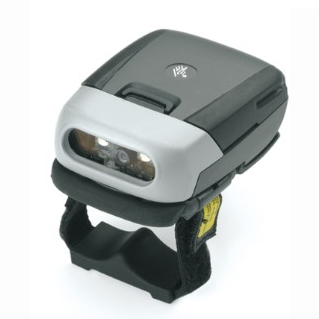

Zebra RS507 Ring Imager

from $1,171.39 (incl. GST)

POSMarket SKU: Z4053

This model is available in 5 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Hands-free cordless (or corded) 1d/ 2D Imager - Increase productivity in scan intensive applications with maximum flexibility, comfort, functionality and performance.

Product Rating
Product Overview
Give your workers the superior blend of technology, form and function needed to achieve a new level of productivity in package handling and warehouse applications with the RS507. Advanced ergonomics and Bluetooth cordless freedom deliver unparalleled freedom of movement and user comfort - regardless of hand size or hand preference. Best-in-class scanning performance includes stunning laser-like performance on both 1D and 2D bar codes and omnidirectional scanning, eliminating the need to align bar code and scanner. And as the most rugged scanner in its class, the RS507 offers reliable performance in demanding environments - from the loading docks to the warehouse floor and assembly line.

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning barcodes to meet government regulations for tracking and tracing of product the Zebra RS507 Ring Hands-Free Imager delivers the superior blend of technology form and function your workers need to achieve a new level of scanning efficiency in your operations.

RS507 Hands-Free Imager, a 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer

Features
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper
Product Specifications
General
TypeBarcode scanner - portable
Barcode
Interface TypeBluetooth 2.1
Minimum Bar Width5 mil
Scan Element Type2D imager
Sensor Resolution752 x 480
Light Source Wave Length655 nm
Scan ModeSingle-pass
Frame Rate60 frames / sec
Max Working Distance24.6 in
Skew (Degrees)60
Pitch (Degrees)60
Decode CapabilityCode 93, Industrial 2 of 5, Code 39, QR code, MaxiCode, Aztec code, Code 32, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Australian Post, British Post, Japanese Post, Kix (Netherlands) Post, IATA 2 of 5, UPC-E1, Trioptic Code, EAN-UCC Composite, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited
Connectivity TechnologyWireless
OK NotificationBeeper, LED indicator
FeaturesTriggerless
Networking
Wireless ConnectivityBluetooth 2.1
Processor
Clock Speed624 MHz
Miscellaneous
Compliant StandardsICES-003 Class B, FCC Part 15 B, AS/NZS 60950-1, EMC, R&TTE, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1
Power
Battery1 x lithium ion
Dimensions & Weight
Width2.1 in
Depth2.9 in
Height1.1 in
Weight4.28 oz
Environmental Parameters
Min Operating Temperature-4 F
Max Operating Temperature131 F
Humidity Range Operating5 - 85%
Drop Specification6 ft to concrete
ModelDescriptionPriceStock

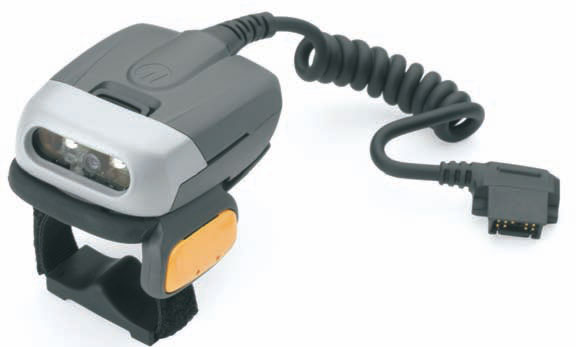

RS507X-IM20000CTWR RS507X Ring Scanner. 2D Standard Range, Corded adapter to the WT4X wearable terminal $1,349.76
Call
Add to Cart
RS507X-IM20000ETWR RS507X Ring Scanner. 2D Standard Range, Bluetooth, Trigger, Extended Battery $1,277.65
Call
Add to Cart
RS507X-IM200000TWR RS507X Ring Scanner. 2D Standard Range, Bluetooth, Trigger, No battery $1,171.39
Call
Add to Cart
RS507X-IM20000STWR RS507X Ring Scanner. 2D Standard Range, Bluetooth, Trigger $CALL
Call
RS507X-IM20000SNWR RS507X Ring Scanner. 2D Standard Range, Bluetooth, Without manual trigger $CALL
Call
ModelDescriptionPrices From
Zebra OneCare Select for RS5XXX Building on top of Essential support, Zebra OneCare Select provides additional capabilities for one DS8108 , including: $174.57 View Product
Zebra AllTouch Terminal Emulation Support Software Service Contracts for Zebra products. $65.78 View Product
Zebra Enterprise Browser 2 Software Support 1 year software support for Zebra Enterprise Browser $29.10 View Product
Zebra SOTI MobiControl Software Support 3 Year Software Support for SOTI. $5.06 View Product
Zebra TekTerm Client Software Support 1 year maintenance for TekTerm Client (TekTerm Server maintenance is to be purchased separately). $82.23 View Product
Zebra OneCare Essential for RS5XXX Zebra OneCare Essential service is our foundational service offering, with comprehensive coverage, technical support during your local business hours and 3-day turnaround time on repairs. $121.44 View Product
Zebra SOTI Software Support Software Support for SOTI $46.81 View Product
Zebra OneCare Essential for OMNICH Comprehensive Repair/Replace, Software & Technical Support for the OMNICH. $55.66 View Product
Zebra OneCare Essential for WAP3XX Comprehensive Repair/Replace, Software & Technical Support for WAP3XX. $225.17 View Product
Zebra Onecare Essential RS50XX 5 Year Comp+Comm+Dash Onecare Essential RS50XX 5 Year Comp+Comm+Dash $647.68 View Product
Zebra Finger Strap Triggerless rs507 10pk Finger Strap Triggerless rs507 10pk $94.88 View Product
Zebra Multi dock Kit Battery 8-bay rs507 Multi dock Kit Battery 8-bay rs507 $807.07 View Product
Zebra psu ac Dock Sac5070 psu ac Dock Sac5070 $101.20 View Product
Zebra Battery Extended 1940Mah rs507 Battery Extended 1940Mah rs507 $120.18 View Product
Zebra Finger Strap rs507 10 Pack Finger Strap rs507 10 Pack $86.02 View Product
Zebra Pad Rerplacement Finger rs507 10pk Pad Rerplacement Finger rs507 10pk $97.41 View Product
Zebra Finger Clamp Trigger rs507 Finger Clamp Trigger rs507 $144.21 View Product
Zebra Clip Handstrap rs507 10pk Clip Handstrap rs507 10pk $32.89 View Product
Zebra RS507 Standard Battery The RS507 Standard Battery is a reliable power source designed for use with the RS507 ring scanner. $83.49 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Zebra RS507 Product Reference Guide 11MB Download
PDF Document Zebra RS507 Quick Reference Guide 3MB Download
PDF Document Zebra RS507 Brochure 677KB Download
