POSMarket SKU: Z2123
The reliable solution for bi-directional communication with contactless chip cards.

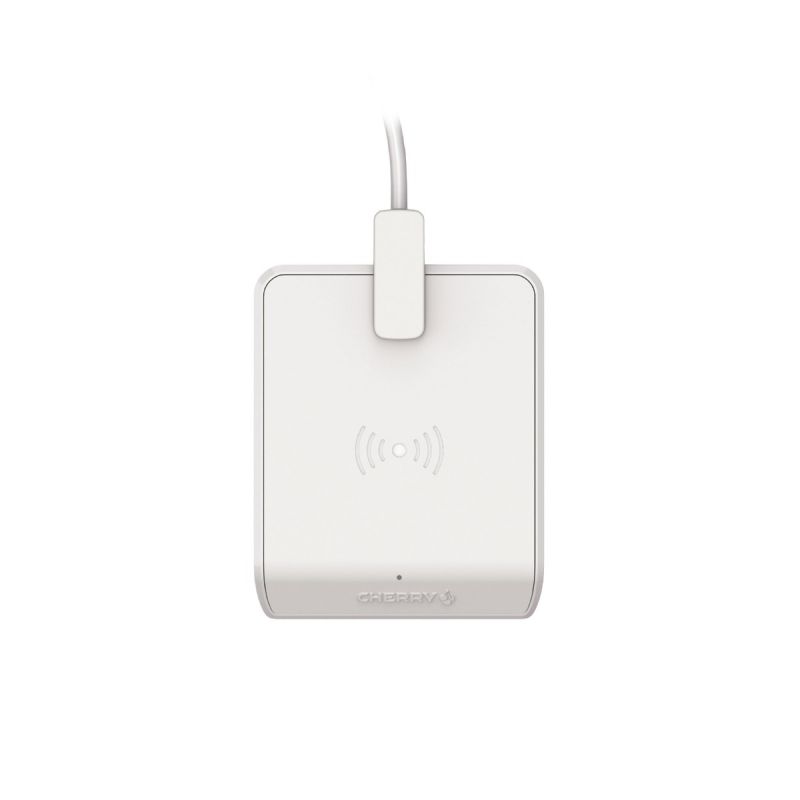

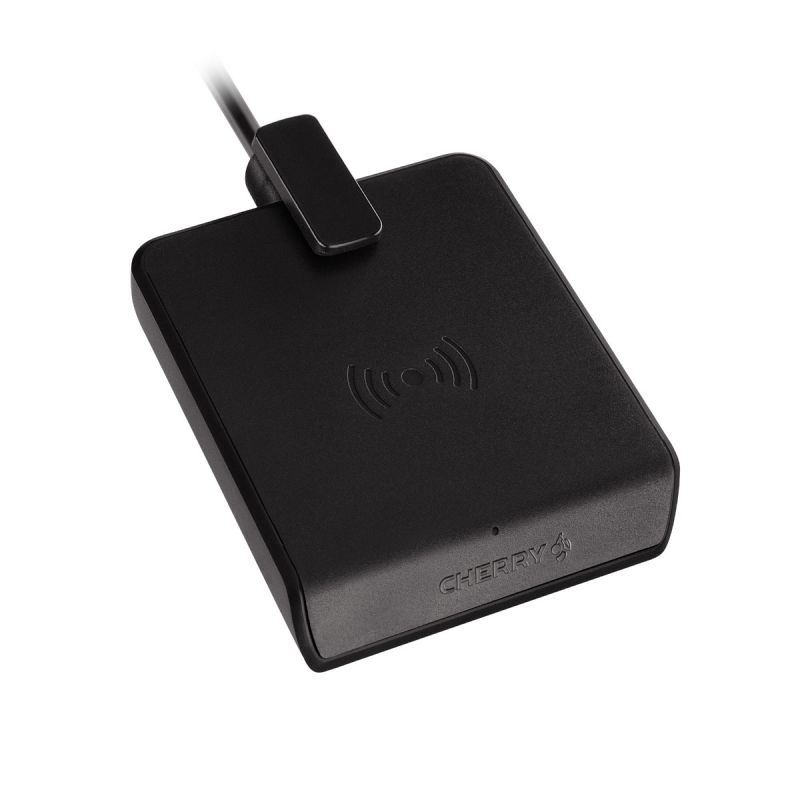

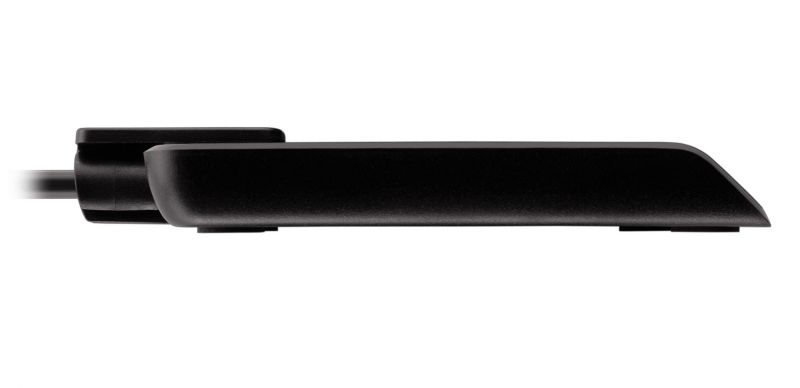

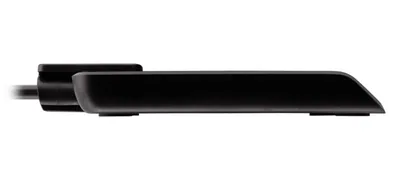

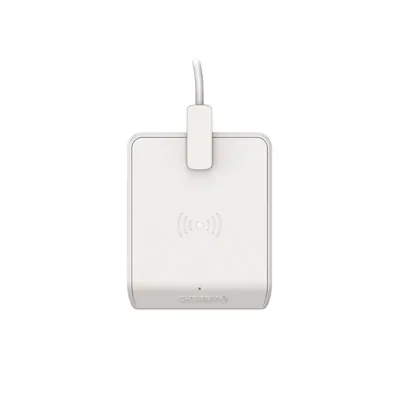

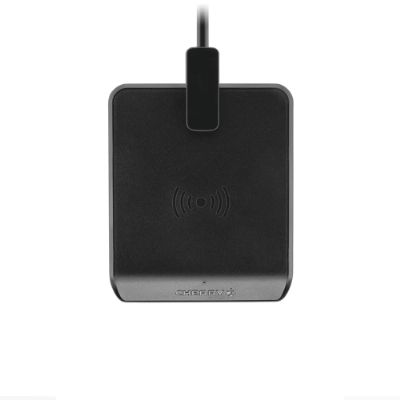

| TC-1200 chip card reader | |
| Reader Type | Contact Free in accordance with ISO14443A, ISO14443B, ISO15693 |
| Card Feed Method | Contactless Swipe |
| Read/Write Function | Read only |
| Card Type | Compatible Chipcards types: MIFARE, DESFire, iCLASS |
| Card Feed Speed | N/A |
| Card Data Format | N/A |
| Chipcard Protocol | T=CL |
| Transmission Speed | Reader<==>Card: max. 848 kBit/sec, 26 kBit/sec (ISO15693) Reader<==>System: max. 12Mbits/sec |
| Software Interface | CT-Api, PC/SC |
| Programming Method | N/A |
| Indicators/Controls | LED Status display |
| Communication Type | Cabled, Bi-directional Communication |
| Interfaces | USB - Ver. 2.0 |
| Supply Voltage | 5 V 5 % |
| Power Consumption | Typical. 230 mA |
| Operating Environment | 0 to 50 C RH 5 - 90 % (non-condensing) |
| Storage Environment | -20 to 65 C RH 5 - 90 % (non-condensing) |
| External Dimensions (WxDxH) | 76 x 62 x 11 mm |
| Weight | approx. 75 g (excl. cable) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| JT-0200WB-2 | TC-1200 Reader. USB Interface, Black | $90.13 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Cherry ST-1144 | Smart, stable and can be operated with one hand. | $67.93 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
CHERRY TC 110012001300 Corded Terminals operating manual | 242KB | Download |
|
Cherry TC1200 Datasheet | 29KB | Download |
