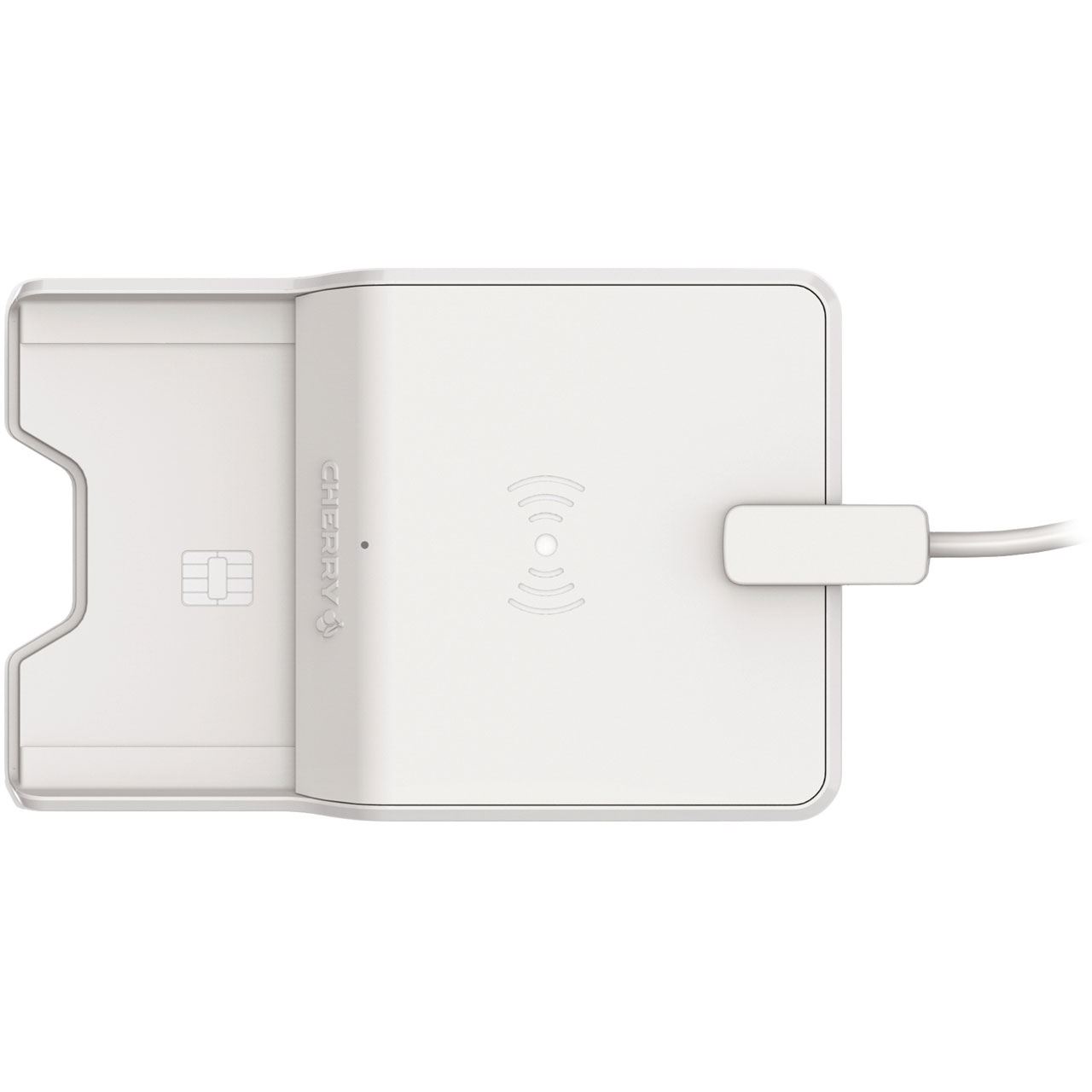

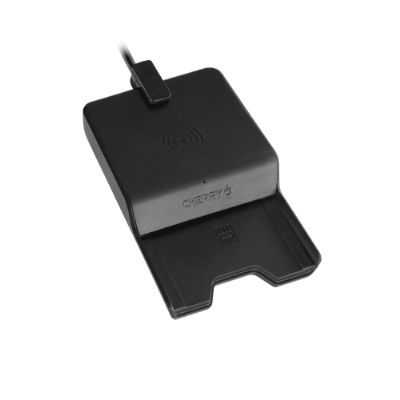

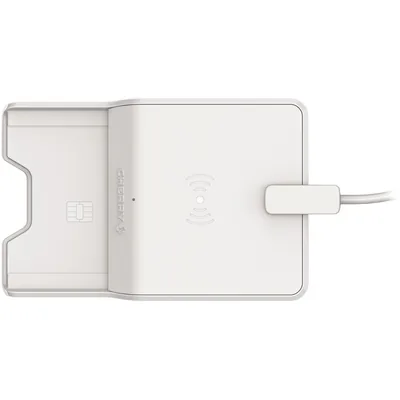

Cherry TC-1300
POSMarket SKU: Z2124
CHERRY TC 1300 - the reliable solution for bidirectional
communication with contact and contactless chip cards.
Product Overview
- Class 1 smart card terminal
- Bidirectional communication for contact and contactless smart cards (dual interface)
- LED status display
- High-quality workmanship, state-of-the-art technology and intelligent design
- Card guide in housing for one-handed operation and rubber surfaces to prevent slipping
- Attachable card clip to fasten contactless smart cards
- Data exchange via loop contact with approx. 100,000 mating cycles
- Connection via USB 2.0 port
- 1.75 m cable length for maximum freedom of movement
- Software supports Microsoft Windows, Linux and Mac OS X operating systems
- Supported standards: PC/SC, CCID, CT-API
Product Specifications
| Reader Type | Smart Card Reader: Mechanical and Contact Free Mechanical in accordance with ISO7816 Contact Free in accordance with ISO14443A, ISO14443B, ISO15693 |
| Card Feed Method | Mechanical feed Contactl free Reader |
| Read/Write Function | Mechanical: Read and Write Contactless: Read only |
| Card Type | Compatible Chipcards types: MIFARE, DESFire, iCLASS Reads and Writes to all ISO7816 cards |
| Card Feed Speed | N/A |
| Card Data Format | N/A |
| Chipcard Protocol | T=0, T=1, T=CL |
| Transmission Speed | Reader Card: max. 420kBit/sec (ISO7816), 424 kBit/sec (ISO14443) , 26 kBit/sec (ISO15693) Reader System: max. 12Mbits/sec Chip Card pulse Frequency; up to 8 MHz |
| Software Interface | CT-Api, PC/SC, CCID |
| Programming Method | N/A |
| Indicators/Controls | LED Status Display |
| Communication Type | Cabled, Bi-directional Communication |
| Interfaces | USB - Ver. 2.0 |
| Supply Voltage | 5 V 5 % |
| Power Consumption | Typical. 160 mA |
| Operating Environment | 0 to 50 C RH 5 - 90 % (non-condensing) |
| Storage Environment | -20 to 65 C RH 5 - 90 % (non-condensing) |
| External Dimensions (WxDxH) | 115 x 75 x 16.51 mm |
| Weight | approx. 105 g (excl. cable) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| JT-0300WB-02 | TC-1300 Reader. USB interface, Black | $103.19 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
chtc1300 datasheet | 29KB | Download |
