POSMarket SKU: Z1788
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

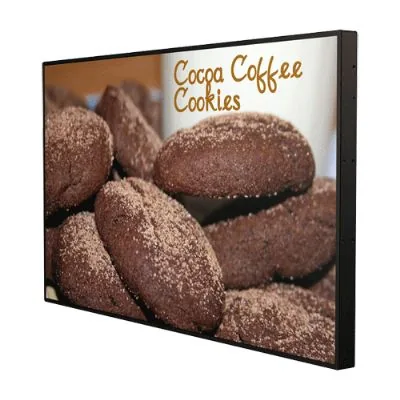

The DSD-55HE is a 55" LED LCD monitor specially designed for digital signage, high brightness with narrow bezel. Very well suited for Electronic Menu boards and high visibility in-store advertising.
| DSD-55HE digital signage | |
| Display | 55" LED Backlit LCD Display Aspect Ratio: 16:9 Colour/Gray Scale: 1073M/10bits Pixel Pitch (HxW): 0.21x0.63 |
| Display Orientation | Portrait or Landscape |
| Resolution | 1920 x 1080 |
| Viewing Area | N/A |
| Contrast Ratio | 4000:1 |
| Brightness | DSD55HE: 450 nits DSD55HE2: 700 nits |
| Response time | (G-to-G) 6.5 ms |
| View Angle | (H/W) 178/178 |
| Tilt Angle | N/A |
| Touch Panel | DSD55HE2-IR: 2 Point IR Touch with USB Interface 4mm AG + AF Tempered Glass |
| I/O Ports | RS232: in x1 out x1 (Used for API utility support) Audio in x 2 Audio out x 1 |
| Input Signal | HDMI x 2 VGA x 2 |
| Audio | Connector for 8W x 2 External Speakers |
| OS Support | N/A |
| Environmental Sealing | N/A |
| Operating Environment | 0 ~ +40 C, 10 ~ 80% RH |
| Storage Environment | -20 ~ +60 C, 10 ~ 80% RH |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | Max. 120W at Standby Max. 1.5W |
| External Dimensions (WxDxH) | No Touch: 1239mm x 49mm x 710mm Bezel Width 11.8mm Touch: 1286mm x 67.2mm x 755mm Bezel Width 34.8mm |
| Weight | No Touch: 28 Kg Touch: 30 Kg |
| EMC/Safety Standards | C-Tick, CE, FCC, CB, BSMI. RoHS |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 91.DSD01.G100 | DSD55 55" LCD Monitor, 700 Nits, narrow Bezel | $3,086.88 | Add to Cart | |
| 91.DSD01.G250 | DSD55 55" LCD Monitor, 450 Nits, narrow Bezel | $2,454.38 | Add to Cart | |
| 91.DSD01.G140 | DSD55 55" LCD Monitor, 700 Nits, with IR Touch | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Atdec TH-WALLM Telehook Wall | TELEHOOK range of single display wall mounts. | $36.09 | View Product |
| AOPEN ChromeBox Commercial II | A highly reliable and powerful device that operates 24/7, suitable for digital signage, kiosk and video wall applications. | $1,065.63 | View Product |
| Atdec Spacedec AD-30100-WF Vesa Thin Wall Mount | The AD-30100-WF securely supports displays weighing up to 30kg and sits just 14. | $37.13 | View Product |
| Goodson HDMI Cable Premium | 1 meter Premium High Speed HDMI Cable | $19.60 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Aopen dsd55he datasheet | 638KB | Download |
|
Aopen dsd55he2 datasheet | 293KB | Download |
|
Aopen dsd55he2 ir datasheet | 837KB | Download |

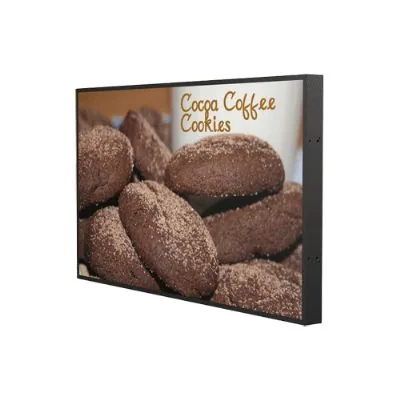

AOPEN DSD-42HE
Digital Signage > Digital Media Displays
AOPEN DSD-65HE
Digital Signage > Digital Media Displays

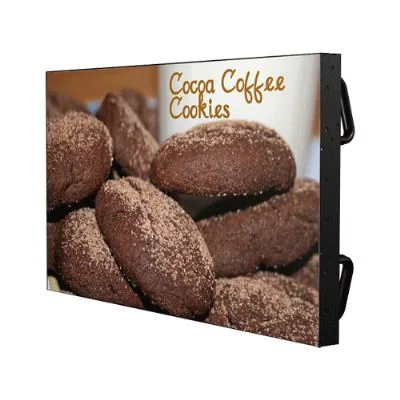

AOPEN DSD46-VE
