Posiflex HC-1021

from $1,874.47 (incl. GST)

POSMarket SKU: Z2023

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The HC-1021P Series is a high-end infotainment terminal with a 21.5" touchscreen display. Well-suited to meet durability and aesthetic requirements, the HC-1021P Series offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions.

Product Rating
Product Overview
  • 21.5" Touch Terminal
  • CPU: Intel Braswell N3160 Quad Core, up to 2.24GHz
  • Options: built in 2D Scan Engine, MSR, TV Tuner with remote, RFID and Finger print Scanner
  • VESA 100 mm standard mounting holes allows HC-1021P to meet varied mounting demands
  • Applications: Kitchen Video, Price Checker, Bedside Terminal, Interactive Kiosk
Product Specifications
CPUIntel Braswell N3160 CPU, 1.6 GHz / 2.24 GHz [Burst]
MemoryDDR3L 1600 SO-DIMM x 2, max. 8 GB in 2 slots, Default 4 GB
Storage device(s)1 x SATA + 1 x micro SD
In Australia Standard with 500 GB SATA HDD can also be ordered with SSD Drives
Display21.5" TFT LED Backlit LCD Display
Resolution1920 x 1080
Tilt AnglePole or Wall mount depended
Touch PanelBezel Free: Projected Capacitive Touch supporting 10pts multi-touch with antiglare
I/O Ports4 x RS-232 Ports (4 x DB9, with 5V/12V Support
5 x Standard USB Ports (2 x USB3.0, 5 x USB2.0)
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x HDMI Port
2 x mini-PCLe internal expansion slot
1 x Front Facing 5MP auto focussing Camera
Audio3W Speaker Internal x 2 + Mic-in/ Line-out
OS SupportWindows IoT, Windows Embedded 8.1 Industry, Windows 7
Environmental SealingN/A
Operating Environment0 ~ +50 C 20 ~ 90% RH with SSD
0 ~ +40 C 20 ~ 90% RH with HDD
Storage Environment-20 ~ +70 C 10 ~ 90% RH
Power Supply12V DC 130W Power Adapter
(Optional 150W when equiped with 2nd Display)
External Dimensions (WxDxH)546.63mm x 6.1mm x 377.49mm
Weight6.6 Kg
ModelDescriptionPriceStock
HC1021P0465200 21.5" Touch screen, Intel N3160 Quad Core Processor, 4G RAM, 500G HDD, Windows 10 IoT OS $2,083.47
< 10
 Add to Cart
PFHC1021B-4050Z 21.5" Touch screen, Intel N3160 Quad Core Processor, 4G RAM, 500G HDD, Windows POSReady 7 64 Bit OS $2,181.44
Call
 Add to Cart
HC1021P8967200FJ HC-1021P 21.5" fanfree PCAP touch terminal, without base; 4xS, 2 x USB3.0, 5 x USB2.0, 2 x LAN, 1 x VGA, 1 x HDMI, 1xline-out/mic-in, 2 x SPK, Intel Braswell N3160 Quad Core, up to 2.24GHz (2M cache), 4GB DDR3L, 128GB SATA SSD, WI $1,874.47
Call
 Add to Cart
ModelDescriptionPrices From
Atdec AT-APA Pole mounting The all new Atdec POS Pole mounting solution. $27.50 View Product
Atdec SD-POS The POS Multi is perfect for point of sale applications, including touch screens thanks to the ability to lock the display in the desired position. $88.55 View Product
Atdec SD-POS-HA A highly versatile mount thats user-friendly, safe and secure, and guaranteed to provide a professional, clean finish to any desktop, point of sale, or touch screen application. $114.81 View Product
Ergonomic Solutions Spacepole Essentials SpacePole PoS Stands Mounts or our Essentials range of solutions were created to work with your existing hardware or furniture by offering robust, ergonomically designed mounting options that are built to last. $171.88 View Product
Posiflex 39004023000 12V 60W power adaptor $85.80 View Product
Zebra AllTouch Terminal Emulation Support Software Service Contracts for Zebra products. $65.78 View Product
Ergonomic Solutions SpacePole VESA Floor Mount The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. $687.50 View Product
Ergotron Wall Track Mounting Kit Wall Track Mounting Kit for Hollow Walls $72.19 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DataSheet 454KB Download
PDF Document User Manual 539KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Contact our Team
Warehouse Locations
Warehouse Locations
NSW
  • Huntingwood 2148
  • Rosehill 2142
  • Rydalmere 2116

QLD
  • Acacia Ridge 4110
  • Tingalpa 4173

VIC
  • Box Hill 3128

WA
  • Burswood 6100

Related Products

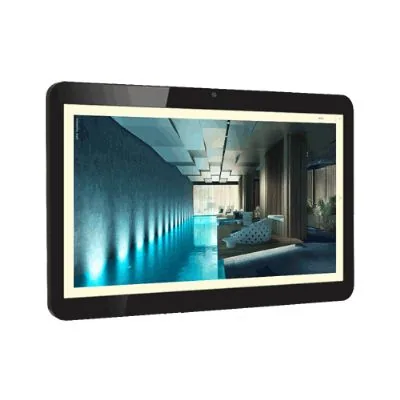

AOPEN WT-15MFI AOPEN WT-15MFI

Digital Signage > Digital Media Touch Systems

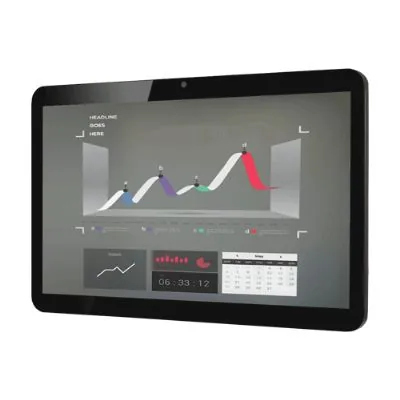

AOPEN WT-19MFI AOPEN WT-19MFI

Digital Signage > Digital Media Touch Systems

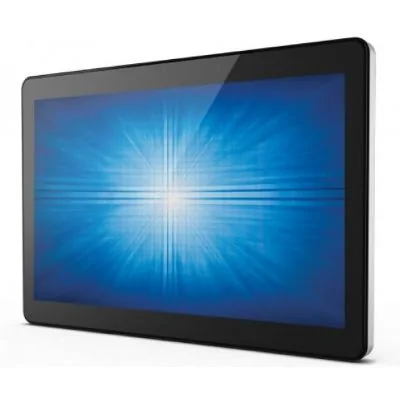

ELO I-Series Interactive Signage ELO I-Series Interactive Signage
