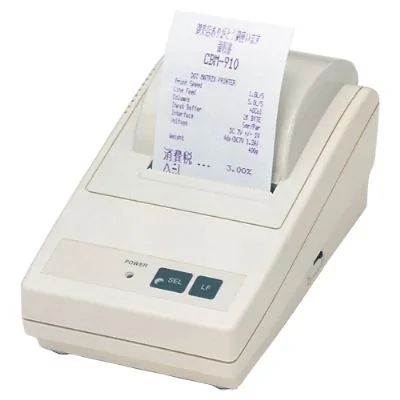

Citizen CBM-910II

from $378.13 (incl. GST)

POSMarket SKU: Z1855

This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.

Product Rating
Product Overview
  • Serial Dot Matrix Printing
  • Up to 2.5 LPS printing speed
  • Palm Size
  • 2K Printer Buffer
  • 3 ply Printing Capable
  • Data logging device
  • CBM910 mark II version, fully compatible with the iDP3110 series
Product Specifications
Printing MethodSerial Impact Dot Matrix
One-way Printing
Printing Width24 Column printer; 144 dots/line
40 Column printer; 180 dots/line
Dot Pitch24 Column printer (5+1) x 8
40 Column Printer (4+0.5) x 8
Printing Speed (Max.)24 Column printer Approx. 2.5 lines/sec
40 Column Printer Approx. 1.8 lines/sec
Number of Columns24 Column printer: 24
40 Column printer: 40
Character Size24 Column printer (5+1) x 8
40 Column Printer (4+0.5) x 8
Character Table/Code PagesAlphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/CBM-910 Emulation
Bar-code TypeN/A
Line Spacing3.52mm
Paper feed methodFriction
Paper TypePlain Bond Paper
or 2 ply Paper
Paper Width57.5 mm +/-0.5 mm
Paper Roll DiameterMax 60.0mm
Paper Thickness0.13 mm or less
Paper Supply Method
Auto CutterN/A
Indicators/ControlsPower LED Green
Paper LED Orange
Error LED Red
EmulationCBM910 & iDP3110 (Selectable with memory switch)
Print Buffer2K bytes / 72 bytes selectable with Memory switch on Serial Model
NV MemoryN/A
SensorsPaper near end Sensor
Drawer PortN/A
External Device PortN/A
InterfacesSerial (RS-232C compliant),
or Parallel (IEEE1284 compliant)
Driver availableWindows95/98/98SE/ME/NT/XP (Text only driver supports XP/Vista/7/8)
Software UtilitiesCBM9x0II Customization Ver.1.0.0.0
Power SupplyOptional AC Adapter
Rated input: 240 V, 50/60 Hz
Rated output: DC7 V +/-1V
Power ConsumptionApprox. 7 VA (Normal printing), Approx. 0.5VA (Standby)
External Dimensions (WxDxH)106 x 180 x88 mm
Weight0.47 Kg
Operating Environment0 to 40 °C, 10 to 85 % RH (no condensation)
Storage Environment-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability24 Column Printer: MCBF 1.5 million lines
40 Column Printer: MCBF 1.0 million lines
EMC/Safety StandardsFCC class B, TUV-GS, CE marking, C-tick
ModelDescriptionPriceStock
910-II-24PFADC CBM-910II Printer, Parallel interface, 24 Column, No power supply (add if required) $378.13
Call
 Add to Cart
910-II-24RFADC CBM-910II Printer, Serial interface, 24 Column, No power supply (add if required) $378.13
Call
 Add to Cart
910-II-40PF-A 230V CBM-910II Printer, Parallel interface, 40 Column, No power supply (add if required) $378.13
Call
 Add to Cart
9140RF CBM-910II Printer, Serial interface, 40 Column, No power supply (add if required) $378.13
Call
 Add to Cart
ModelDescriptionPrices From
POSMarket Ink Ribbons Ink printer ribbons and supplies. $4.54 View Product
POSMarket Paper Rolls Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. $4.62 View Product
Goodson AD7V16N Power Adaptor for citizen iDP-311x, CBM910 $32.84 View Product
Ergonomic Solutions SpacePole Micro USB Curly Cable Micro USB Curly Cable for Spacepole Dock & Charge Tablet Mount (Black). $34.65 View Product
Calibor Bond Paper 57X57 50 Rolls box Calibor Bond Plain Paper Roll $25.41 View Product
Zebra Software License Printer Enterprise Software License Printer Enterprise $1,313.07 View Product
POSMarket Serial Printer Cable RS232 serial Printer Cable $19.80 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document cbm9x0 catalog datasheet 132KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Contact our Team
Warehouse Locations
Warehouse Locations
NSW
  • Huntingwood 2148
  • Rosehill 2142
  • Rydalmere 2116

QLD
  • Acacia Ridge 4110
  • Tingalpa 4173

VIC
  • Box Hill 3128

WA
  • Burswood 6100

Related Products

Bixolon SRP-275III Bixolon SRP-275III

Receipt Printers > Impact-Dot-Matrix

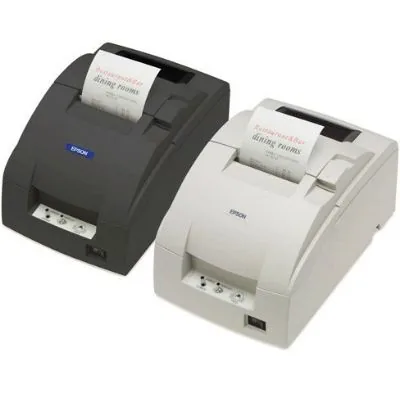

Epson TM-U220 Epson TM-U220
