POSMarket SKU: Z1858
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

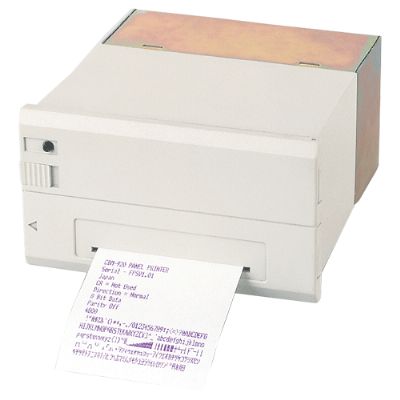

The CITIZEN CBM-920 low-cost Dot Matrix Panel Printer fits perfectly in a wide variety of Data logging applications. Available in 24 or 40 Column width.
| Printing Method | Serial Impact Dot Matrix One-way Printing |
| Printing Width | 24 Column printer; 144 dots/line 40 Column printer; 180 dots/line |
| Dot Pitch | 24 Column printer (5+1) x 8 40 Column Printer (4+0.5) x 8 |
| Printing Speed (Max.) | 24 Column printer Approx. 2.5 lines/sec 40 Column Printer Approx. 1.8 lines/sec |
| Number of Columns | 24 Column printer: 24 40 Column printer: 40 |
| Character Size | 24 Column printer (5+1) x 8 40 Column Printer (4+0.5) x 8 |
| Character Table/Code Pages | Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/ WPC1252/Katakana/CBM-920 Emulation |
| Bar-code Type | N/A |
| Line Spacing | 3.52mm |
| Paper feed method | Friction |
| Paper Type | Plain Bond Paper or 2 ply Paper |
| Paper Width | 57.5 mm +/-0.5 mm |
| Paper Roll Diameter | Max 50.0mm |
| Paper Thickness | 0.09 mm or less |
| Paper Supply Method | Auto Loading Function |
| Auto Cutter | N/A |
| Indicators/Controls | Paper LED Paper feed Switch |
| Emulation | CBM920 & iDP3110 (Selectable with memory switch) |
| Print Buffer | 2K bytes / 72 bytes selectable with Memory switch on Serial Model |
| NV Memory | N/A |
| Sensors | Paper near end & Paper end Sensor Mechanical lock error, Memory check error, Low voltage/High voltage error Detection |
| Drawer Port | N/A |
| External Device Port | N/A |
| Interfaces | Serial (RS-232C compliant), or Parallel (IEEE1284 compliant) |
| Driver available | Windows95/98/98SE/ME/NT/XP (Text only driver supports XP/Vista/7/8) |
| Software Utilities | CBM9x0II Customization Ver.1.0.0.0 |
| Power Supply | Control System: DC 5V +/-5% (0.2A) Driving Systems:DC 5V +/-10% (Approx 2.5A up to 4A Peak) |
| Power Consumption | Approx. 7 VA (Normal printing), Approx. 0.5VA (Standby) |
| External Dimensions (WxDxH) | 115 x 65 x 119 mm Panel Installation hole Size 109 x 62mm |
| Weight | 0.5 Kg |
| Operating Environment | 0 to 40 C, 35 to 85 % RH (no condensation) |
| Storage Environment | -20 to 60 C, 10 to 90 % RH (no condensation) |
| Reliability | 24 Column Printer: MCBF 1.5 million lines 40 Column Printer: MCBF 1.0 million lines |
| EMC/Safety Standards | FCC class A, TUV-GS, CE marking, C-tick, UL (RU) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| CBM920-40P | CBM-920 Printer, Parallel Interface, 40 Column, No power supply (add if required) | $411.13 | Add to Cart | |
| 9240RF2DC | CBM-920 Printer, Serial Interface, 40 Column, No power supply (add if required) | $411.13 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Ink Ribbons | Ink printer ribbons and supplies. | $4.54 | View Product |
| POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
| Goodson AD7V16N | Power Adaptor for citizen iDP-311x, CBM910 | $32.84 | View Product |
| Calibor Bond Paper 57X57 50 Rolls box | Calibor Bond Plain Paper Roll | $25.41 | View Product |
| Zebra Software License Printer Enterprise | Software License Printer Enterprise | $1,313.07 | View Product |
| POSMarket Serial Printer Cable | RS232 serial Printer Cable | $19.80 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
cbm9x0 catalog datasheet | 132KB | Download |
