POSMarket SKU: Z1859

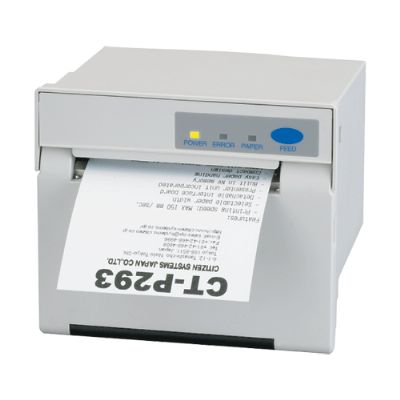

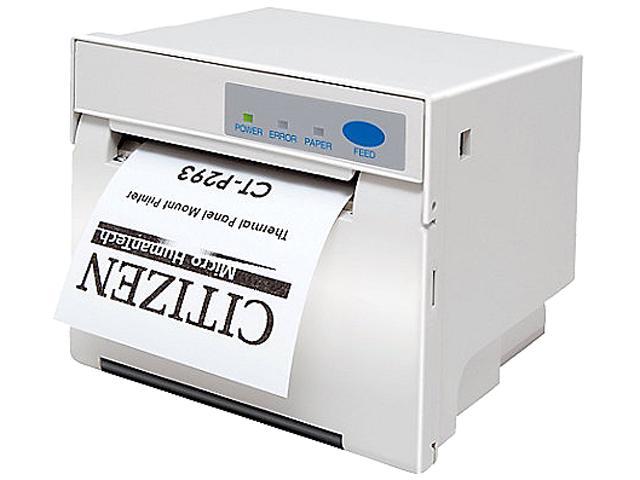

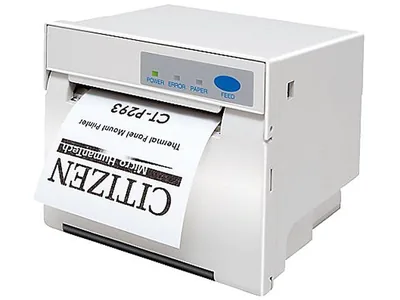

The CT-P29x is a rack-mountable thermal panel printer, with easy drop-in paper loading. It is widely applicable in various kinds of data logging and measuring applications.
| Printing Method | Line thermal dot printing |
| Printing Width | 72 mm / 576 dots |
| Dot Pitch | 8 x 8 dots/mm (203 dpi) |
| Printing Speed (Max.) | 150 mm/sec (1200 dot / lines) |
| Number of Columns | Font A: 48 columns Font B: 64 columns Font C: 72 columns |
| Character Size | Font A: 1.50 x 3.00 mm, 12 x 24 dots Font B: 1.13 x 2.13 mm, 9 x 17 dots Font C: 1.00 x 2.00 mm, 8 x 16 dots As space for internal space of character font is included, actual character is smallerthan those in the above table. |
| Character Table/Code Pages | Alphanumeric, International (12 characters, 16 countries), PC437/850(858)/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai Code 18 |
| Bar-code Type | UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODEBAR, CODE 93, PDF417, QRCODE |
| Line Spacing | 4.25mm (1/6 inch) settable with command |
| Paper feed method | Friction Feed |
| Paper Type | Direct Thermal Paper Roll |
| Paper Width | 58 - 80 mm |
| Paper Roll Diameter | 50mm |
| Paper Thickness | 65 to 75mm |
| Paper Supply Method | Easy Paper Loading, Drop in from front, close and print |
| Auto Cutter | Guillotine, Partial cut or Full cut |
| Indicators/Controls | Power (Green) Power is on when it is illuminated. It flashes when data is incoming or a memory error has occurred Error (Red Lights or blinks in case of an error, etc. The interval length of blinking represents the type of error Paper (Orange) Paper is empty when illuminated |
| Emulation | |
| Print Buffer | 4K bytes/45 bytes |
| NV Memory | N/A |
| Sensors | Paper end Sensor Printer Cover open Sensor |
| Drawer Port | N/A |
| External Device Port | N/A |
| Interfaces | Serial (RS-232C compliant) & Parallel (Centronics or IEEE1284nibble mode compliant) USB (Option) depending on type. (Our standard machines has all 3 interfaces through a HOSHIDEN connector) |
| Driver available | WIN 7, OPOS, JAVAPOS, POS for .NET, CUPS |
| Software Utilities | Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc. |
| Power Supply | DC24V 10% (2.1A with 9A Peak) |
| Power Consumption | 1.9A (9A at peak) |
| External Dimensions (WxDxH) | 127 x 120.5 x 109 mm |
| Weight | Approx. 800g |
| Operating Environment | -20 to 50 C, 10 to 85%RH (No condensation) |
| Storage Environment | -20 to 60 C, 10 to 90%RH (No condensation) |
| Reliability | Printer head life: 100 km, 1 x 100 million pulses (at normal temperature/humidity with recommended paper used, Paper thickness: 65mm) Auto cutter life: 1 million cuts (at normal temperature/humidity with recommended paper used, Paper thickness: less than 65mm) |
| EMC/Safety Standards | UL, C-UL, FCC class A, TUV-Bauart, CE marking, C-tick Standard compliant if the CITIZEN AC adapter (36AD2) is used. |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| ZH13-3AUWOD | CTP-293 Thermal Panel Printer, USB, Serial & Parallel Interface. No power supply (add if required) | $726.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
| Citizen AD36AD3 | CTS6xx/ 8xx Power adapter | $184.80 | View Product |
| Zebra Software License Printer Enterprise | Software License Printer Enterprise | $1,313.07 | View Product |
| POSMarket USB PRINTER CABLE A-B BLACK 2M | USB cable A to B for Printers | $11.55 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ctp293 brochure | 4MB | Download |
|
CT P29x Quick Start Guide | 859KB | Download |
|
CT P29x Users Manual | 2MB | Download |
|
CTS PMU CTP Command Reference | 3MB | Download |
