| Printing Method | Line thermal dot print method |
| Printing Width | 80 mm / 640 dots, 72 mm / 576 dots, 64 mm / 512 dots, 54.5 mm / 436 dots, 54 mm / 432 dots, 52.5 mm / dots, 48 mm / 384 dots, 45 mm / 360 dots, 48.75 mm / 390 dots, 68.25 mm / 546 dots |
| Dot Pitch | 8 x 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | Max. 300 mm/sec, 2400 dots lines / sec. (fastest, print density 100%) |
| Number of Columns | 83 mm Paper: Font A - 53 columns, Font B - 71 columns, Font C - 80 columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
60 mm Paper: Font A - 36 columns, Font B - 48 columns, Font C - 54 columns
58 mm Paper: Font A - 35 columns, Font B - 46 columns, Font C - 52 columns |
| Character Size | Font A:1.50 x 3.00 mm (12 x 24 Dots)
Font B:1.13 x 2.13 mm (9 x 17 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots) |
| Character Table/Code Pages | Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Japanese Kanji characters
IBM extended characters
simplified or traditional Chinese, Vietnamese Code Page.Thai Font 1pass printing. |
| Bar-code Type | UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code |
| Line Spacing | 4.23mm (1/6 inch) (changeable using commands) |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1 |
| Paper Roll Diameter | Max 80.0mm |
| Paper Thickness | 0.065 - 0.075mm (core tube diameter: inner 12 mm/outer 18mm)
0.075 - 0.150mm (core tube diameter: inner 25.4 mm/outer 32 mm) |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | Guillotine, Partial cut or Full cut |
| Indicators/Controls | LED: Green/Orange/Red
LCD Display |
| Emulation | ESC/POS
Optional:
iDP3540 Compatible
CBM710 Compatible |
| Print Buffer | 4K bytes / 45 bytes |
| NV Memory | 384 Kb (capable of storing user-defined characters and logos) |
| Sensors | Paper end Sensor
Printer Cover open Sensor |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | RJ-45, 8-pin connector |

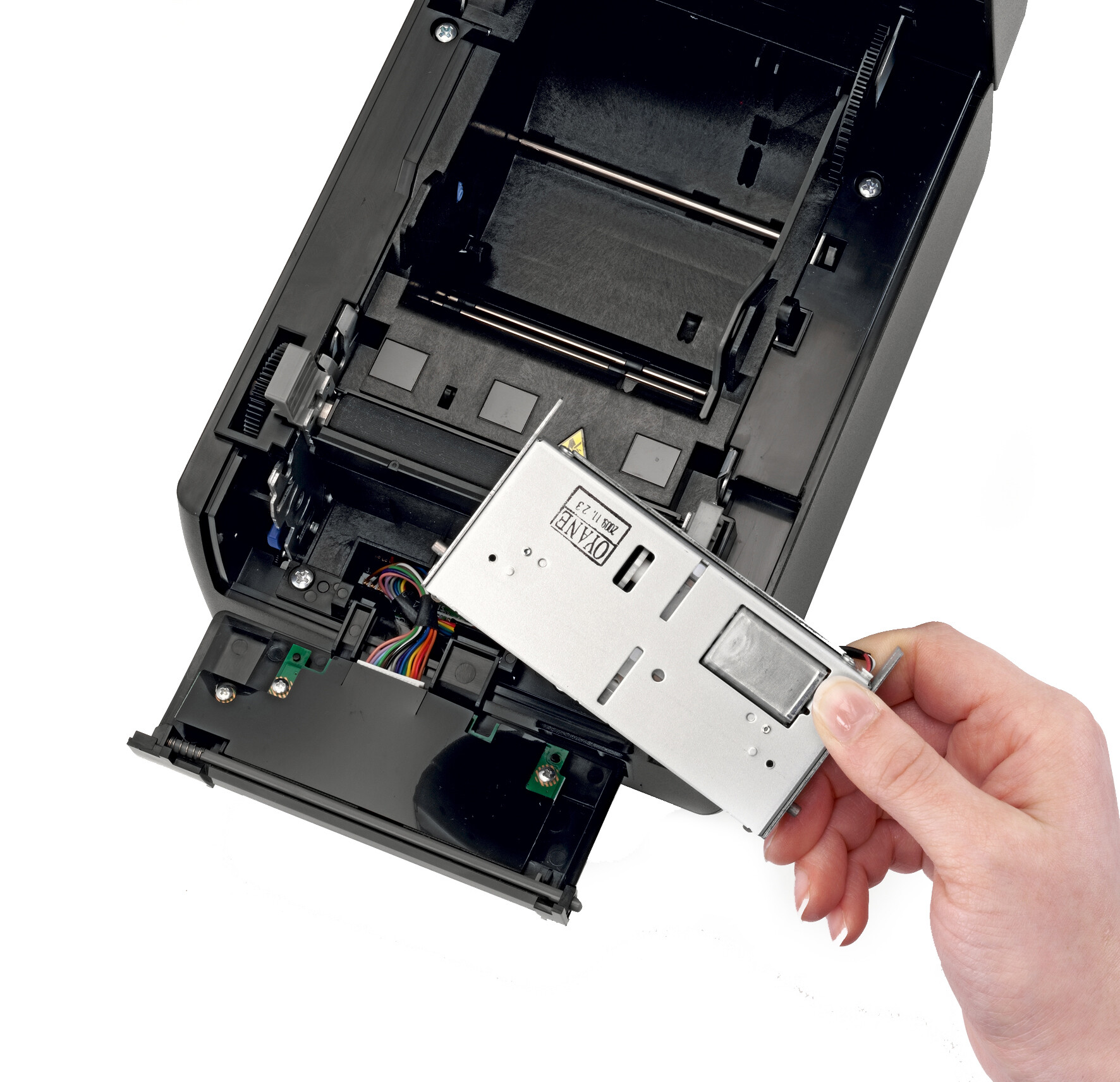

| Interfaces | Standard without interface. Choice off:
Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB,
USB with hub, Ethernet, powered USB
Bluetooth model |
| Driver available | WIN XP, WIN 7,WIN8, WIN10, OPOS, JAVAPOS, POS for .NET, CUPS |
| Software Utilities | Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc. |
| Power Supply | AC Adapter 36AD
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.1 A
ENERGY STAR qualified printer |
| Power Consumption | Approx. 45 W (normal printing), 3W (standby) |
| External Dimensions (WxDxH) | CT-S601 (Built-in power supply type): 145 x 192 x 148 mm
CT-S601N (No power Supply): 145 x 192 x 120 mm |
| Weight | CT-S8x1 (Built-in power supply type): 2.0kg
CT-S8x1N (No Power Supply): 1.6kg |
| Operating Environment | 5 to 45 °C, 10 to 90 % RH (no condensation) |
| Storage Environment | -20 to 60 °C, 10 to 90 % RH (no condensation) |
| Reliability | Print head life: 150 km, 200 million pulses (at normal temperature and humidity using recommended paper)
Auto cutter life: 2 million cuts (at normal temperature and humidity using recommended paper) |
| EMC/Safety Standards | UL, C-UL, FCC class A, TUV-Bauart, CE marking, CCC, C-tick |
