SAM4S ELLIX 10
POSMarket SKU: Z1945
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The SAM4S Ellix-10 Thermal docket printer fits perfectly with the modular ER-600 System Cash Register. It is a fast 2 inch thermal printer with easy drop in Paper loading.
Product Overview
- High Speed (up to 75 mm/sec) Direct Thermal Printing
- Drop in Paper loading
- Barcode Printing
- Compatibility (ESC/POS)
- NV Memory for Bit map Data Storage
- Auto cutter (optional)
- User-changeable interface
- External Power Supply

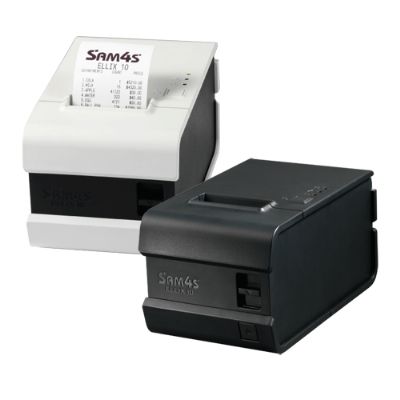

- Available in Ivory/Black or Black
Product Specifications
| Printing Method | Line thermal dot print method |
| Printing Width | 48 mm |
| Dot Pitch | 200 dpi |
| Printing Speed (Max.) | Max. 75 mm/sec |
| Number of Columns | Font A - 32 columns, Font B - 42 columns |
| Character Size | Font A:1.69 x 3.38 mm (12 x 24 Dots) Font B:1.26 x 2.39 mm (9 x 17 Dots) |
| Character Table/Code Pages | 95 Alphanumeric, 37 International,128*11 Graphic ,Korean |
| Bar-code Type | UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR |
| Line Spacing | N/A |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 58 mm+0/-1 |
| Paper Roll Diameter | Max 70.0mm |
| Paper Thickness | 0.06 - 0.08mm |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | Optional Guillotine Type(Jamfree) |
| Indicators/Controls | Power Light, Error Light, Paper Out Light Buzzer |
| Emulation | ESC/POS Star |
| Print Buffer | 4KB |
| NV Memory | N/A |
| Sensors | Paper end Sensor Printer Cover open Sensor |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | N/A |
| Interfaces | USB or RS232 or USB & RS232 |
| Driver available | Windows 98/ 2000/ XP/ Vista/ 7/ 8, 2003 Server Driver, OPOS Driver |
| Software Utilities | |
| Power Supply | External AC Adapter Rated input: AC 90 to 264 V, 50/60 Hz Rated output: DC24 V, 2.5 A |
| Power Consumption | Max. 60W |
| External Dimensions (WxDxH) | 118 x 200 x 111 mm |
| Weight | 1.2 Kg |
| Operating Environment | 5-45 °C, 10-90% RH |
| Storage Environment | -10-50 °C, 10-90% RH |
| Reliability | MCBF Mechanism: 30 mil Lines Thermal Print head: 50Km Auto Cutter: 1.0 Mil cuts |
| EMC/Safety Standards | C-Tick, RCM, FCC class A, TUV/GS, CE, CB, cTUVus. R0HS, WEEE |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Sam4s Ellix10 User Manual | 917KB | Download |
