SAM4S ELLIX 30
POSMarket SKU: Z1841
This product has been replaced by the SAM4S Ellix-30III. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

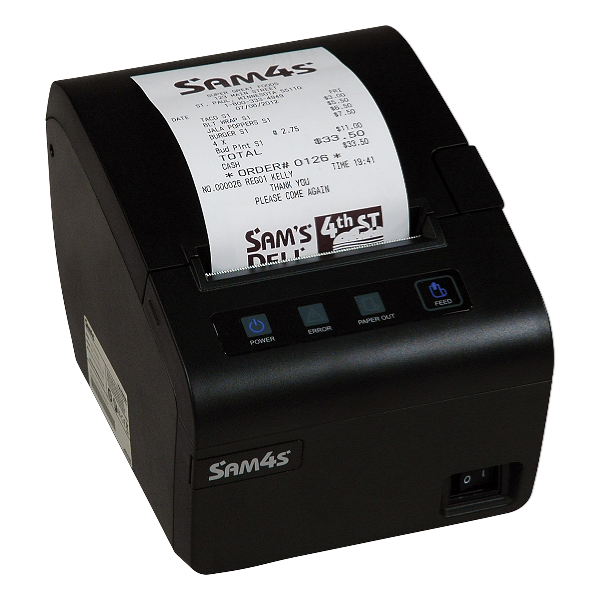

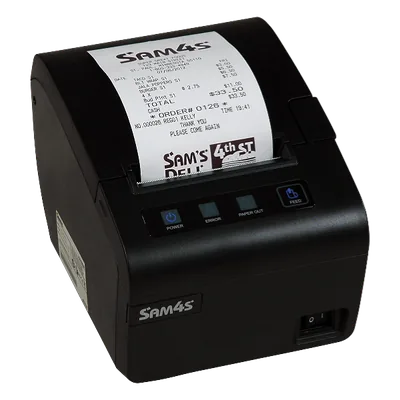

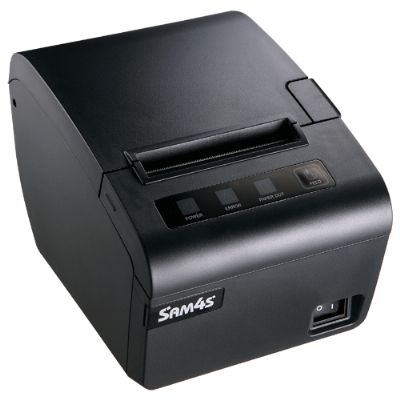

The SAM4S ELLIX-30 is a fast low cost Thermal Docket Printer that is perfect for many retail and hospitality POS applications. It has standard USB interface with a choice of RS232 or Parallel interface.
Product Overview
- Fast (up to 180 mm/sec) Direct Thermal Printing
- Drop in Paper loading
- Two Colour Printing (with Special Paper)
- Barcode Printing, including QR code
- Compatibility (ESC/POS)
- NV Memory for Bit map Data Storage
- Page mode printing
- Auto cutter
- Firmware downloadable with USB Stick, for easy in the field upgrades
- Standard USB plus RS232 or Parallel
- Flexible paper widths (80mm & 58mm)
- External Power Supply
- Available in Ivory/Black or Black
Product Specifications
| Printing Method | Line thermal dot print method |
| Printing Width | 80 mm Paper 72 mm 58 mm Paper 54 mm |
| Dot Pitch | 180 dpi |
| Printing Speed (Max.) | Max. 180 mm/sec |
| Number of Columns | 80 mm Paper: Font A - 42 columns, Font B - 56 columns 58 mm Paper: Font A - 30 columns, Font B - 40 columns |
| Character Size | Font A:1.69 x 3.38 mm (12 x 24 Dots) Font B:1.26 x 2.39 mm (9 x 17 Dots) |
| Character Table/Code Pages | 95 Alphanumeric, 37 International,128*11 Graphic ,Korean |
| Bar-code Type | UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code |
| Line Spacing | N/A |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 80+0/-1 mm, 58 mm+0/-1 |
| Paper Roll Diameter | Max 83.0mm |
| Paper Thickness | 0.06 - 0.08mm |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | Guillotine Type(Jamfree) |
| Indicators/Controls | Power Light, Error Light, Paper Out Light Buzzer |
| Emulation | ESC/POS Star |
| Print Buffer | 64KB |
| NV Memory | 8MB |
| Sensors | Paper end Sensor Printer Cover open Sensor |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | N/A |
| Interfaces | USB & RS232, USB & Parallel, USB & RS232 & Ethernet |
| Driver available | Windows 98/ 2000/ XP/ Vista/ 7/ 8, 2003 Server Driver, OPOS Driver |
| Software Utilities | |
| Power Supply | External AC Adapter Rated input: AC 90 to 264 V, 50/60 Hz Rated output: DC24 V, 2.5 A |
| Power Consumption | Max. 60W |
| External Dimensions (WxDxH) | 144 x 195 x 137 mm |
| Weight | 3.0 Kg |
| Operating Environment | 5-45 °C, 30-80% RH |
| Storage Environment | -10-50 °C, 10-90% RH |
| Reliability | MCBF Mechanism: 70 mil Lines Thermal Print head: 150Km Auto Cutter: 1.5 Mil cuts |
| EMC/Safety Standards | C-Tick, RCM, FCC class A, TUV/GS, CE, CB, cTUVus |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| ELLIX30SB(GOOD) | Ellix 30 Thermal Printer. USB & Serial (RS232) Interface, Black | $259.94 | Add to Cart |
