SAM4S Ellix-30III

POSMarket SKU: Z8780

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

Introducing SAM4S latest printer, the Ellix-30III. Replacing the popular Ellix-30, the Ellix-30III brings a fast 230mm per/sec print speed, low power consumption, paper saving and barcode printing. With industry-standard ESC/POS and STAR compatibility, the Ellix-30III is the perfect workhorse for Retail & Hospitality environments

Product Rating

Product Overview

Fast (up to 230 mm/sec) Direct Thermal Printing
Easy Drop in Paper loading
Two Colour Printing (with Special Paper)
Barcode Printing, including QR code
ESC/POS and STAR compatibility
NV Memory for Bit map Data Storage
Page mode printing
Jam free Auto cutter
Firmware downloadable with USB Stick, for easy in the field upgrades
Standard USB plus various other interfaces
Flexible paper widths. (80mm and 58mm)
External Power Supply

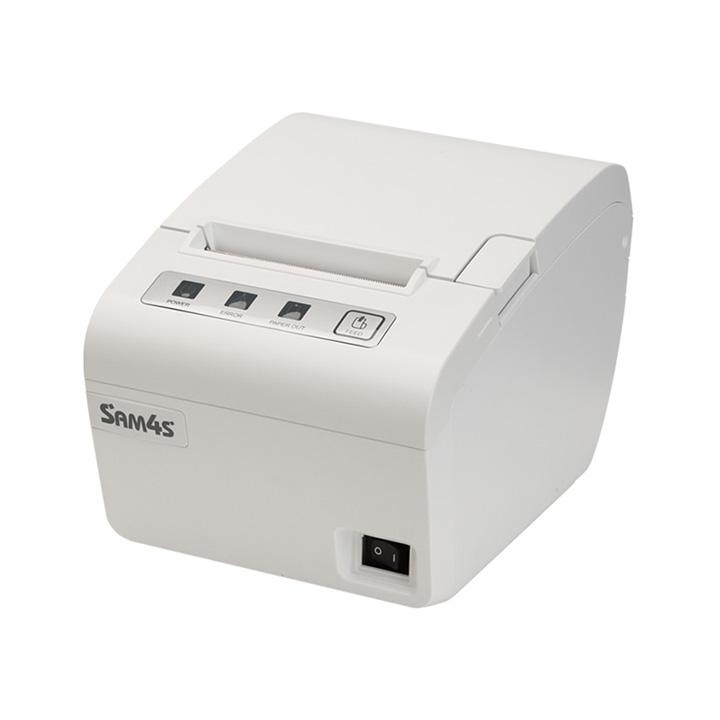

Available in Black or White (special Order)
Robust Aluminium Main frame construction with low noise

Product Specifications

Printing method	Thermal Line Printing
Resolution	180 dpi
Printing Speed	Mono paper 80mm: Max. 230 mm/sec (55 lines/sec) Mono Paper 58mm: Max. 150mm/sec (36 lines/sec) Two Color Paper: Max. 100mm/sec (24 line/sec)
Paper Loading	Drop-In Type
Paper Width	Max. 80.0mm / 58.0mm
Paper Diameter	Max. 83.0mm
PGM Memory	2 MB
Data Memory	8MB
Data Buffer	64KB
Mechanism (MCBF)	70,000,000 lines
TPH	150 Km
Auto Cutter	1,500,000 cuts
Drawer port	2 Ports (+24V)
	UPC-A UPC-E EAN8 EAN13 Code 39 Code 93 Code 128 ITF CODABAR PDF417 QR code
Driver/Utility	Windows, OPOS, JPOS, CUPS
SDK	iOS, Android

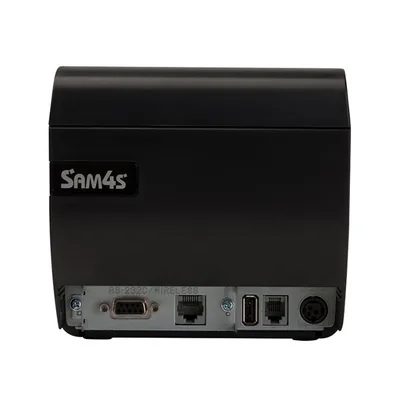

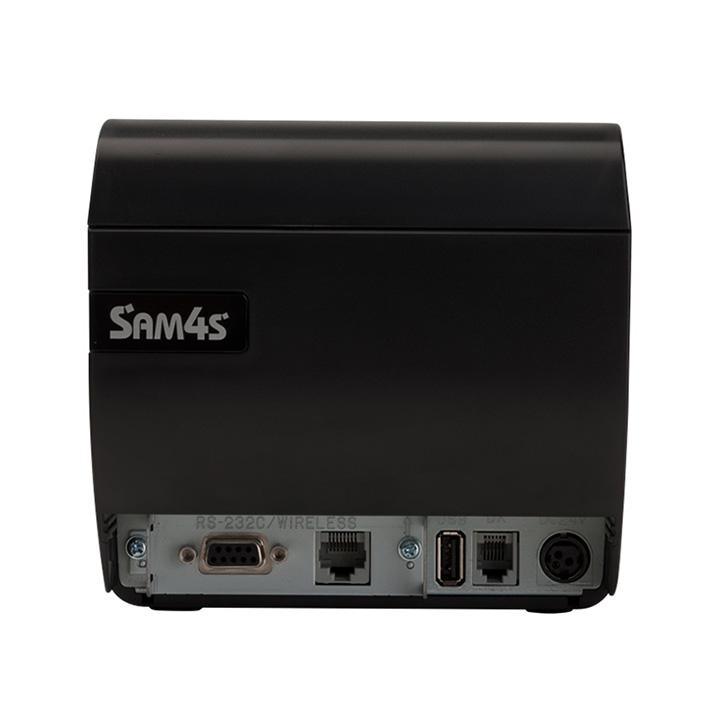

Interface	USB + Serial (25Pin) USB + Serial (9Pin + RJ45) USB + Parallel USB + Wi-Fi USB + Serial+Ethernet (3-Combo)
Dimensions	144mm (W) x 195mm (D) x 137mm (H)
Weight	2.0 kg
Color	Black, White
Emulation	EPSON, STAR
Power Supply	DC 24V/2.5A

Model	Description	Price	Stock
ELLIX30IIISB(GOOD)	Ellix-30III Printer, USB & Serial interface, Black	$338.32	Call	Add to Cart
ELLIX30IIIEB	Ellix-30III Printer, USB, Serial & Ethernet interface, Black	$333.09	Call	Add to Cart

Model	Description	Prices From
POSMarket Paper Rolls	Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks.	$4.62	View Product
SAM4S Kitchen Buzzer Kit ELLIX30, ELLIX40	Kitchen Buzzer Kit for ELLIX30, ELLIX30III, ELLIX40	$29.54	View Product

Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.

	Filename	Size
	SAM4S Printer Control Command Manual	1MB	Download
	Ellix-30III Brochure	1MB	Download
