POSMarket SKU: Z1944
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

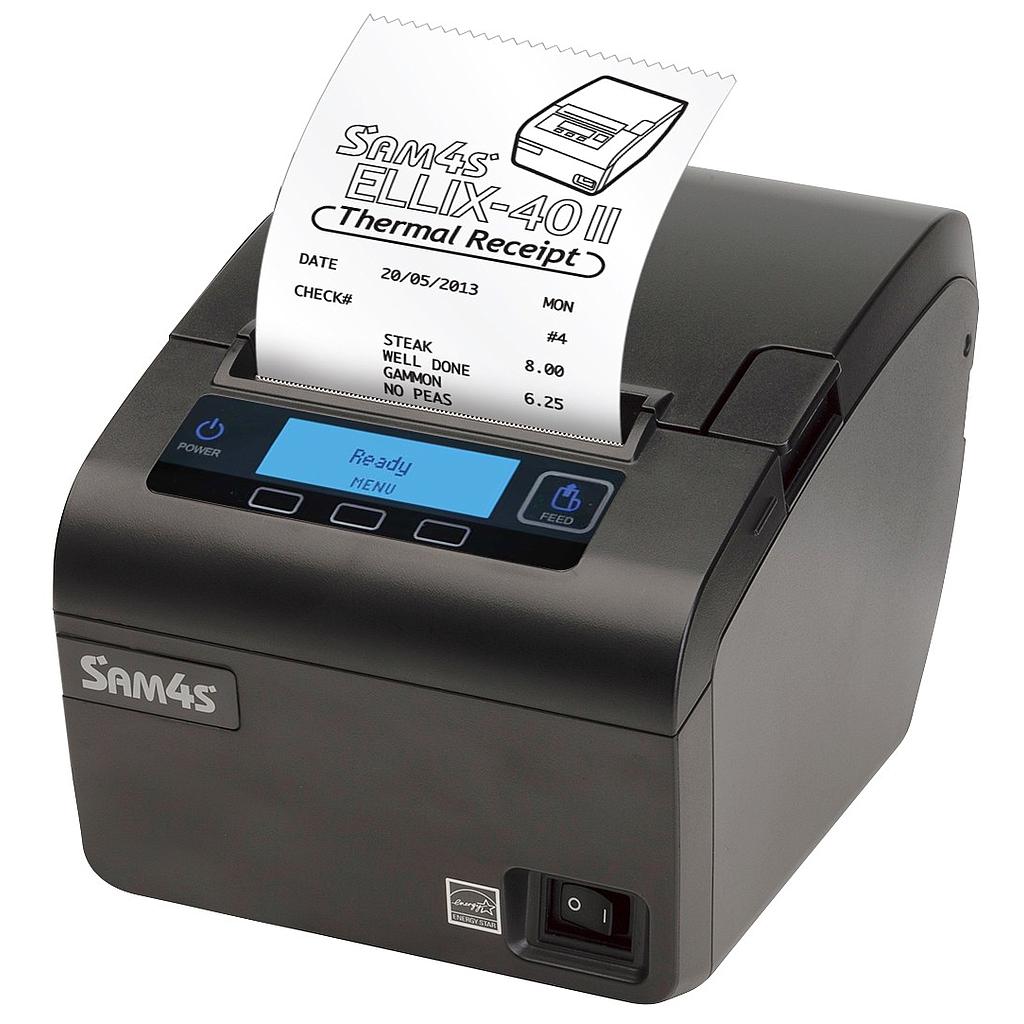

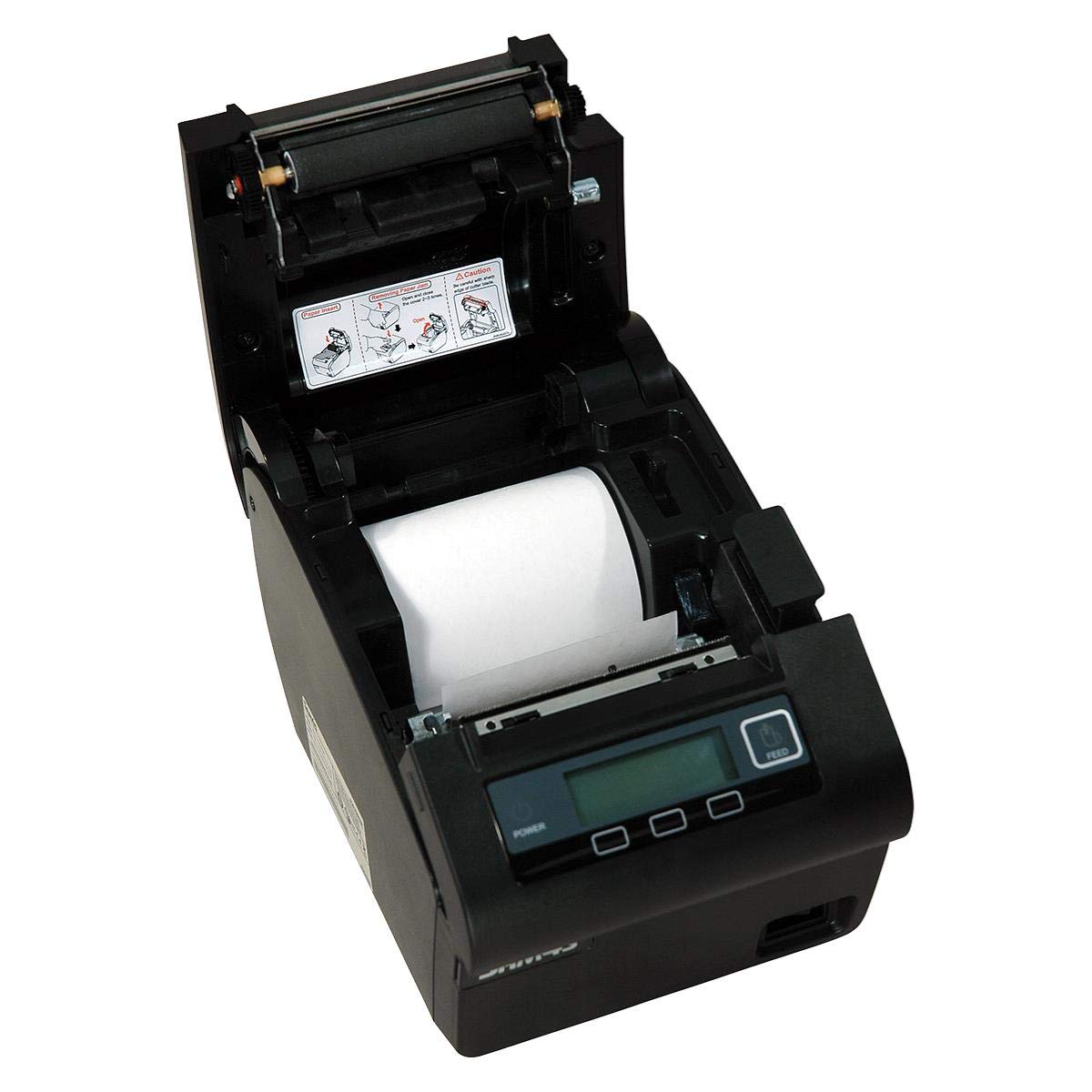

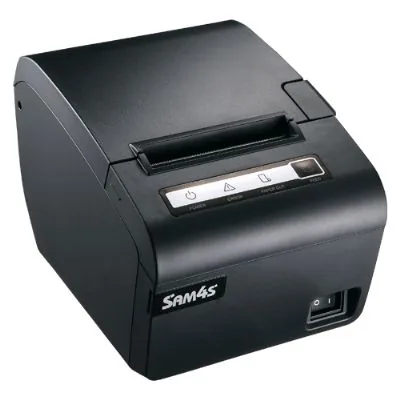

The SAM4S ELLIX-40 is a fast Thermal Docket Printer that is perfect for many retail and hospitality POS applications. It has standard USB interface with a choice of RS232 or Parallel interface.
| Printing Method | Line thermal dot print method |
| Printing Width | 80mm Paper 72mm 58mm Paper 54mm |
| Dot Pitch | 180 dpi |
| Printing Speed (Max.) | Max. 220 mm/sec |
| Number of Columns | 80 mm Paper: Font A - 42 columns, Font B - 56 columns 58 mm Paper: Font A - 30 columns, Font B - 40 columns |
| Character Size | Font A:1.69 x 3.38 mm (12 x 24 Dots) Font B:1.26 x 2.39 mm (9 x 17 Dots) |
| Character Table | 95 Alphanumeric, 37 International,128*11 Graphic ,Korean |
| Bar-code Type | UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code |
| Line Spacing | N/A |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 80+0/-1 mm, 58 mm+0/-1 |
| Paper Roll Diameter | Max 83.0mm |
| Paper Thickness | 0.06 - 0.08mm |
| Paper Supply Method | |
| Emulation | ESC/POS Star |
| Print Buffer | 64KB |
| NV Memory | 8MB |
| Sensors | |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | RJ-45, 8-pin connector |
| Interfaces | USB & RS232, USB & Ethernet, USB & WIFI |
| Driver available | |
| Software Utilities | |
| Power Supply | External AC Adapter Rated input: AC 90 to 264 V, 50/60 Hz Rated output: DC24 V, 2.5 A |
| Power Consumption | N/A |
| External Dimensions (WxDxH) | 144 x 195 x137 mm |
| Weight | 3 Kg |
| Operating Environment | 5-45 C 30-80% RH |
| Storage Environment | -10-50 C 10-90% RH |
| Reliability | MCBF Mechanism: 70 mil Lines Thermal Print head: 150Km Auto Cutter: 1.5 Mil cuts |
| EMC/Safety Standards | C-Tick, RCM, FCC class A, TUV/GS, CE, CB, cTUVus |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| ELLIX40WB | Ellix 40 Thermal Printer, USB/Wifi Interface | $416.69 | Add to Cart | |
| ELLIX40EB(GOD) | Ellix 40 Thermal Printer, USB/Ethernet Interface | $344.85 | Add to Cart | |
| ELLIX40SB(GOD) | Ellix 40 Thermal Printer, USB/RS232 Interface | $325.26 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Label Rolls | Various label rolls to suit thermal and ink roller printers. | $3.73 | View Product |
| POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
| Calibor Thermal Paper 76X48 36 Rolls/box12mm/Ccre | Premium Thermal Plain Paper Roll | $46.20 | View Product |
| Zebra Software License Printer Enterprise | Software License Printer Enterprise | $1,313.07 | View Product |
| POSMarket USB PRINTER CABLE A-B BLACK 2M | USB cable A to B for Printers | $11.55 | View Product |
| SAM4S Kitchen Buzzer Kit ELLIX30, ELLIX40 | Kitchen Buzzer Kit for ELLIX30, ELLIX30III, ELLIX40 | $29.54 | View Product |
| Goodson USB Cable | USB Cable A to A; USB 2.0 A to B Cable | $6.90 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ellix30 40 brochure | 450KB | Download |
|
ellix30 40 User Manual | 2MB | Download |
