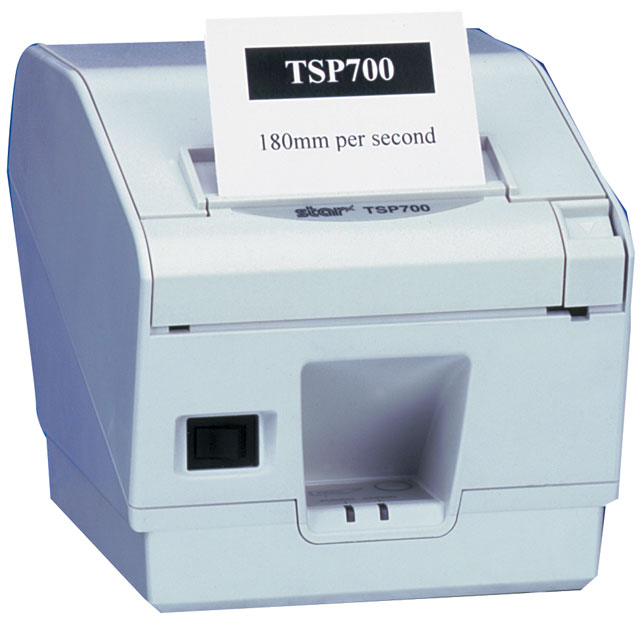

Star TSP700
POSMarket SKU: Z5392
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The TSP700 Series is fully packed with features and performance that are unmatched among receipt and specialty printers. With the TSP700 Series documents can be printed at blinding speed. Use Stars Raster driver for Windows and receipts will come alive with valuable features like automatic logo printing to add your company logo to the top of every receipt without having to modify existing point-of-sale software.
Product Overview
Its robust and versatile design and ease-of use make the TSP700 ideal for fast, high volume receipting applications which require high quality text, graphics and barcode output at a fast 250mm per second. The TSP700II is compatible with the majority of operating platforms including Windows, iOS and Android and has been successfully installed in thousands of retail, hospitality and self service kiosk applications worldwide.
The TSP700 is also a cost effective multifunctional printer, capable of printing high quality fixed length tickets and labels on paper up to 0.15mm thick. With a high quality cutter as standard and black mark sensor for fixed length printing, the TSP700 can be used as a label printer, lottery printer or dedicated ticket printer for cinemas, theme parks and events. Its compact and versatile design means the TSP700II can also be mounted vertically in a kiosk environment for unattended receipt or ticket printing with an optional flashing paper exit guide.
- Fast, high quality receipt printer capable of producing barcodes, labels and tickets at at 250mm/second
- “Drop-In & Print†easy paper loading
- Black mark sensor for fixed length labels and tickets
- 60,000,000 lines CRT reliability and compatible with most operating platforms
- Full or partial cut autocutter (centre)
- Ergonomic splash resistant design with easy clean case and splash proof cover available
- Double Density (406x 203dpi) print resolution for high quality graphics and barcodes.
- Advanced Configuration Utility with the ability to configure graphics or coupons without expensive software changes or complicated set up procedures.
- Choice of Interfaces including HI X with WebPRNT and CloudPRNT for web and cloud-based applications
Product Specifications
| Printing Method | Direct Thermal line | |
| Print Speed | Max 250mm/s or 53 receipt per minute | |
| Print Direction | Unidirectional with friction feed (Backfeed is available) | |
| Paper Feed Speed | Max.250mm/s | |
| Printing Width | 80mm(82.5mm paper); 72mm (80mm paper); 52mm (58mm paper) | |
| Character Matrix | 9x24 / 12x24 / 16x24 / 24x24 | |
| Character set | ANK / GB2312 / Big5 / Japanese / Korean | |
| Barcode | 9 sets of 1 D barcode; PDF417; QR Code | |
| Code page | 40 Code pages + 1 Blank | |
| Model | TSP743II Autocutter Version | |
| Printing Method | Direct Thermal line | |
| Print Speed | Max 250mm/s or 53 receipt per minute | |
| Print Direction | Unidirectional with friction feed (Backfeed is available) | |
| Paper Feed Speed | Max.250mm/s | |
| Printing Width | 80mm(82.5mm paper); 72mm (80mm paper); 52mm (58mm paper) | |
| Character Matrix | 9x24 / 12x24 / 16x24 / 24x24 | |
| Character set | ANK / GB2312 / Big5 / Japanese / Korean | |
| Barcode | 9 sets of 1 D barcode; PDF417; QR Code | |
| Code page | 40 Code pages + 1 Blank | |
| Width | 82.5;0.5mm; 79.5;0.5mm; 57.5;0.5mm | |
| Roll Diameter | Max. 100mm | |
| Thickness | 0.065 to 0.15mm | |
| 2-Color Print Capability | Black & Red; Black & Blue (Special Thermal Paper) | |
| Sensor | BM/PE detection by 1 sensor; 2 cover open switch sensors; 2 Near End Sensors (Vertical & Horizontal Orientation) | |
| Emulation | Star Mode; ESC/POS Emulation | |
| Interface | RS232C (Serial); Parallel; USB 2.0; Ethernet; Bluetooth; WebPRNT | |
| Mechanism | 20 million lines | |
| MCBF | 60 million lines | |
| Print Head | 150 million character | |
| Autocutter | 2 million cuts | |
| Overall Dimensions | 142 (W) x 199 (D) x 132 (H) mm | |
| Weight | 1.75Kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 37999940 | TSP700, Thermal, Friction, 2 Color, Cutter, Ethernet (LAN) | $CALL | ||
| 39442510 | TSP700, Thermal, Friction, 2 Color, Cutter, USB | $CALL | ||
| 39442500 | TSP700, Thermal, Friction, 2 Color, Cutter, Serial | $CALL | ||
| 37999990 | TSP700, Thermal, Friction, 2 Color, Cutter, Parallel | $CALL |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
![]() |
Star TSP700 Datasheet | 722KB | Download |
