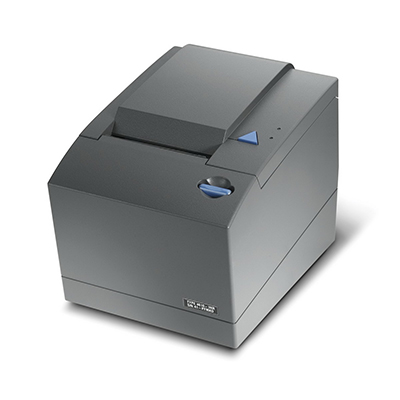

Toshiba 4610-1NR
POSMarket SKU: Z7600
This product has been replaced by the Toshiba 6145-1TN. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.
Built for ultimate retail-hardened performance in demanding environments the Toshiba SureMark printer delivers speed reliability and unmatched serviceability and manageability. Plus it offers earth-friendly design and packaging that set new world standards.
Product Overview
Printing Speed:
- Receipt station (one-color paper) 80 lps @ 8 lpi, 60 lps @ 6 lpi
- Receipt station (two-color paper) 35 lps @ 8 lpi, 26 lps @ 6 lpi
- Printing resolution (thermal) 203 dpi
Interfaces: - Powered USB plus standard USB
- RS-485
- Standard RS-232 (external power brick or special power cable required)
Ports: - DC In (except RS485)
- USB/Powered USB or RS232 or RS485 (24 or 38 V) (Interface card dependent)
- OEM Cash Drawer (+24 V)
Sensors: - Paper low
- Paper out
- Cutter health
- Print head health
- Usage counters
- Paper jam detection
Mounting options: - Integrated (Integration tray)
- Distributed (free standing)
- Optional Wall mount bracket
Support for wide range of receipt media - thickness/type of media:
- 1.6 - 3.7 mil (thousandths of an inch) paper thickness
- Factory feature selection of 2.28 in (58 mm) or 3.15 in (80 mm) paper width
Media type supported/roll diameter: - Receipt paper rolls - maximum 4 in (102 mm) diameter
Physical Dimensions and Weight: - Dimensions (WxDxH): 145 mm X 177 mm X 159 mm
- Weight: 1.4 Kg
Software Command Sets - Native
- Epson ESC POS Emulation
- Compatibility Mode
Operating systems and driver support:
A compatibility mode is provided in the printers to enable use of existing drivers and applications with only minor modifications. Native mode support is as follows:
Toshiba 4690 Operating System: USB and RS-485: V5R2 and V6R2** Microsoft Windows XP, Microsoft Windows Embedded for Point of Service (WEPOS) 1.11, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embeded POSReady 7, Microsoft Windows 7 (Professional/Ultimate): TOSHIBA Retail Environment for SUSE Linux Enterprise Desktop (SLED) 11, SUSE Linux Enterprise Server (SLES) 11, SUSE Linux Enterprise Point of Service (SLEPOS) 11: PC DOS 2000:
Epson compatibility mode Support is provided for RS-232 connected printers using Direct I/O communications only
Resident barcode formats UPC A/E, JAN 8(EAN), Code 39, ITF, Code 93, Code 128 a, b, and c, Codabar, PDF417, QR, GS1 databar
Reliability: - 150 km - thermal print head life
- 1.5 million cuts - cutter life
Product Specifications
| Print Speed: | Receipt station (one-color paper) 80 lps @ 8 lpi, 60 lps @ 6 lpi |
| Print Speed: | Receipt station (two-color paper) 35 lps @ 8 lpi, 26 lps @ 6 lpi |
| Printing resolution (thermal) | 203 dpi |
| Models Available: | Powered USB plus standard USB, RS-485, standard RS-232 (external power brick or special power cable required) |
| Ports | DC In (except RS485) USB/Powered USB or RS232 or RS485 (24 or 38 V) (Interface card dependent) OEM Cash Drawer (+24 V) |
| Sensors | Paper low, paper out, cutter health, print head health, usage counters, paper jam detection |
| Mounting options | Integrated (Integration tray), Distributed (free standing), optional Wall mount bracket |
| Size: | Dimensions (WxDxH): 145 mm X 177 mm X 159 mm, Weight: 1.4kg |
| Warranty: | 12 month 9-5 next business day onsite warranty (metro areas) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| PRTO46101NR005 | Suremark 4610-1NR Thermal Printer. RS232 Interface, 24V Powered USB cable. Medium length cables | $CALL | ||
| PRTO46101NR004 | Suremark 4610-1NR Thermal Printer. RS232 Interface, 24V Powered USB cable. Short length cables | $CALL | ||
| PRTO46101NR001 | Suremark 4610-1NR Thermal Printer. Powered USB Interface, 24V Powered USB cable. Long length cable | $CALL | ||
| PRTO46101NR003 | Suremark 4610-1NR Thermal Printer. Powered USB Interface, 24V Powered USB cable. Medium length cable | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Toshiba Power supply for Toshiba Printer | 24V Power supply for the Toshiba 4610-1NR and 6145-1TN printers | $140.25 | View Product |
| Ergonomic Solutions Spacepole Essentials Plate for Toshiba 4610-1NR | Spacepole Essentials printer tray to support Toshiba 4610-1NR receipt printer. | $82.50 | View Product |
| Toshiba Care Flex Next Business Day Support for 4610-1NR | Toshiba Global Care Flex, HWMA Next Business Day, 5 Days Per Week, 9 Hour Coverage, 1 Year- SureMark Single Station Printer - Model, 4610-1NR | $132.00 | View Product |
| Toshiba PSU 24V for printer 4610-1NR | PSU 24V for printer 4610-1NR | $140.25 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Toshiba 4610-1NR Hardware Guide | 7MB | Download |
|
Toshiba 4610-1NR Datasheet | 1MB | Download |
