POSMarket SKU: Z9010

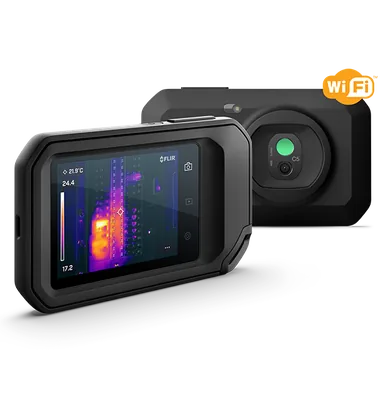

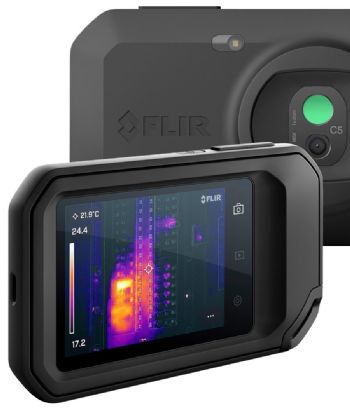

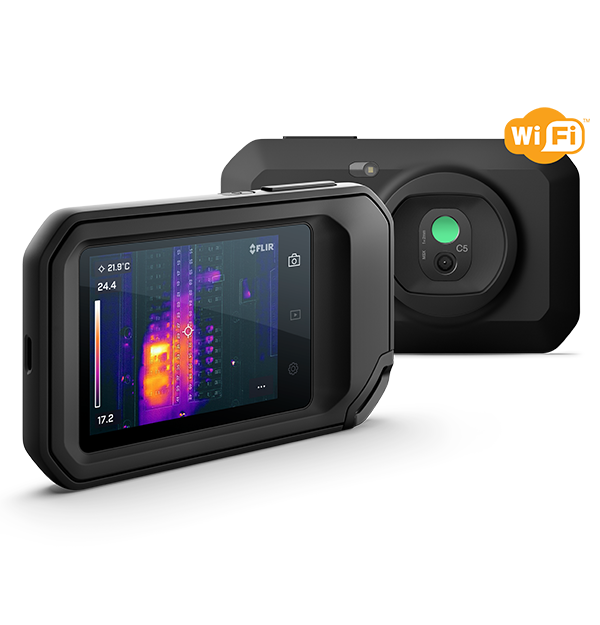

Compact Thermal Camera 160 x 120 Resolution
| OVERVIEW | |
| Camera size (L x W x H) | 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in) |
| FLIR Screen-EST Mode | No |
| IR Sensor | 160 x 120 (19,200 pixels) |
| Screen Rotation | Yes |
| Touchscreen | Capacitive touch |
| SYSTEM OVERVIEW | |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| CONNECTIONS ANDCOMMUNICATIONS | |
| Bluetooth | PAN |
| Image Upload | Directly upload images to FLIR Ignite cloud library and services |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| ENVIRONMENTAL | |
| Drop test | 2 m (6.6 ft) |
| Tripod Mounting | UNC1/4''-20 (built-in) |
| ENVIRONMENTAL AND APPROVALS | |
| Encapsulation | Camera housing and lens: IP54 (IEC 60529) |
| Operating Temperature Range | -10 to 50 C (14 to 122 F) |
| Storage Temperature Range | -40 to 70 C (-40 to 158 F) |
| GENERAL | |
| External Power Operation | 5 V, USB-C |
| IMAGING & OPTICAL | |
| Digital Camera | 5 MP |
| Digital Camera Focus | Fixed |
| Gallery | Thumbnails and custom folder structure |
| Image Adjustment | Automatic level and span, Manual level and span, 1-Touch Level/Span |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| MEASUREMENT & ANALYSIS | |
| Measurement Functions | Spot, Box with max./min. |
| Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Thermal Sensitivity | <70 mK |
| MEASUREMENT & ANALYSIS | |
| Object Temperature Range | -20 to 400 C (-4 to 752 F) |
| PERFORMANCE | |
| Accuracy | At ambient temp. 15 to 35 C (59 to 95 F) and object temp. above 0 C (32F), 0 to 100 C (32 to 212°F): +/-3 C (+/-5.5 F), 100 to 400 C (212 to 752 F): +/-3% |
| PHYSICAL FEATURES | |
| Screen Size | 3.5 in |
| Weight [including battery] | 0.19 kg (0.42 lb) |
| POWER | |
| Battery operating time | 4 hours |
| Battery type | Rechargeable built-in Lithium ion battery |
| Charging system | USB-C (1 A) |
| Charging Time | 2 hours |
| STORAGE MEDIA | |
| File Formats | Standard JPEG, 14-bit measurement data included |
| Image Storage | >5000 images |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| THERMAL IMAGING | |
| Focus | Focus free |
| VISIBLE CAMERA | |
| Image Frequency | 8.7 Hz |
| Minimum Focus Distance | Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in) |
| Spectral Range | 8 to 14 um |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| C5 | Compact Thermal Camera 160 x 120 Resolution | $1,533.13 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Flir C5 Thermal Imager Spec Sheet | 855KB | Download |
