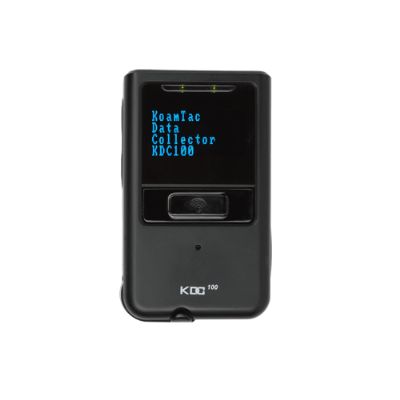

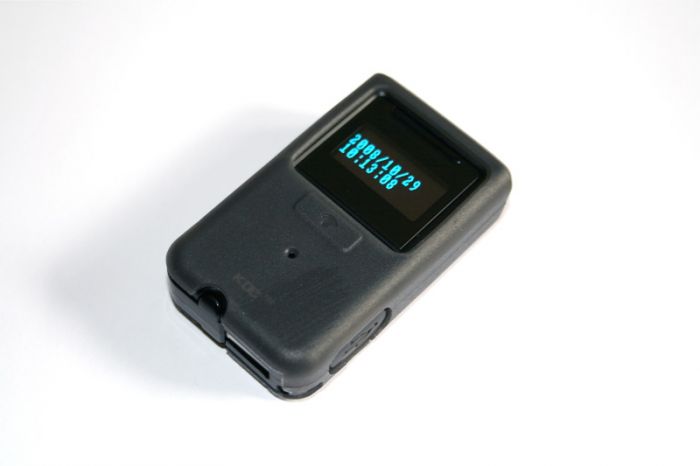

KOAMTAC KDC-100
POSMarket SKU: Z2101
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The KDC100 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. A built-in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port.
Product Overview
- Supports all major one dimensional barcodes
- Superior scanning performance with the top of the line laser scan engine
- Large data memory (Basic 160KB, Optional 4MB)
- Bright OLED display
- Built in swing-out USB connector
- Rechargeable Li-Poly battery with user-accessible compartment for easy replacement
- Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
Product Specifications
| Processor | ARM7 32-bit |
| Development Environment | SDK for PC, Pad and Smartphone application Application generation tool Database lookup feature Inventory management feature |
| Operating Platform | Proprietory |
| Real-Time Clock | Quartz RTC for timestamp |
| Memory | Standard Flash ROM: 160KB Optional 4MB RAM: 64 KB |
| Memory Expansion | N/A |
| Scan Engine | Laser scan Engine, 650nM visible Laser Diode Scan Rate: 100 scan/sec |
| Bar-code Type | Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5 |
| Keyboards | 3 keys total, 2 navigation keys, 1 scan key |
| Audio | Buzzer |
| Display | Bright 1" OLED Display |
| Camera | N/A |
| I/O Ports | Swing out USB type A connector Build in Ultra Mini USB port |
| Radio Options | N/A |
| Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 190mAh |
| Battery Life | N/A |
| Environmental Sealing | N/A |
| Mechanical Shock | Withstands drops from 1.2 m onto concrete with Rubber case |
| ESD Protection | N/A |
| External Dimensions (WxDxH) | 35 x 62 x 15 mm |
| Weight | 38g with Battery |
| Operating Environment | 0 ~ 45°C RH 5-85% non condensing |
| Storage Environment | -20 ~ 45°C RH 5-85% non condensing |
| Product Compliance | C-Tick, CE, FCC, MIC, IEC 60825-1 Class 2, FDA CDRH Class II |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 310150 | KDC-100M Batch Data Collector with Laser Scanner & Extra memory | $381.43 | Add to Cart | |
| 201050 | KDC-100 Batch Data Collector with Laser Scanner | $254.38 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| KOAMTAC Battery for KDC Range | Spare batteries for Koamtac's KDC range of barcode scanners. | $49.34 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
KDC-100 brochure | 127KB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Contact our Team
Warehouse Locations
NSW
- Huntingwood 2148
- Rosehill 2142
- Rydalmere 2116
QLD
- Acacia Ridge 4110
- Tingalpa 4173
VIC
- Box Hill 3128
WA
- Burswood 6100
Related Products
Opticon OPN-2001
Barcode Scanners > Batch
Opticon OPL9723
Barcode Scanners > Batch

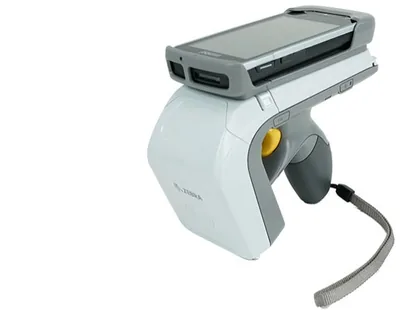

Zebra RFD8500i
