POSMarket SKU: Z1864
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

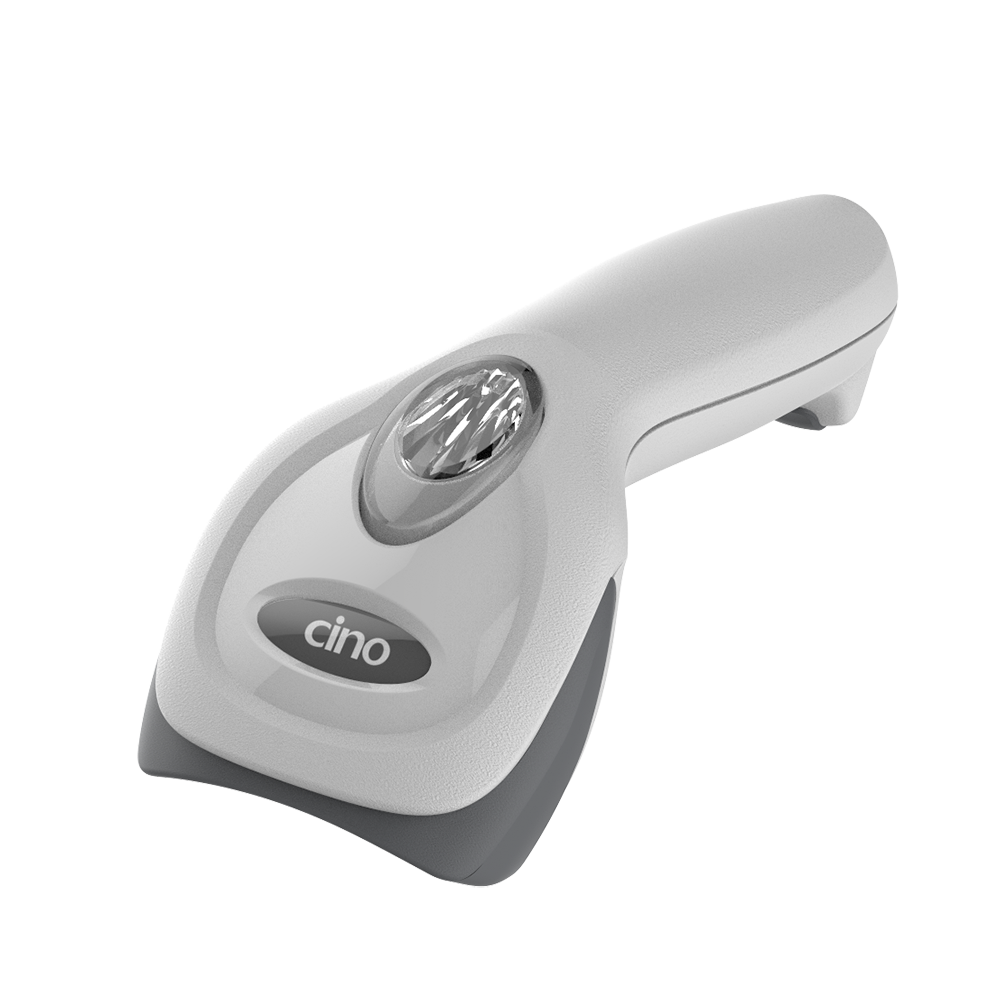

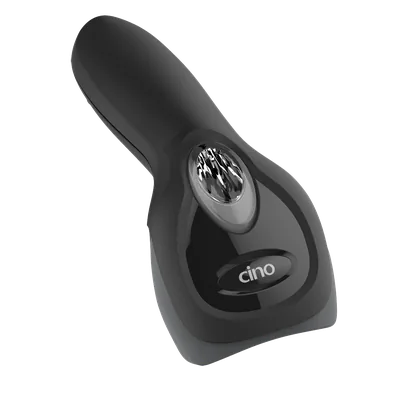

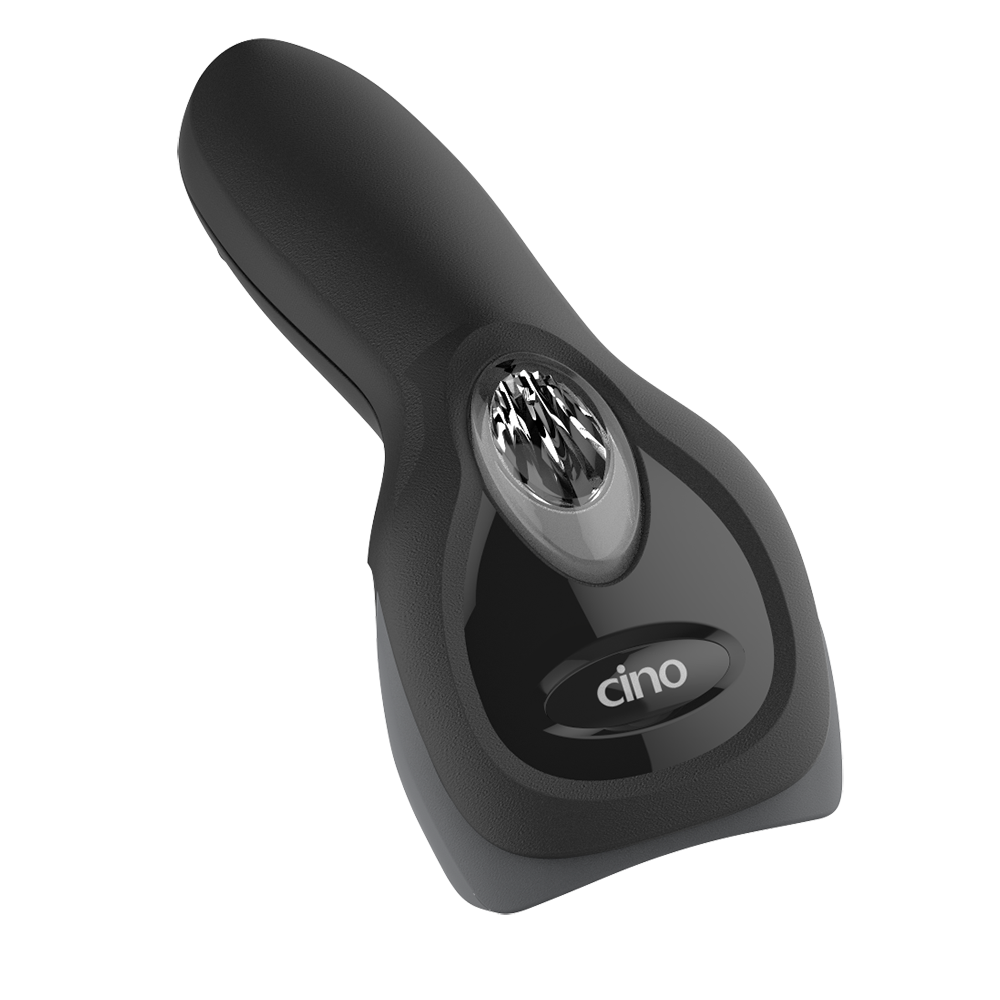

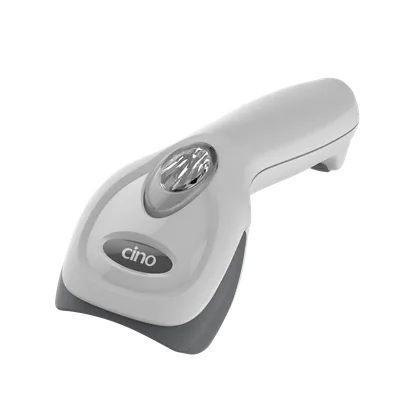

Linear handheld imager designed for performance and affordability.
| Scan Engine | High performance Linear Imaging Engine |
| Light Source | 630nm Visible Red LED |
| Scan Pattern | Single Line |
| Scan Rate | Dynamic scanning rate up to 500 Scan/sec |
| Contrast Ratio | 30% minimum reflective difference |
| Resolution | Typical 0.1mm(4mils) Code39, PCS 0.9 |
| Depth of field | 0-250 mm on 100% UPC/EAN symbols |
| Symbologies supported | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
| Programming Method | Bar code command Windows Utility - Fuzzyscan Powertool Condensed Data Wizard via bar code command Full featured Data Wizard via Fuzzyscan Powertool |
| Indicators/Controls | LED indication Programmable Beeper Optional Vibrator (special order with MOQ) |
| Operating Modes | Toggle, Trigger, Force, Level, Flash, Diagnostics, Alternative, Low Power, Presentation |
| Communication Type | Corded |
| Interfaces | PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port |
| Supply Voltage | DC +5V 10% |
| Power Consumption | Operating: Typical 180 mA Standby: Typical 80 mA |
| Drop Specification | withstands multiple 1.5m drops to concrete |
| Environmental Sealing | IP41 |
| Operating Environment | -10 to 50 C RH 5% ~ 95% non condensing |
| Storage Environment | -40 to 70 C RH 5% ~ 95% non condensing |
| External Dimensions (WxDxH) | 164.9 x 64.6 x 38.5 mm |
| Weight | 105 g (cable not included) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| GPHS56001000K07 | F-560 Scanner, Serial Interface and Stand, Black | $149.88 | Add to Cart | |
| GPHS56001000K05 | F-560 Scanner, USB Interface and Stand, Black | $136.13 | Add to Cart | |
| GPHS56001000K01 | F-560 Scanner, USB interface | $108.63 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Cino AMCBA105700DAR0 | Serial Cable DB9F for Cino FBC4360760. Requires Power Supply | $36.30 | View Product |
| Cino AMCBA105600DAR0 | PS2 Cable for Cino Scanners - F560 F790WD FBC460 FBC780 FBC780BT FBC790BT | $36.30 | View Product |
| Cino AMCBA105500DAR0 | USB Cable for Cino scanners - F560 F790WD FBC460 FBC780 FBC780BT FBC790BT | $33.00 | View Product |
| Cino GWAC0US0040DBR0 Universal Stand for F780 | Universal AutoSense Handsfree Stand for Cino F560 F790 FBC760 FBC780 scanners. Black | $47.69 | View Product |
| Goodson Plug Pack | Optional PSU - Power Supply Unit (Plug pack) | $32.84 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
F560 brochure | 170KB | Download |
|
FuzzyScan Programming Manual | 1MB | Download |
