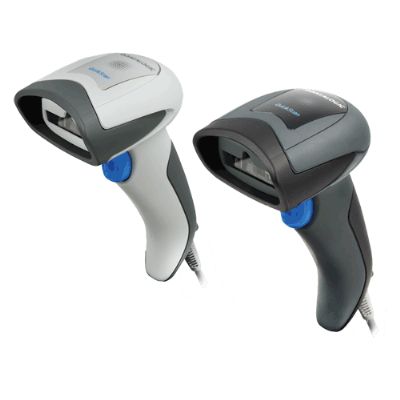

Datalogic QD2131

$145.48 (incl. GST)

POSMarket SKU: Z2069

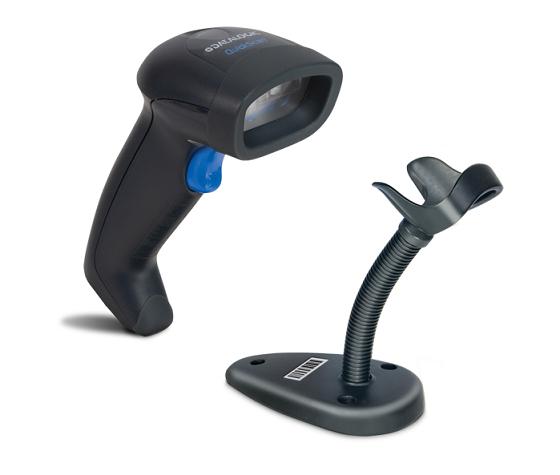

QD2131-BKK1S: QD2131 Scanner. USB Interface, Includes Stand, Black

Datalogic has released the new upgraded QuickScan QD2131 linear imager with an enhanced decoding algorithm enabling the imager to capture and decode 1D bar codes more quickly. The QD2131 linear imager has an extra-wide field of view and an extra-long scan line, allowing users to read longer 1D bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications. The QD2131 imager also supports the Remote Management functions using the Host Download application.

Product Rating
Product Overview
  • Handheld Linear Imager Scanner
  • Extended reading range and depth of field (DOF)
  • Extra-wide scan angle and extra-long scan line
  • Sharp and highly visible scan line
  • Light weight and balanced design
  • Snappy reading performance
  • Reads bar codes from mobile devices or computer screens
  • Datalogic's patented 'Green Spot' technology for good-read feedback
Product Specifications
Scan EngineLinear Imager
Light SourceRed LED 610 - 650 nm
Scan PatternSingle Line
Scan Rate400 reads/sec
Motion ToleranceN/A
Contrast RatioMinimum 25%
Resolution0.102 mm / 4 mils (Linear Barcodes)
Depth of fieldCode 39 4 mils - 4.3 to 18.0 cm
Code 39 5 mils - 2.0 to 18.0 cm
Code 39 7.5 mils - 2.0 to 30.0 cm
Code 39 10 mils - 2.0 to 44.0 cm
EAN 13 mils - 2.0 to 58.0 cm
Code 39 20 mils - 2.5 to 75.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle+/- 45°
Pitch Angle+/- 65°
Skew Angle+/- 70°
Ambient Light Immunity0 to120,000 Lux
Symbologies supported1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming MethodAutomatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin: Windows configuration program
Driver availableJavaPOS, OPOS Utilities
Indicators/ControlsBeeper (Adjustable Tone and Volume)
Datalogic's "Green Spot" Good read feedback
Good read LED
Operating ModesTrigger
Communication TypeCabled
InterfacesUSB, Keyboard Wedge, Wand & RS232 Multi Interface
Supply Voltage4.75-14 VDC +/- 10%
Power ConsumptionOperating (Typical): 340 mA @ 5 VDC
Standby/Idle (Typical): 190 mA @ 5 VDC
Drop SpecificationDesigned to withstand repeated 1.5m drops to concrete
Environmental SealingIP42
ESD Protection+/- 16 kV air discharge
Operating Environment0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment-40° ~ 70°C, Relative Humidity 5 - 95% none condensing
EMC/Safety StandardsThe product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
LED Classification: IEC 60825-1 Class 1 LED Product
External Dimensions (WxDxH)Scanner: 41 x 91 x 163 mm
WeightScanner 150 g
ModelDescriptionPriceStock
QD2131-BKK1S QD2131 Scanner. USB Interface, Includes Stand, Black $145.48
10+
 Add to Cart
ModelDescriptionPrices From
Datalogic 5.2V Power Supply 5.2V 650 mA Power Supply for Gryphon Magellan and Quickscan scanners $52.75 View Product
Datalogic CAB-365 IBM PS 2 - KBW Coiled Cable for GBT4100 GBT4400 GM4130 GM4430 QD2100 QD2131 QD2300 QD2400 $34.53 View Product
Datalogic CAB-321 PS2 Straight cable for GD4100 GD4300 GD432P GD4400 GD4500 GM4130 GM4430 D130 M130 QD2100 QD2131 QD2300 QD2400 QM2100 TD65 TOUCH65 $20.87 View Product
Goodson AD5VR10N Plug Pack 5V 1.0A Centre Negative 2.1mm Jack $32.84 View Product
Datalogic Ease Of Care Qd24xx 5 Day 3 Year Ease Of Care Qd24xx 5 Day 3 Year $16.45 View Product
Datalogic 90ACC0287 PSU 5V $34.16 View Product
Datalogic Cable USB A TPUW Str 2m white Cable, USB, Type A, TPUW, Straight, 2M, White $31.63 View Product
Datalogic USB, Type A straight Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified) $22.77 View Product
Datalogic CAB350 RS232 STR PWR P9 Fem Grey CAB350 RS232 STR PWR P9 Fem Grey $26.57 View Product
Datalogic Gooseneck Stand Bl Quickscan Datalogic Gooseneck Stand - Bar code scanner stand - black - for QuickScan I QD2430 (STD-QD24-BK) $26.31 View Product
Datalogic Cab-350 Straight Power P9 and RPE RS232 Straight Cable, Powered and Pin 9. $24.54 View Product
Datalogic CAB-363 RS232 Coiled DB25M Datalogic CAB-434 RS232 9-PIN Female Coiled Cable, 8 ft, POT, SK $34.53 View Product
Datalogic Gooseneck stand for Quickscan 2400 Stand, Datalogic QuickScan 2131 Series, Gooseneck, Black $29.10 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Datalogic QD2131 Brochure 1MB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
