POSMarket SKU: Z2075
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

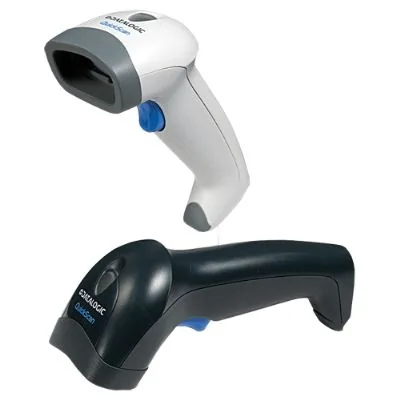

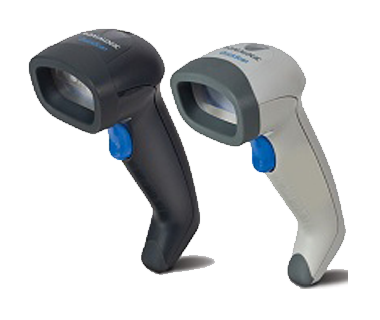

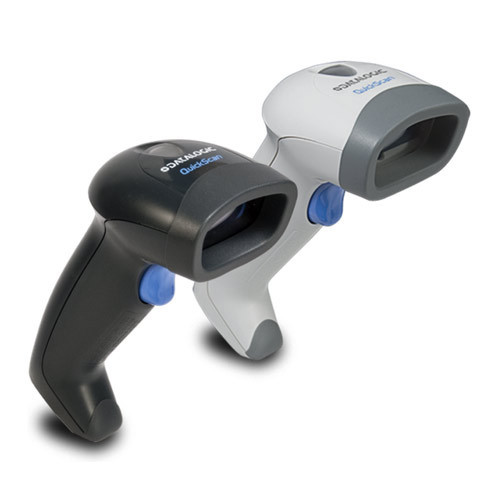

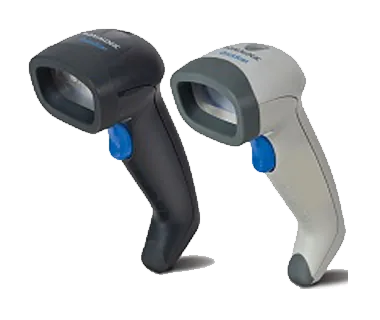

The Datalogic QuickScan L bar code reader is a bar code scanner with laser technology at an affordable price. The QuickScan L reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read bar codes at nominal distances.
| Scan Engine | Laser |
| Light Source | 650 nm VLD |
| Scan Pattern | Single Line |
| Scan Rate | 100 reads/sec |
| Motion Tolerance | N/A |
| Contrast Ratio | Minimum 30% |
| Resolution | 0.130 mm / 5 mils (Linear Barcodes) |
| Depth of field | 5 mils - 2.0 to 13.0 cm 7.5 mils - 1.0 to 20.0 cm 10 mils - 0.5 to 22.0 cm 13 mils - 0.5 to 24.5 cm 20 mils - 3.0 to 27.0 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | +/- 30 deg |
| Pitch Angle | +/- 65 deg |
| Skew Angle | +/- 60 deg |
| Ambient Light Immunity | 0 to 64,575 Lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes & China Post |
| Programming Method | Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Beeper (Adjustable Tone) Good read LED |
| Operating Modes | Trigger |
| Communication Type | Cabled |
| Interfaces | USB, Keyboard Wedge, Wand and RS232 Multi Interface |
| Supply Voltage | 5 VDC +/- 10% |
| Power Consumption | Operating (Typical): 100 mA @ 5 VDC Standby/Idle (Typical): <35 mA @ 5 VDC |
| Drop Specification | Designed to withstand repeated 1.5m drops to concrete |
| Environmental Sealing | IP42 |
| ESD Protection | +/- 20 kV air discharge |
| Operating Environment | 0 deg - 50 deg C, Relative Humidity 5 - 95% none condensing |
| Storage Environment | -40 deg - 70 deg C, Relative Humidity 5 - 95% none condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS & China RoHS Caution Laser Radiation - Do not stare into beam; EN 60825-1 Class 2; IEC 60825-1 Class 2 |
| External Dimensions (WxDxH) | Scanner: 66 x 71 x 170 mm |
| Weight | Scanner 127.6 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DLQD2330BKIT-R | QD2330 Scanner. Serial (RS232) Interface, includes stand, Black | $135.80 | Add to Cart | |
| QD2330-BKK1S | QD2330 Scanner. USB Interface, includes stand, Black | $CALL | ||
| DLQD2330B-K | QD2330 Scanner. PS/2 (Keyboard wedge) Interface, Black | $CALL | ||
| DLQD2330BKIT-K | QD2330 Scanner. PS/2 (Keyboard wedge) Interface, includes stand, Black | $CALL | ||
| DLQD2330B-R | QD2330 Scanner. Serial (RS232) Interface, Black | $CALL | ||
| DLQD2330B | QD2330 Scanner. Scanner only (no interface cable), Black | $CALL | ||
| QD2330-BKK1 | QD2330 Scanner. USB Interface, Black | $CALL | ||
| DLQD2330-K | QD2330 Scanner. PS/2 (Keyboard wedge) Interface, White | $CALL | ||
| DLQD2330KIT-K | QD2330 Scanner. PS/2 (Keyboard wedge) Interface, includes stand, White | $CALL | ||
| DLQD2330-R | QD2330 Scanner. Serial (RS232) Interface, White | $CALL | ||
| DLQD2330KIT-R | QD2330 Scanner. Serial (RS232) Interface, includes stand, White | $CALL | ||
| DLQD2330 | QD2330 Scanner. Scanner only (no interface cable), White | $CALL | ||
| DLQD2330-U | QD2330 Scanner. USB Interface, White | $CALL | ||
| QD2330-WHK1S | QD2330 Scanner. USB Interface, includes stand, White | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Datalogic 5.2V Power Supply | 5.2V 650 mA Power Supply for Gryphon Magellan and Quickscan scanners | $52.75 | View Product |
| Datalogic CAB-365 | IBM PS 2 - KBW Coiled Cable for GBT4100 GBT4400 GM4130 GM4430 QD2100 QD2131 QD2300 QD2400 | $34.53 | View Product |
| Datalogic CAB-321 | PS2 Straight cable for GD4100 GD4300 GD432P GD4400 GD4500 GM4130 GM4430 D130 M130 QD2100 QD2131 QD2300 QD2400 QM2100 TD65 TOUCH65 | $20.87 | View Product |
| Datalogic 90ACC0287 | PSU 5V | $34.16 | View Product |
| Datalogic Gooseneck Stand Bl Quickscan | Datalogic Gooseneck Stand - Bar code scanner stand - black - for QuickScan I QD2430 (STD-QD24-BK) | $26.31 | View Product |
| Datalogic Cab-350 Straight Power P9 and RPE | RS232 Straight Cable, Powered and Pin 9. | $24.54 | View Product |
| Datalogic CAB-363 RS232 Coiled DB25M | Datalogic CAB-434 RS232 9-PIN Female Coiled Cable, 8 ft, POT, SK | $34.53 | View Product |
| Datalogic Gooseneck stand for Quickscan 2400 | Stand, Datalogic QuickScan 2131 Series, Gooseneck, Black | $29.10 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Datalogic QD2300 brochure | 416KB | Download |
|
Datalogic QD2300 Product Reference Guide | 3MB | Download |
